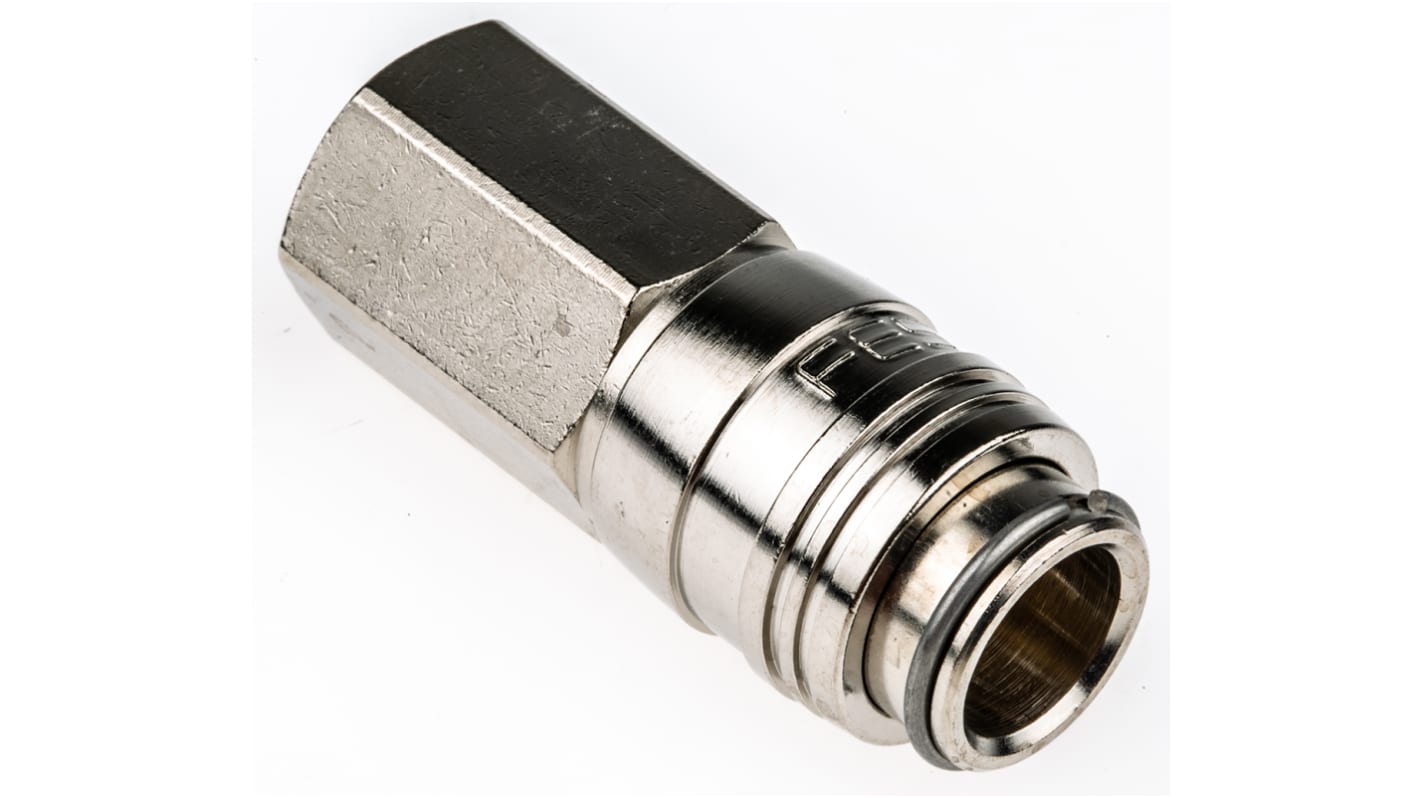

Festo Brass Pneumatic Quick Connect Coupling, 1/8 in Female G
- RS-stocknr.:
- 181-6155
- Fabrikantnummer:
- KD3-1/8-I
- Fabrikant:
- Festo
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 14,12
(excl. BTW)
€ 17,09
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 34 stuk(s) klaar voor verzending
- 34 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 14,12 |
| 5 - 9 | € 13,57 |
| 10 + | € 13,21 |
*prijsindicatie
- RS-stocknr.:
- 181-6155
- Fabrikantnummer:
- KD3-1/8-I
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Standard | G | |
| Thread Size | 1/8 in | |
| Series | KD3 | |
| Material | Brass | |
| Thread Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Pressure | 12 bar | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Finish | Nickel Plated | |
| Model Number | 531627 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Standard G | ||
Thread Size 1/8 in | ||
Series KD3 | ||
Material Brass | ||
Thread Gender Female | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 12 bar | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Finish Nickel Plated | ||
Model Number 531627 | ||
- Land van herkomst:
- DE
Festo Pneumatic Quick Connect Coupling, Female, -0.95 to 12 Bar Operating Pressure Range - KD3-1/8-I
This coupling from Festo lets you make quick and secure connections between your air hoses and equipment. Its nickel-plated brass body and releasing sleeve are durable and can withstand corrosion, making this unit suitable for long-term use in harsh industrial environments. The threaded design makes it easy to install and eliminates the need for complex tooling, saving you time and effort. With a flow rate of up to 558l/min, this is a practical choice for high-speed air transmission.
• Wide operating temperature range of -10°C to +60°C for use in demanding conditions
• Light weight of 32g for convenient handling during installation
• Allows for lubricated operation to reduce friction for optimal performance
• Operating pressure range of -0.95 to 12 bar for versatile use in both light-duty and heavy-duty applications
Applications
• Medical and dental equipment
• Assembly lines
• Automotive plants
How do I install this coupling?
To install this coupling, simply push it into a socket and fasten it till you hear a click sound that indicates it's in the correct position. Disconnection is equally simple – just slide back the releasing sleeve.
