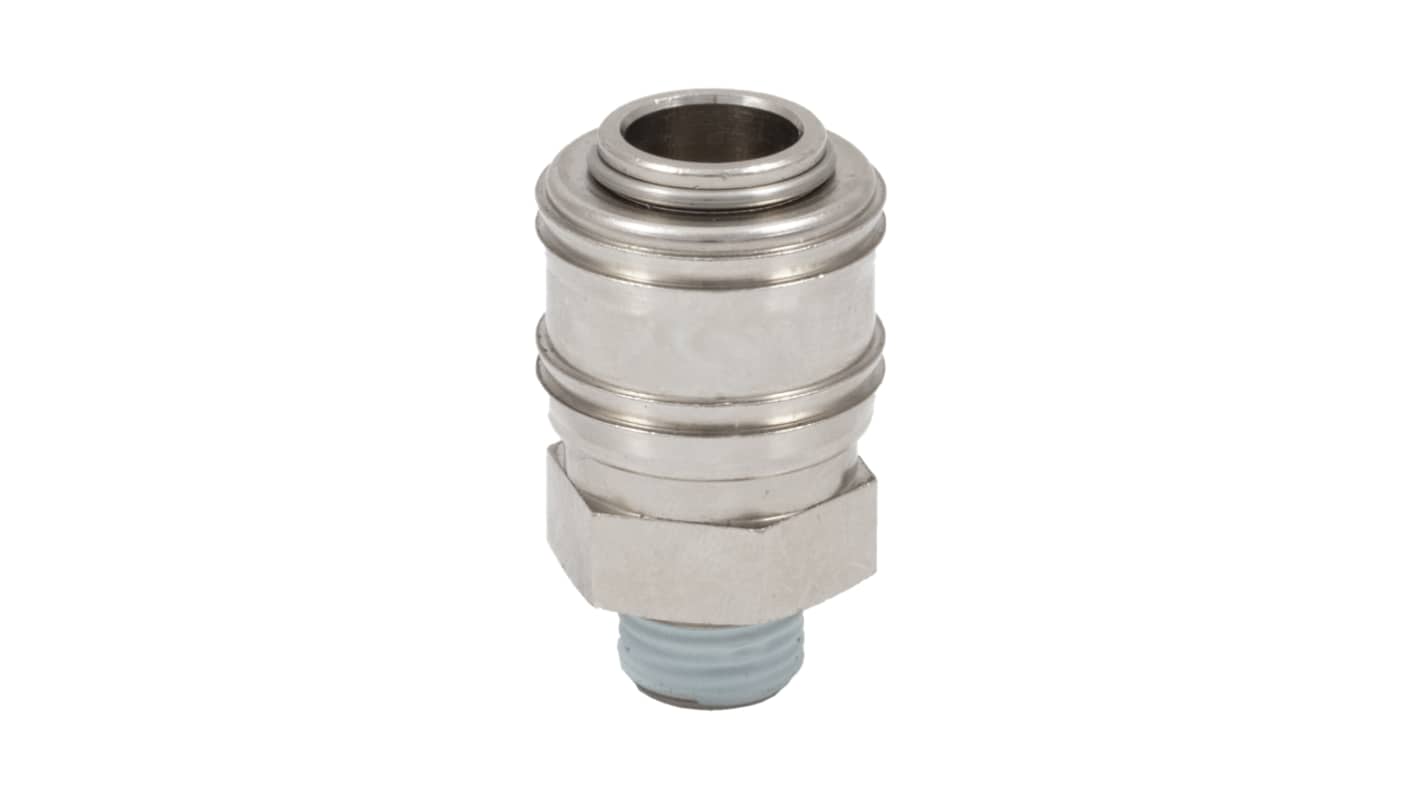

RS PRO Brass Male Pneumatic Quick Connect Coupling, G 3/8 Male Threaded
- RS-stocknr.:
- 667-1998
- Fabrikant:
- RS PRO
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 21-05-2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk
€ 12,26
(excl. BTW)
€ 14,83
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 12,26 |
| 5 - 9 | € 11,88 |
| 10 + | € 11,51 |
- RS-stocknr.:
- 667-1998
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en compliance
- Land van herkomst:
- TR
Productomschrijving
Series 25 & 26 Connectors
Flow rate at 6 bar:
For Series 25 1800 l/min
For series 26 1000 l/min
For Series 25 1800 l/min
For series 26 1000 l/min
Series 25 & 26 Connectors
Both Series 25 and 26 are 7,2 - 7,4 EuroStandards pattern.
Ideal for medium sized air tool connections, mains supply outlets and small machinery air feeds
Very high flow capacity with low pressure drop characteristics for maximum energy cost savings
One hand operation
Suitable for use with compressed air, water or any fluid compatible with constituent materials
Interchangeable with Cejn 320, Rectus 25 series
Very high flow capacity with low pressure drop characteristics for maximum energy cost savings
One hand operation
Suitable for use with compressed air, water or any fluid compatible with constituent materials
Interchangeable with Cejn 320, Rectus 25 series
Specificaties
Kenmerk | Waarde |
|---|---|
| Threaded Connection | G 3/8 Male |
| Coupling Gender | Male |
| Connection Standard | CEJN 320, JWL 520, JWL 530, Parker PE, Rectus 25, Rectus 26, TST 025 |
| Thread Size | 3/8in |
| Manufacturer Series | 26 |
| Connection Type | Threaded |
| Material | Brass |
| Thread Gender | Male |
| Thread Standard | G |
| Maximum Operating Pressure | 35bar |
| Finish | Nickel Plated |
| Seal Material | Nitrile Rubber |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +100°C |
