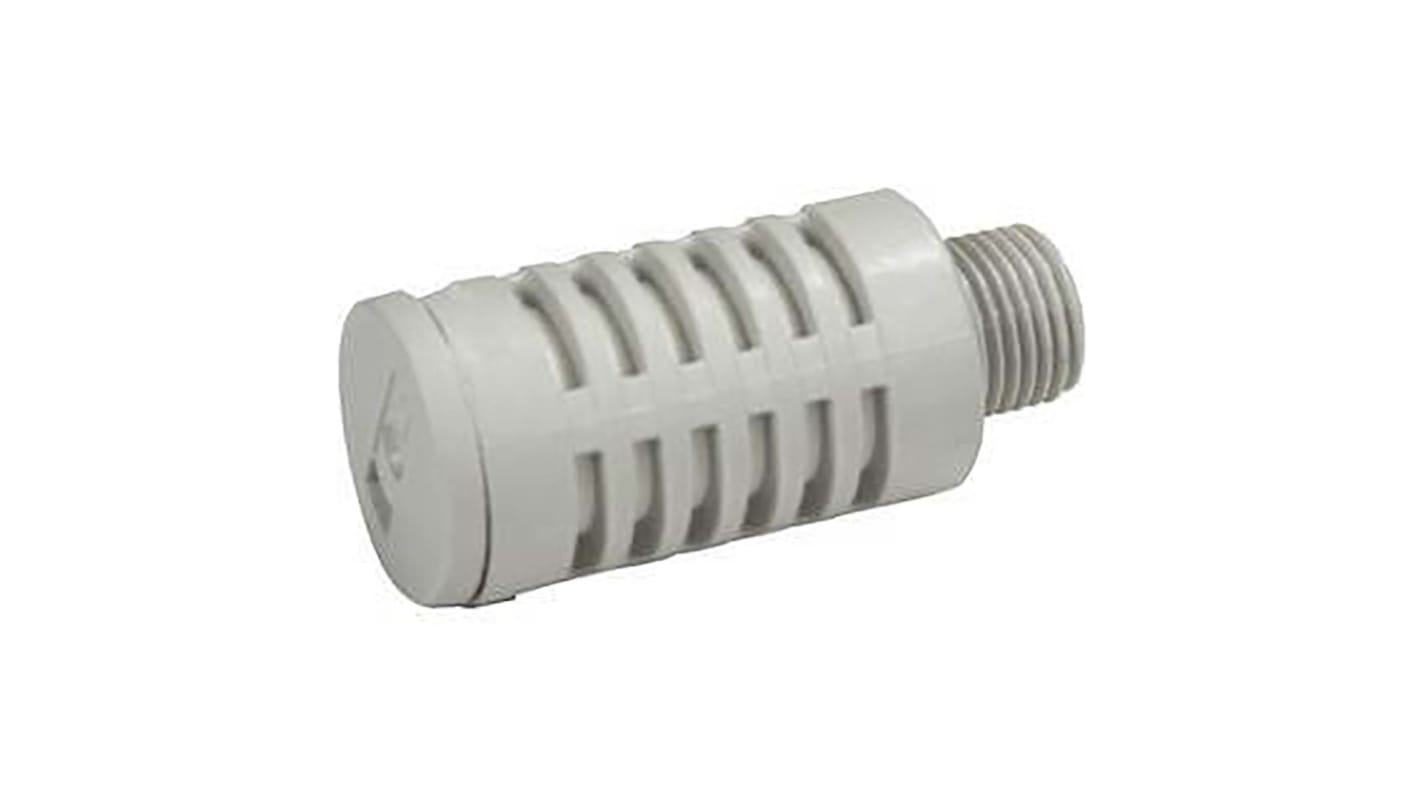

SMC ANB1 Polybutylene Terephthalate Pneumatic Silencer 1 MPa Threaded R
- RS-stocknr.:
- 196-4407
- Artikelnummer Distrelec:
- 304-22-144
- Fabrikantnummer:
- ANB1-02
- Fabrikant:
- SMC
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 10,68
(excl. BTW)
€ 12,92
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 24 stuk(s) klaar voor verzending
- 28 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 10,68 |
| 5 - 9 | € 10,24 |
| 10 - 24 | € 10,03 |
| 25 + | € 9,83 |
*prijsindicatie
- RS-stocknr.:
- 196-4407
- Artikelnummer Distrelec:
- 304-22-144
- Fabrikantnummer:
- ANB1-02
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Pneumatic Silencer | |
| Connection Size | 1/4 in R | |
| Material | Polybutylene Terephthalate | |
| Series | ANB1 | |
| Thread Standard | R | |
| Connection Type | Threaded | |
| Noise Reduction | 38dB | |
| Overall Length | 81mm | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Pressure | 1 MPa | |
| Maximum Operating Temperature | 60°C | |
| Thread Gender | Male | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Pneumatic Silencer | ||
Connection Size 1/4 in R | ||
Material Polybutylene Terephthalate | ||
Series ANB1 | ||
Thread Standard R | ||
Connection Type Threaded | ||
Noise Reduction 38dB | ||
Overall Length 81mm | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Pressure 1 MPa | ||
Maximum Operating Temperature 60°C | ||
Thread Gender Male | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- JP
The high noise reduction style silencer ANA1 keeps the noise level inside a plant below 85dB(A) with a noise reduction effect of 40dB(A). Series ANB1 has a noise reduction effect of 38dB(A) and has a larger effective area with the same port size as series ANA1. It is also available for common exhaust from manifolds.
