Belden 19401 3 Core Power Cable, Black PVC, 76m

Bekijk alle Power Cable

Subtotaal (1 rol van 76 meter)*

€ 549,08

(excl. BTW)

€ 664,39

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 1 stuk(s) vanaf 29 december 2025
  • Plus verzending 1 stuk(s) vanaf 01 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Rol(len)
Per rol
Per meter*
1 +€ 549,08€ 7,225

*prijsindicatie

RS-stocknr.:
136-6331
Fabrikantnummer:
19401 010250
Fabrikant:
Belden
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Belden

Number of Cores

3

Sheath Colour

Black

Length

76m

Current Rating

10 A

Sheath Material

PVC

Outer Diameter

6.85mm

Voltage Rating

300 V

Conductor Strand Type

Stranded

Number of Strands

42

Conductor Material

Copper

Fire Behaviour

Flame Retardant

Insulation Material

PVC

American Wire Gauge

18 AWG

Series

19401

Core Strands

42/34 AWG

Maximum Operating Temperature

+60°C

Standards Met

CE, CSA

Size of Strands

34 AWG

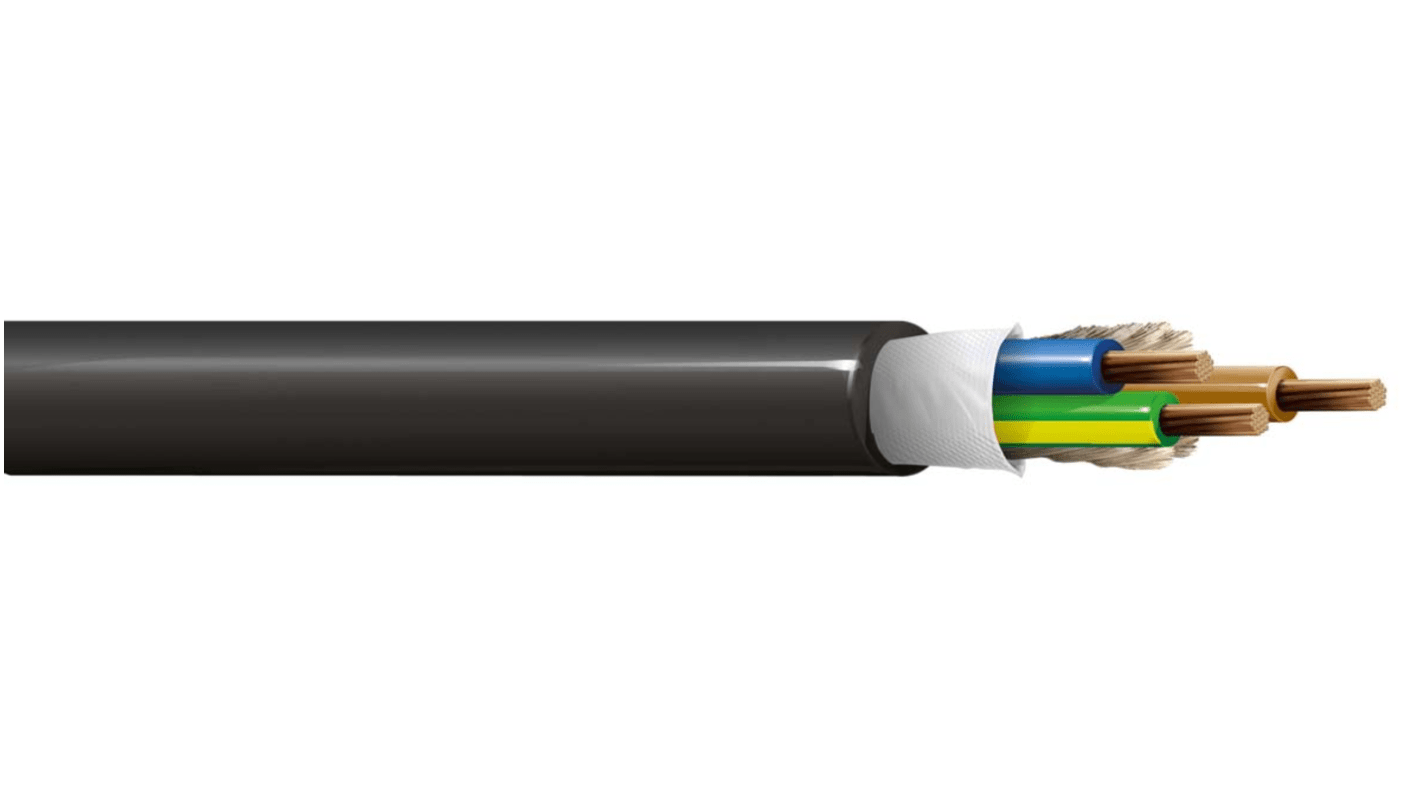

Belden 19401 Portable Cordage - Power Cable - 19401 010250


If you need a reliable and high-performance power cable for harsh industrial areas, try the 19401 portable cordage from Belden.

The 19401 unit is a low-voltage power cable which features 3 bare copper conductors, 18 AWG. It uses PVC insulation to protect the copper wires and guard against electromagnetic interference. This Belden mains cable unit comes in a length of 76m to accommodate a large installation area. It has a maximum operating temperature of +60°C.

Belden power cables are field tested to make sure that they can withstand tough industrial environments and are engineered specifically for optimal longevity with materials that can withstand extremes.

Features and Benefits:


• Voltage rating of 300V
• Black PVC outer jacket which provides high durability
• 63.9 lbs maximum pull tension
• Flexible due to stranded conductors (42x34)

What are power cables used for?


Power cables, also sometimes called mains cables, transmit electrical power to equipment and devices. They can contain one or more wires made of a conductive material such as copper, which carry the current. These cores encased in a sheath to protect the inner wires from the environment.
