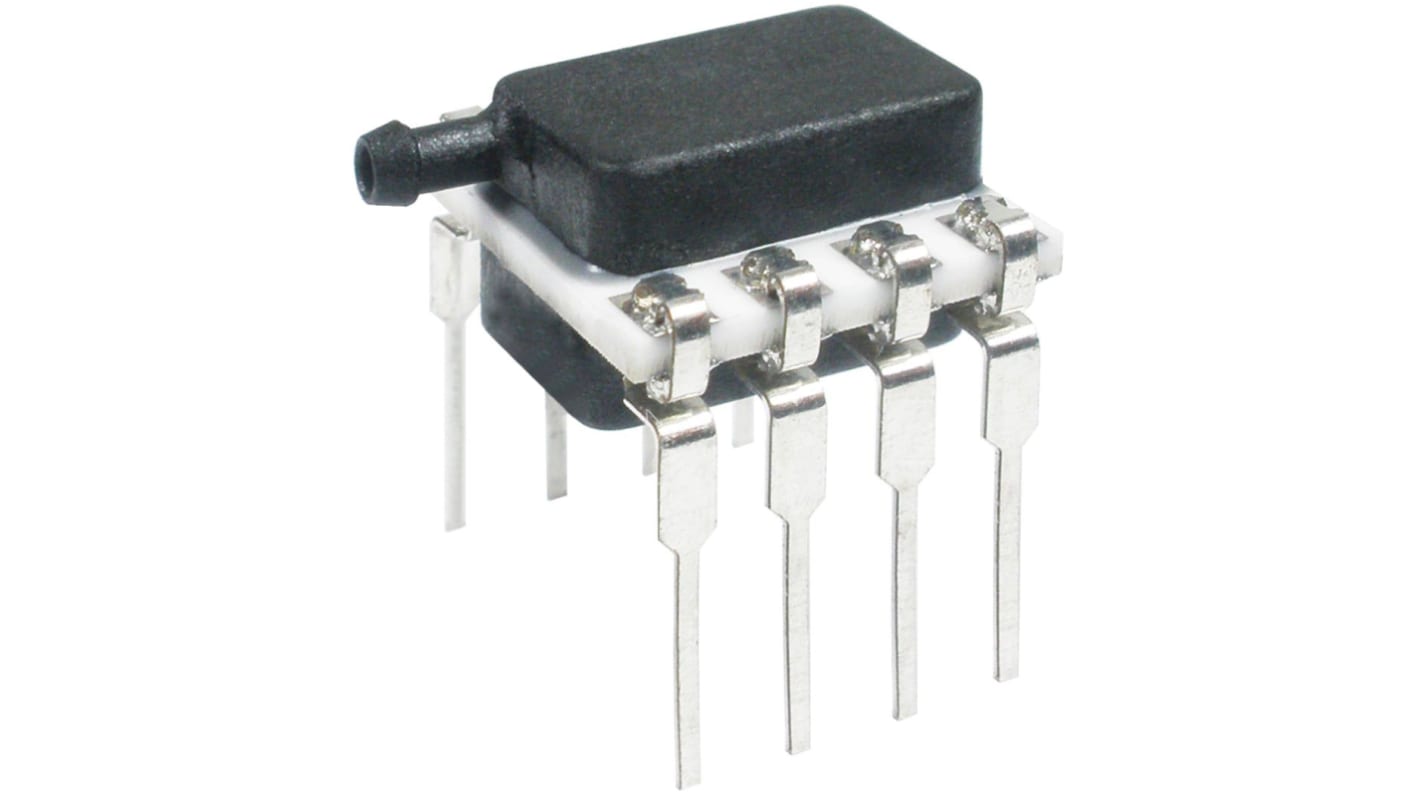

Honeywell Technologies HSCDRNN1.6BASA3 Pressure SensorBoard 8 DIP

RS-stocknr.:: 211-9921
Fabrikantnummer:: HSCDRNN1.6BASA3
Fabrikant:: Honeywell

Honeywell Technologies HSCDRNN1.6BASA3 Pressure SensorBoard 8 DIP

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 50,88

(excl. BTW)

€ 61,56

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 1 stuk(s) vanaf 05 oktober 2026
Plus verzending 100 stuk(s) vanaf 09 november 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 50,88
5 - 9	€ 43,15
10 - 24	€ 40,60
25 - 39	€ 38,06
40 +	€ 37,50

*prijsindicatie

RS-stocknr.:: 211-9921
Fabrikantnummer:: HSCDRNN1.6BASA3
Fabrikant:: Honeywell

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Honeywell
	Maximum Overload Pressure	400kPa
	Product Type	Pressure Sensor
	Sensor Type	Piezoresistive Pressure Sensor
	Mount Type	Board
	Package Type	DIP
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	160 kPa
	Port Type	Single Radial Barbed
	Maximum Supply Voltage	5V
	Accuracy	±0.25 %
	Maximum Operating Temperature	+85°C
	Width	13.3mm
	Series	HSC
	Standards/Approvals	ISO 9001
	Height	13.75mm
	Length	10mm
	Minimum Operating Pressure	0bar
	Minimum Operating Temperature	-20°C
	Automotive Standard	ISO 9001

	Alles selecteren
	Merk Honeywell
	Maximum Overload Pressure 400kPa
	Product Type Pressure Sensor
	Sensor Type Piezoresistive Pressure Sensor
	Mount Type Board
	Package Type DIP
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure 160 kPa
	Port Type Single Radial Barbed
	Maximum Supply Voltage 5V
	Accuracy ±0.25 %
	Maximum Operating Temperature +85°C
	Width 13.3mm
	Series HSC
	Standards/Approvals ISO 9001
	Height 13.75mm
	Length 10mm
	Minimum Operating Pressure 0bar
	Minimum Operating Temperature -20°C
	Automotive Standard ISO 9001

Datasheet - HSCDRNN1.6BASA3

Honeywell HSC Series Absolute Pressure Sensor, 160kPa Maximum Operating Pressure, 3.3V Minimum Supply Voltage - HSCDRNN1.6BASA3

This absolute pressure sensor measures absolute pressure with an internal vacuum reference and provides a ratiometric analogue or digital output for board-mounted systems. It is intended for non-corrosive, non-ionic gases and is calibrated and temperature-compensated to deliver stable readings across its compensated range. The device operates from a single low-voltage supply and is supplied in an 8-pin DIP package suitable for Compact electronic integration.

Features and Benefits:

• ±0.25% accuracy reduces need for customer calibration
• Calibrated and compensated for 0°C to 50°C operation
• Ratiometric analogue or 14-bit digital output simplifies interfacing
• Low power consumption less than 10 mW extends battery life
• 400 kPa safe overload supports higher transient pressures
• Internal ASIC updates analogue at ∼1 kHz and digital at ∼2 kHz

Applications

• Suitable for automotive pressure measurement in control systems
• Used for medical respiratory and ventilator pressure monitoring
• Ideal for HVAC filter and VAV control detection systems
• Can be used for gas flow instrumentation and chromatography
• Suitable for industrial barometry and flow calibration tasks

What supply voltages can it accept?

It operates from a single supply of either 3.3 V or 5.0 V depending on the selected variant.

How does the device manage long-term accuracy?

The sensor uses on-board temperature compensation and ASIC calibration to deliver industry-leading stability and minimal part-to-part variation.

What media are permitted for measurement?

It is designed for non-corrosive, non-ionic gases, liquid-media options are available for specified higher pressure ranges and only on Port 1.

What are the environmental operating limits?

The operating temperature range is -20°C to 85°C and storage may reach -40°C to 85°C.

How is the pressure port configured for integration?

A single radial barbed port mechanical option is available for straightforward tubing connection.
