Quectel EM12GPA-512-SGAS Module B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/

Bekijk alle RF Modules
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
RS-stocknr.:
206-9160
Fabrikantnummer:
EM12GPA-512-SGAS
Fabrikant:
Quectel
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Quectel

Supported Frequency Bands

B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/ B294)/B30/B324)/B66 MHz, B1+B3/B5/B18/B19/B20/B26 MHz, B2+B2 MHz, B2+B4/B5/B12/B13/B14/B17/B29/B30/B66 MHz, B3+B3 MHz, B3+B5/B7/B8/B19/B20/B28 MHz, B4+B4 MHz, B4+B5/B12/B13/B17/B29/B30 MHz, B5+B7/B25/B30/B66 MHz, B7+B7 MHz, B7+B20/B28 MHz, B12+B25/B30 MHz, B13+B66 MHz, B14+B30/B66 MHz, B19+B21 MHz, B20+B32 MHz, B25+B25 MHz, B25+B26/B41 MHz, B29+B30 MHz, B38/B39/B40/B41 MHz, B38+B38 MHz, B39+B39 MHz, B39+B41 MHz, B40+B40 MHz, B41+B41 MHz, B66+B12/B29/B30 MHz, B66+B66 MHz

Land van herkomst:
CN

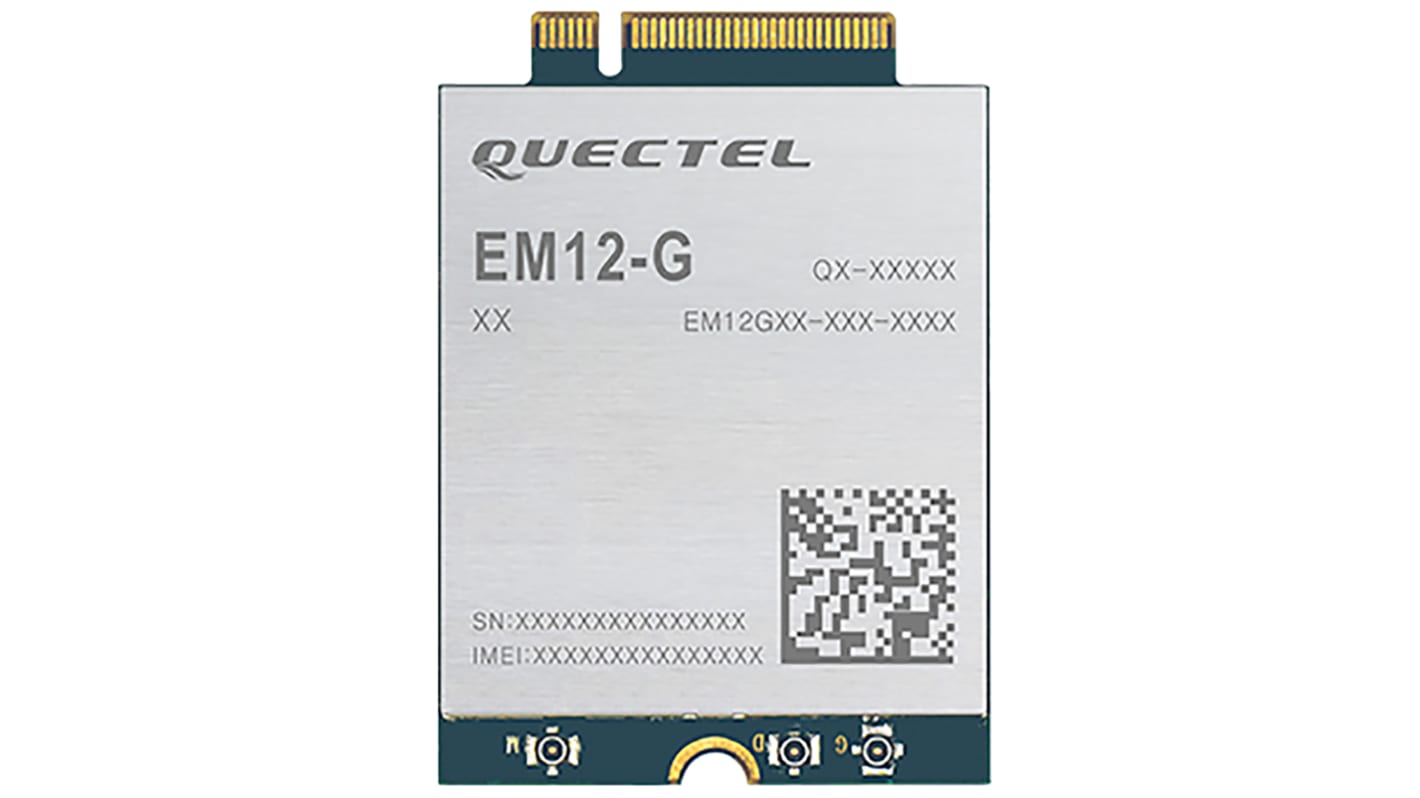

The Quectel EM12-G is LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates. De-signed in the M.2 form factor, EM12 is compatible with Quectel Cat6 module EM06 and future Cat 16 module EM16, which will facilitate customers to migrate between different categories.

LTE-A Cat 12 module with M.2 form factor, optimized for eMBB and IoT applications
Support DL 3x carrier aggregation and 256QAM
