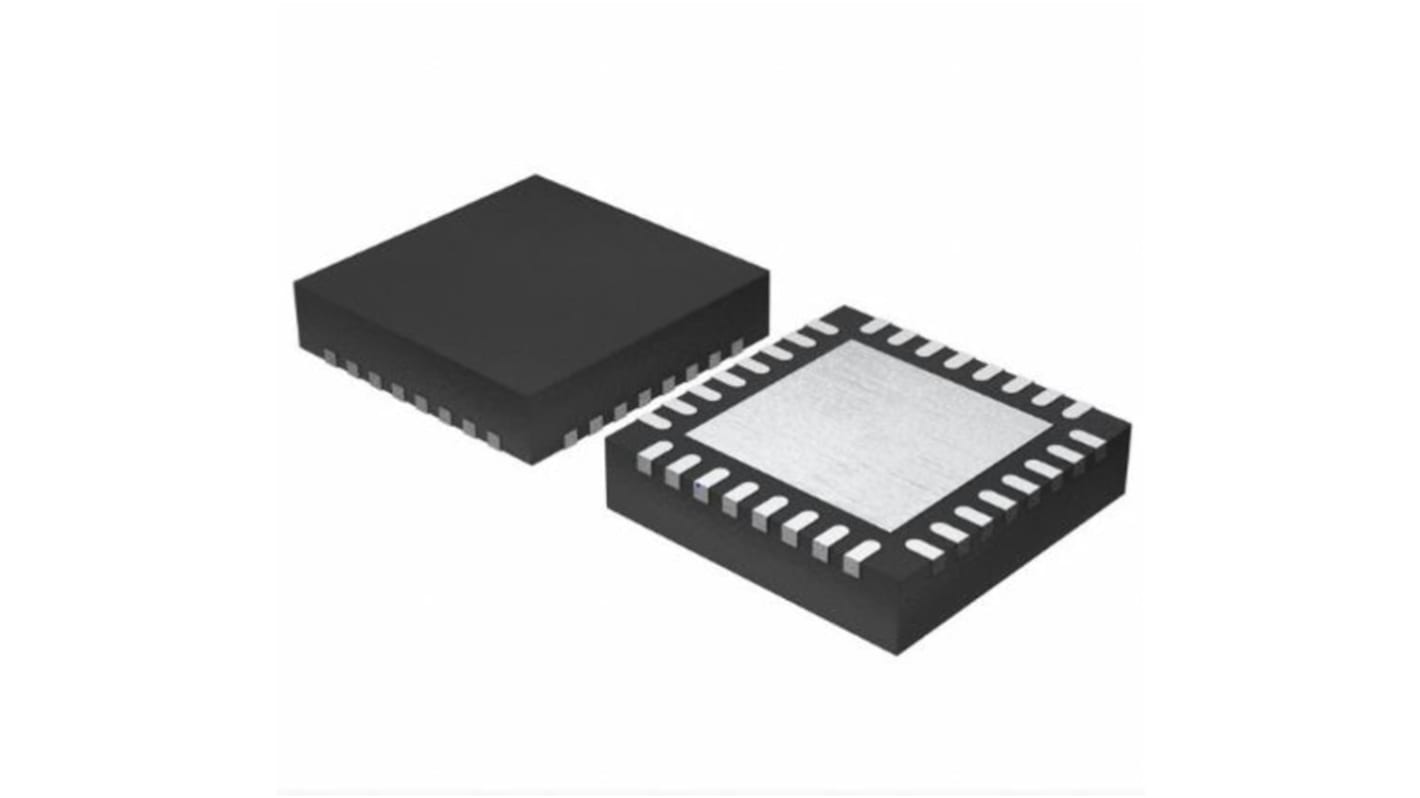

STMicroelectronics ST25R3918-AQWT Transceiver ASK 848 MHz 5.5 V

Bekijk alle RF Modules
Bulkkorting beschikbaar

Subtotaal (1 verpakking van 2 eenheden)*

€ 6,74

(excl. BTW)

€ 8,16

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 03 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
Per verpakking*
2 - 8€ 3,37€ 6,74
10 - 98€ 3,095€ 6,19
100 - 248€ 2,855€ 5,71
250 - 498€ 2,65€ 5,30
500 +€ 2,58€ 5,16

*prijsindicatie

Verpakkingsopties
RS-stocknr.:
228-3021
Fabrikantnummer:
ST25R3918-AQWT
Fabrikant:
STMicroelectronics
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

STMicroelectronics

Sub Type

Transceiver

Component Type

Writer, Reader

Product Type

Transceiver

Modulation Technique

ASK

Maximum RF Data Rate

10Mbps

Frequency

848MHz

Mount Type

Surface

Minimum Supply Voltage

5.5V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Standards/Approvals

No

Length

5mm

Height

0.9mm

Width

5 mm

Series

ST25R3918

The STMicroelectronics ST25R3918 is a multipurpose NFC transceiver supporting NFC reader, passive peer to peer functionality and NFC card emulation mode. This IC is optimized for IOT and other consumer or industrial applications where excellent analog performance is required. The ST25R3918 is also optimized to achieve good read ranges with low output power, even under noisy and harsh environments, using noise reduction receiver technology.

Dynamic power output (DPO) controls the

field strength to stay within given limits

Active wave shaping (AWS) reduces overand

under-shoots

Noise suppression receiver (NSR) allows

reception in noisy environment

Automatic gain control and squelch feature

to maximize SNR

Low power inductive card detection

Low power NFC passive target modes

Adjustable ASK modulation depth, from 5

to 40%

Integrated regulators to boost system

PSRR
