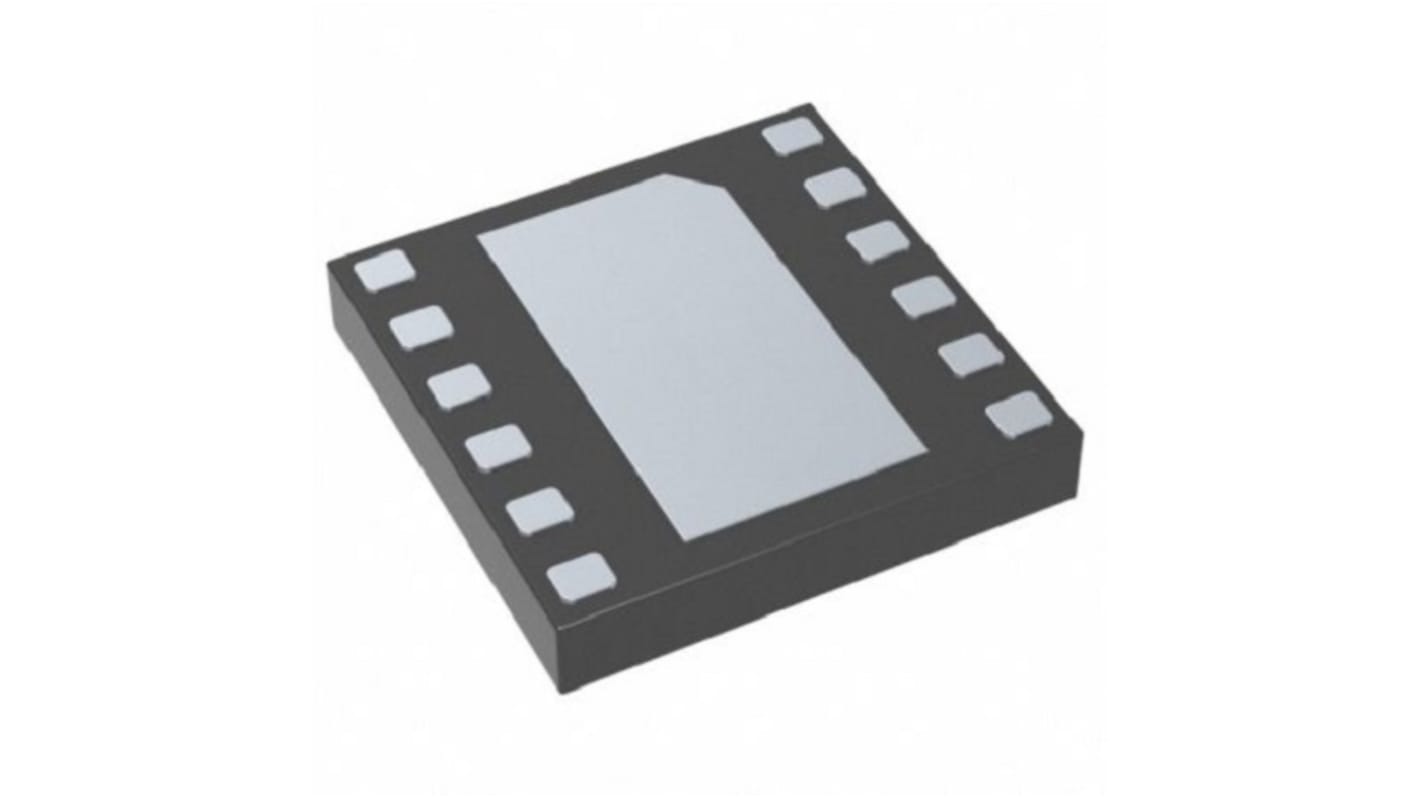

STMicroelectronics RFID Tag ASK 423 kHz 5.5 V

Bekijk alle RF Modules
Bulkkorting beschikbaar

Subtotaal (1 rol van 5000 eenheden)*

€ 3.145,00

(excl. BTW)

€ 3.805,00

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 12 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
Per rol*
5000 - 5000€ 0,629€ 3.145,00
10000 +€ 0,598€ 2.990,00

*prijsindicatie

RS-stocknr.:
248-5845
Fabrikantnummer:
ST25DV04KC-JF6L3
Fabrikant:
STMicroelectronics
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

STMicroelectronics

Sub Type

RF Module

Component Type

Tag

Product Type

RFID Tag

Modulation Technique

ASK

Maximum RF Data Rate

0.053Mbps

Frequency

423kHz

Mount Type

Surface

Minimum Supply Voltage

1.8V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

ST25DV

Standards/Approvals

RoHS, ISO/IEC 15693

The STMicroelectronics product is a NFC RFID tag that offers 4 Kbit of electrically erasable programmable memory EEPROM. The ST25DV04KC offers two interfaces. The first one is an I2C serial link and can be operated from a DC power supply. The second one is an RF link activated when the ST25DV04KC act as a contactless memory powered by the received carrier electromagnetic wave. In I2C mode user memories contain up to 512 bytes, which could be split in 4 flexible and protectable areas.

Single supply voltage is 1.8 V to 5.5 V

Multiple byte write programming

Configurable I²C slave address

NFC Forum Type 5 tag certified by the NFC Forum

Fast data transfer between I²C and RF interfaces

Half duplex 256 bytes dedicated buffer

Analog output pin to power external components
