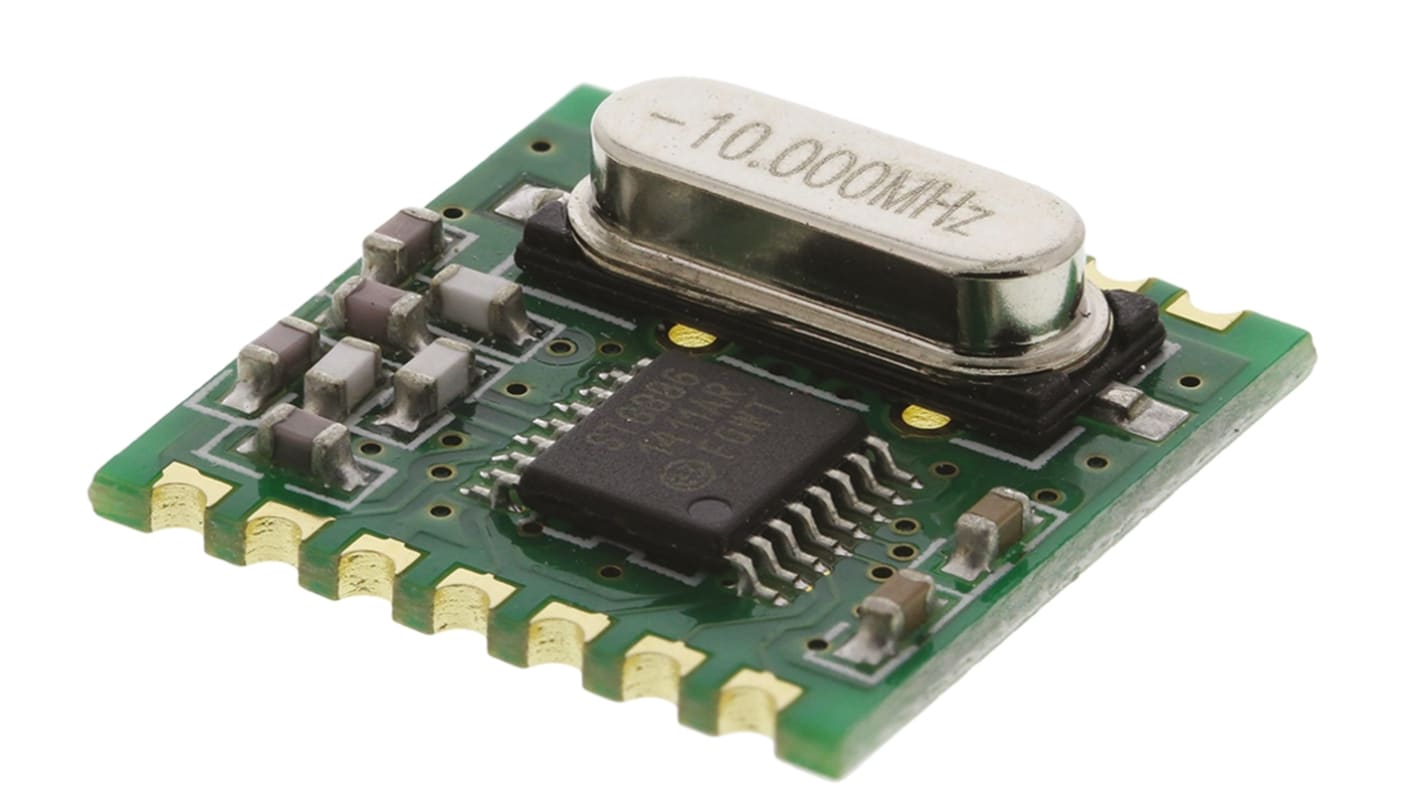

RF Solutions ALPHA-TRX433S Module 433MHz, 2.2 → 3.8V
- RS-stocknr.:
- 666-6757
- Fabrikantnummer:
- ALPHA-TRX433S
- Fabrikant:
- RF Solutions
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
Alternatief
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor een alternatief product.
Per stuk
€ 10,91
(excl. BTW)
€ 13,20
(incl. BTW)
- RS-stocknr.:
- 666-6757
- Fabrikantnummer:
- ALPHA-TRX433S
- Fabrikant:
- RF Solutions
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RF Solutions | |
| Component Type | Module | |
| Supported Frequency Bands | 433MHz | |
| Modulation Technique | FM | |
| Maximum RF Data Rate | 115.2kbit/s | |
| Maximum Output Power | +25dBm | |
| Supported Bus Interfaces | SPI | |
| Supply Voltage | 2.2 → 3.8V | |
| Dimensions | 16.1 x 15.9 x 4.2mm | |
| Height | 4.2mm | |
| Length | 16.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 15.9mm | |
| Alles selecteren | ||
|---|---|---|
Merk RF Solutions | ||
Component Type Module | ||
Supported Frequency Bands 433MHz | ||
Modulation Technique FM | ||
Maximum RF Data Rate 115.2kbit/s | ||
Maximum Output Power +25dBm | ||
Supported Bus Interfaces SPI | ||
Supply Voltage 2.2 → 3.8V | ||
Dimensions 16.1 x 15.9 x 4.2mm | ||
Height 4.2mm | ||
Length 16.1mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 15.9mm | ||
- Land van herkomst:
- CN
ALPHA 433MHz Transmitter & Receiver Modules
This ALPHA range of radio data modules consists of transmitters, receivers and transceivers operating in the 433 ISM frequency band.
RF Carrier Frequency range: 430.24 to 439.75MHz ISM Band
Transmitter Output Power: up to +7dBm
Receiver Sensitivity: -109dBm @1200bps, BER = 0.1%
Modulation: FSK, OOK
High resolution PLL with 2.5KHz step
Programmable frequency deviation (from 30kHz to 210kHz, step 30kHz)
Max data rate: 115.2kbps with internal digital filters
SPI port for setup
Clock and reset signal output for external MCU use
Wake-up timer
Low-battery detection
Power supply: +2.2 to +5.4Vdc
Stand-by current less than 0.3μA
Operating temperature range: -40 to +85°C
Dimensions: 16.1 x 15.9 x 4.2mm
Applications: Remote control, Remote sensing, Wireless data collection, Home security system, Toys, Tyre pressure monitoring system, local communication for the Internet-of-Things (IoT)
RS Product Codes
666-6744 ALPHA-TX-433 Transmitter
666-6757 ALPHA-TRX-433 Transceiver
Transmitter Output Power: up to +7dBm
Receiver Sensitivity: -109dBm @1200bps, BER = 0.1%
Modulation: FSK, OOK
High resolution PLL with 2.5KHz step
Programmable frequency deviation (from 30kHz to 210kHz, step 30kHz)
Max data rate: 115.2kbps with internal digital filters
SPI port for setup
Clock and reset signal output for external MCU use
Wake-up timer
Low-battery detection
Power supply: +2.2 to +5.4Vdc
Stand-by current less than 0.3μA
Operating temperature range: -40 to +85°C
Dimensions: 16.1 x 15.9 x 4.2mm
Applications: Remote control, Remote sensing, Wireless data collection, Home security system, Toys, Tyre pressure monitoring system, local communication for the Internet-of-Things (IoT)
RS Product Codes
666-6744 ALPHA-TX-433 Transmitter
666-6757 ALPHA-TRX-433 Transceiver
Approvals
CE, FCC
