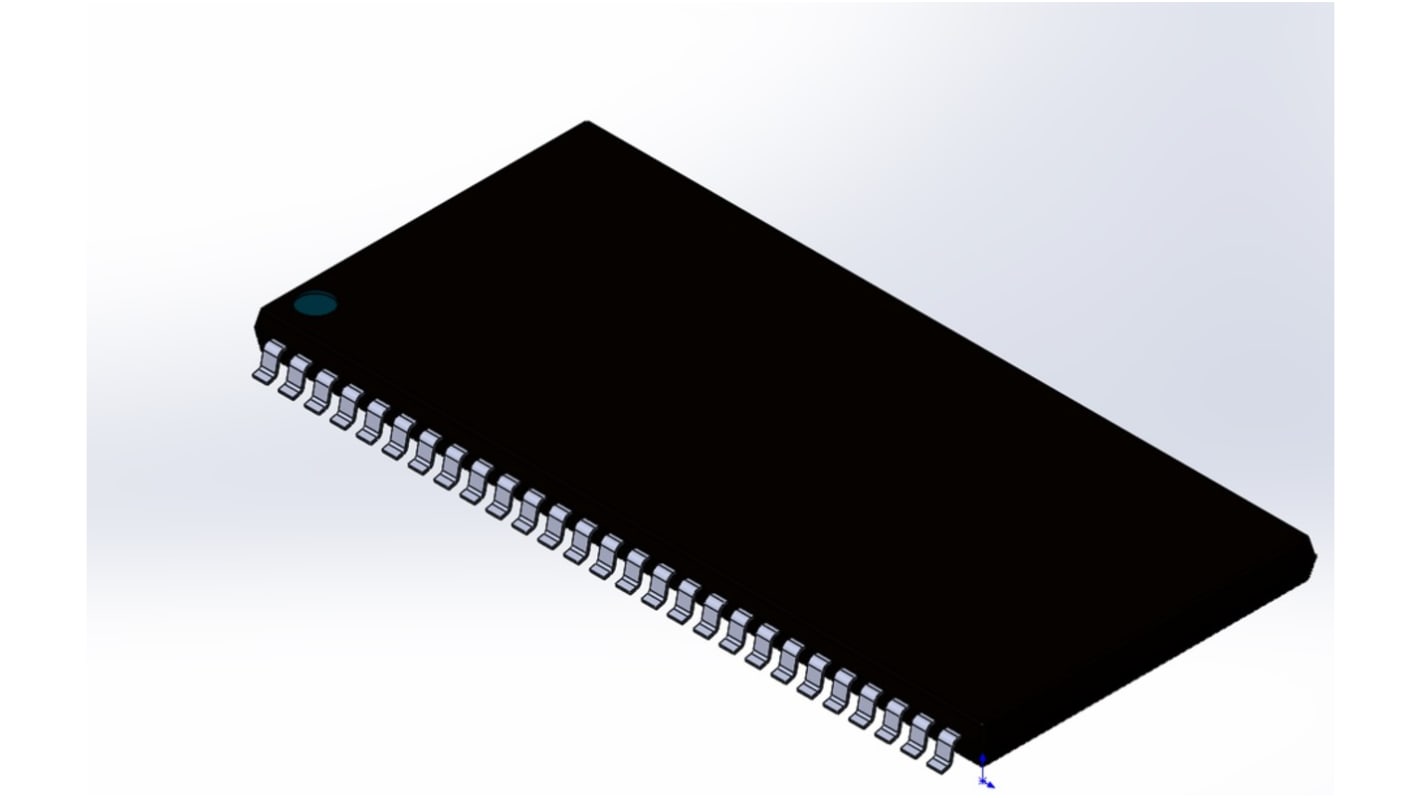

Alliance Memory AS4C8M16SA-7TCN SDRAM 128 MB Surface, 54-Pin 16 bit TSOP
- RS-stocknr.:
- 230-8440
- Fabrikantnummer:
- AS4C8M16SA-7TCN
- Fabrikant:
- Alliance Memory
Ontvang bulkkorting
Voeg 324 meer toe om 3% te besparen
Bekijk bulkkortingSubtotaal (1 tray van 108 eenheden)*
€ 986,69
(excl. BTW)
€ 1.193,94
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 324 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per tray* | Bespaar |
|---|---|---|---|
| 108 - 216 | € 9,136 | € 986,69 | - |
| 324 - 432 | € 8,779 | € 948,13 | 3% |
| 540 - 972 | € 8,734 | € 943,27 | 4% |
| 1080 - 1944 | € 8,149 | € 880,09 | 10% |
| 2052 + | € 7,756 | € 837,65 | 15% |
*prijsindicatie
- RS-stocknr.:
- 230-8440
- Fabrikantnummer:
- AS4C8M16SA-7TCN
- Fabrikant:
- Alliance Memory
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Alliance Memory | |
| Product Type | SDRAM | |
| Memory Size | 128MB | |
| Organisation | 8M x 16 bit | |
| Data Bus Width | 16bit | |
| Address Bus Width | 12bit | |
| Maximum Clock Frequency | 143MHz | |
| Number of Bits per Word | 16 | |
| Maximum Random Access Time | 5.4ns | |
| Number of Words | 2M | |
| Mount Type | Surface | |
| Package Type | TSOP | |
| Pin Count | 54 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Series | AS4C8M16SA | |
| Height | 1.2mm | |
| Length | 22.35mm | |
| Width | 8.1mm | |
| Standards/Approvals | No | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Alliance Memory | ||
Product Type SDRAM | ||
Memory Size 128MB | ||
Organisation 8M x 16 bit | ||
Data Bus Width 16bit | ||
Address Bus Width 12bit | ||
Maximum Clock Frequency 143MHz | ||
Number of Bits per Word 16 | ||
Maximum Random Access Time 5.4ns | ||
Number of Words 2M | ||
Mount Type Surface | ||
Package Type TSOP | ||
Pin Count 54 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Series AS4C8M16SA | ||
Height 1.2mm | ||
Length 22.35mm | ||
Width 8.1mm | ||
Standards/Approvals No | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Automotive Standard No | ||
The Alliance Memory 128Mb SDRAM is a high-speed CMOS synchronous DRAM containing 128 Mbits. It is internally configured as 4 Banks of 2M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a BankActivate command which is then followed by a Read or Write command.
Auto Refresh and Self Refresh
4096 refresh cycles/64ms
CKE power down mode
Single +3.3V 0.3V power supply
Interface: LVTTL
