Phoenix Contact SACB Series Distribution Unit, 6 Port, M12
- RS-stocknr.:
- 280-289
- Fabrikantnummer:
- 1452822
- Fabrikant:
- Phoenix Contact
Subtotaal (1 eenheid)*
€ 77,35
(excl. BTW)
€ 93,59
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 4 stuk(s) vanaf 10 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 77,35 |
*prijsindicatie
- RS-stocknr.:
- 280-289
- Fabrikantnummer:
- 1452822
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | Distribution Unit | |
| Number of Ports | 6 | |
| Inlet Connection Type | Cable | |
| Maximum Operating Voltage | 30V dc | |
| Series | SACB | |
| Interface Type | M12 | |
| Housing Material | Polybutylene Terephthalate | |
| IP Rating | IP67, IP65 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ANSI/ESD S20.20:2021 | |
| Minimum Operating Voltage | 24V | |
| Number of Ways | 4 | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type Distribution Unit | ||
Number of Ports 6 | ||
Inlet Connection Type Cable | ||
Maximum Operating Voltage 30V dc | ||
Series SACB | ||
Interface Type M12 | ||
Housing Material Polybutylene Terephthalate | ||
IP Rating IP67, IP65 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ANSI/ESD S20.20:2021 | ||
Minimum Operating Voltage 24V | ||
Number of Ways 4 | ||
- Land van herkomst:
- DE

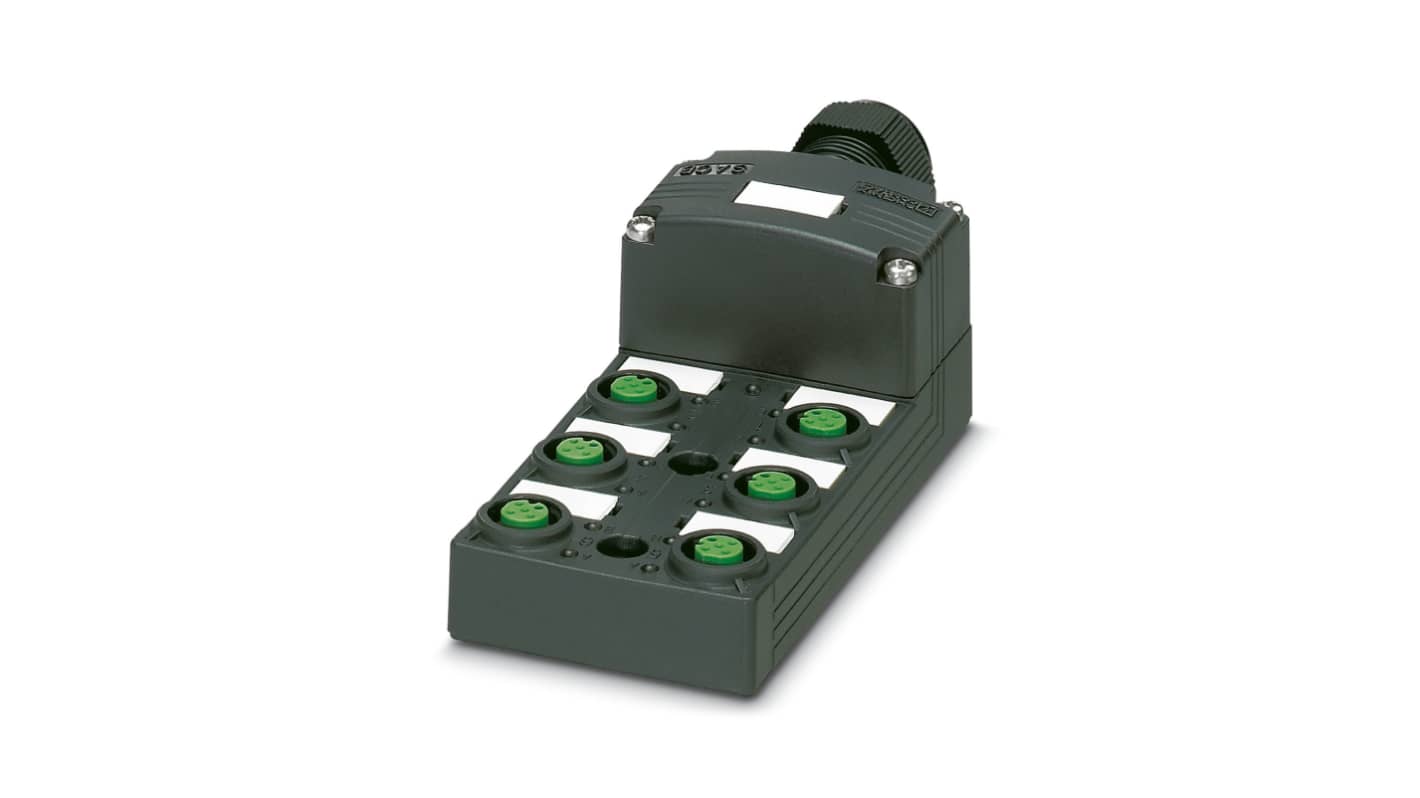

The Phoenix Contact Distributor box epitomises efficiency and reliability in industrial applications. Designed for standard use, this versatile unit boasts a compact form with an array of slots tailored for streamlined connections. Encased in a robust plastic housing with a high protection rating, it ensures operational safety in diverse environments.
Safety in the field, thanks to a moulded housing and high degree of protection
Quick diagnostics increase machine availability for effective operations
Installation is expedited with the SPEEDCON fast locking system
Flexible design accommodates on-site assembly with a connector hood
Sealed unused slots enhance the integrity and reliability of the system
Environmental compliance guarantees adherence to strict regulations
Lightweight construction promotes ease of handling and installation
Versatile cable routing options support diverse applications
