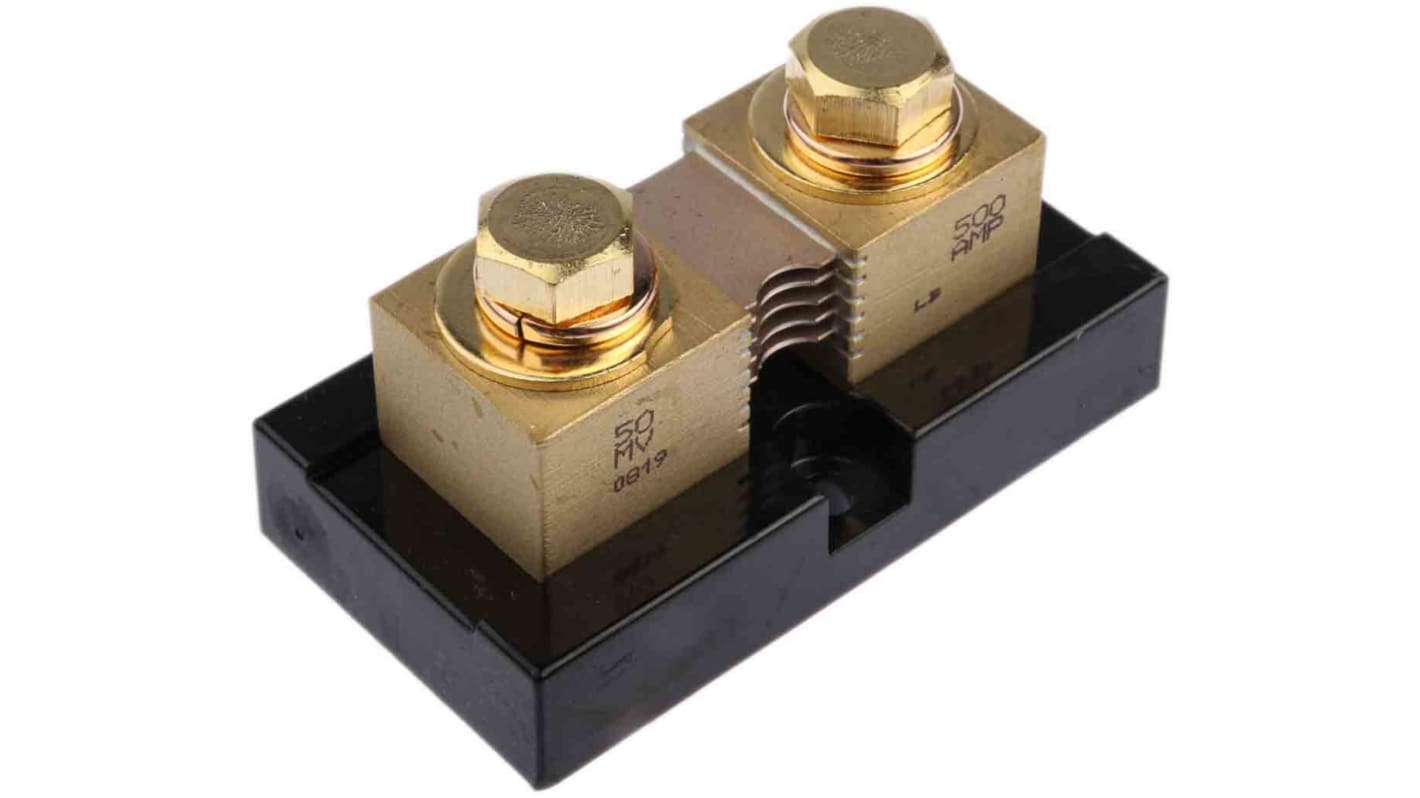

Murata Power Solutions Brass-Ended Shunt, 500 A Max, 50mV Output, ±0.25 % Accuracy
- RS-stocknr.:
- 823-3570
- Fabrikantnummer:
- 3020-01103-0
- Fabrikant:
- Murata Power Solutions
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 823-3570
- Fabrikantnummer:
- 3020-01103-0
- Fabrikant:
- Murata Power Solutions
Datasheets
Wetgeving en compliance
Productomschrijving
- Land van herkomst:
- CA
Murata Power Solutions DC Shunt
The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 500A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward
simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.
Features and Benefits
High precision with ±0.25% accuracy
Resistance is 0.001ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C
Resistance is 0.001ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C
Applications
Biomedical applications
Internet networking
Internet networking
