Mersen 200A NH Fuse, NH00, 690V ac
- RS-stocknr.:
- 448-3443
- Fabrikantnummer:
- M320171
- Fabrikant:
- Mersen
13 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Per stuk
€ 87,17
(excl. BTW)
€ 105,48
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 87,17 |
| 5 - 24 | € 75,31 |
| 25 - 49 | € 66,60 |
| 50 - 99 | € 63,63 |
| 100 + | € 60,84 |
- RS-stocknr.:
- 448-3443
- Fabrikantnummer:
- M320171
- Fabrikant:
- Mersen
Datasheets
Wetgeving en compliance
- Land van herkomst:
- TN
Productomschrijving

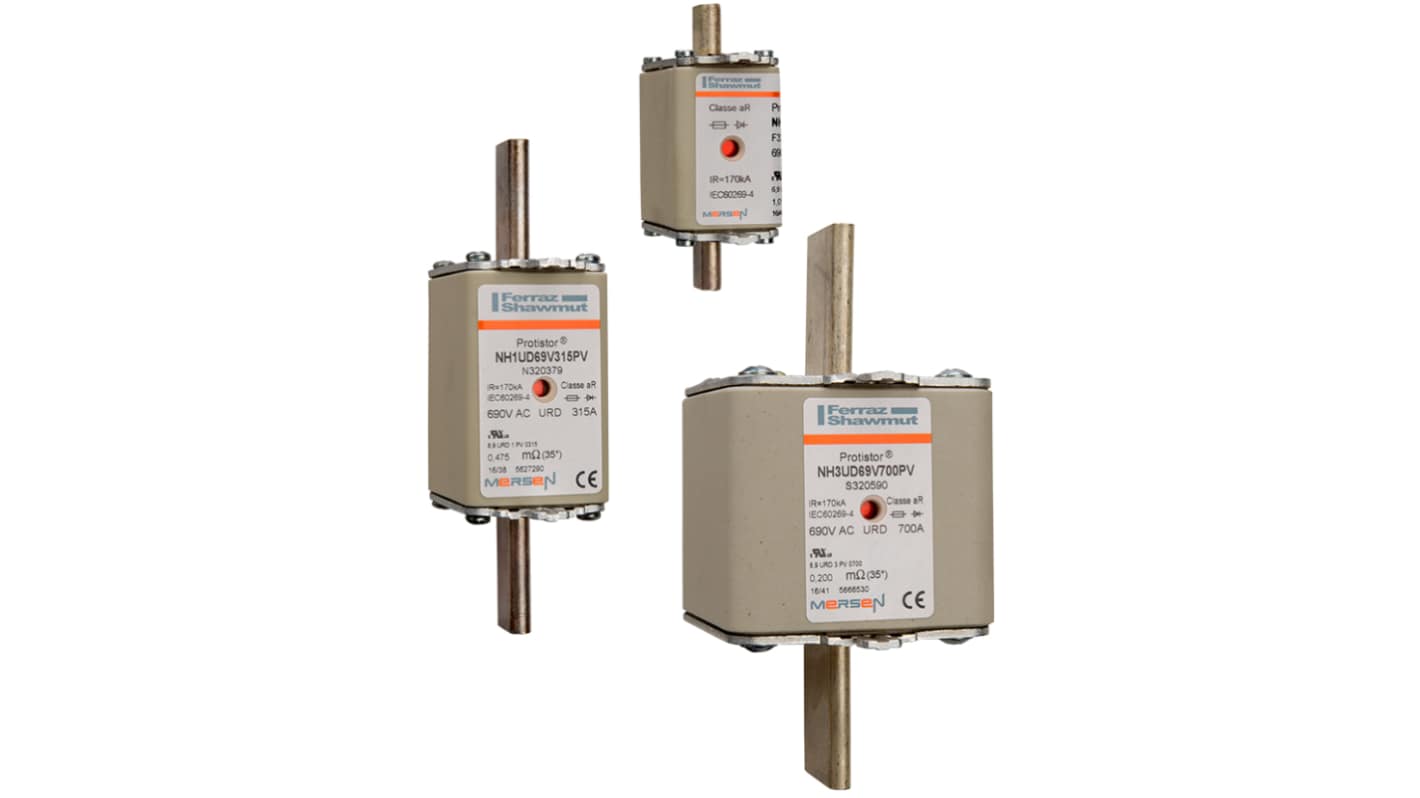

Protistor® fuses DIN 43620 size T00
Fuses with very high breaking capacity to protect power semi-conductors.
Body equipped with a fusion striker capable of activating a micro-switch attached to the body.
Order micro-switch separately, stock no. 448-3241
Body equipped with a fusion striker capable of activating a micro-switch attached to the body.
Order micro-switch separately, stock no. 448-3241
Approvals
DIN 43620
Specificaties
Kenmerk | Waarde |
|---|---|
| Current Rating | 200A |
| Fuse Size | NH00 |
| Voltage Rating | 690V ac |
| Fuse Standard | IEC 269.4, IEC 60269-4 |
| Application Category | aR |
| Tag Width | 6mm |
| Fuse Speed | FF |
| High Rupture Capacity | Yes |
| Overall Length | 79mm |
| Body Length | 50mm |
| Body Width | 29.5mm |
| Body Height | 47.5mm |
