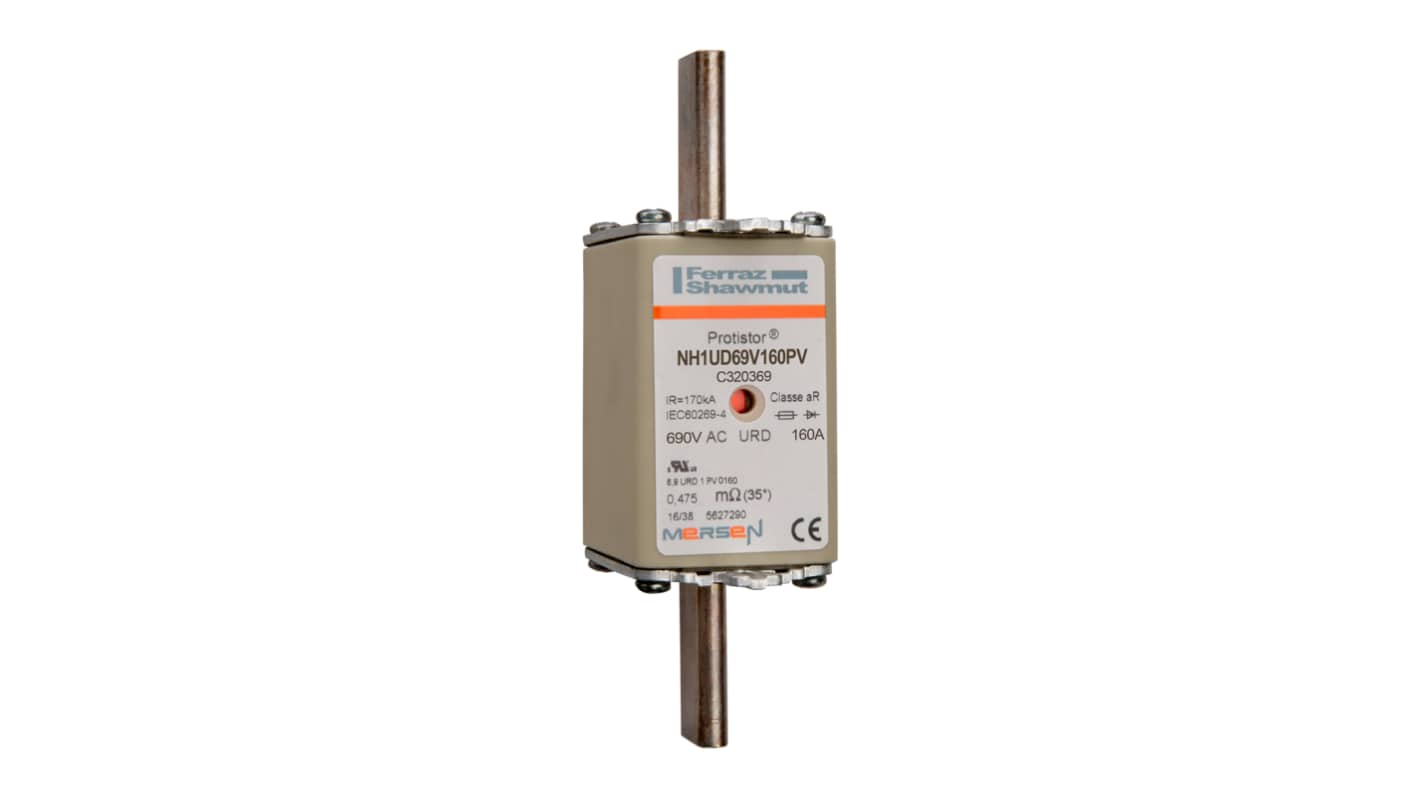

Mersen 160A NH Fuse NH1 690V ac
- RS-stocknr.:
- 448-3471
- Fabrikantnummer:
- C320369 / NH1UD69V160PV
- Fabrikant:
- Mersen
Ontvang bulkkorting
Voeg 5 meer toe om 9% te besparen
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 105,34
(excl. BTW)
€ 127,46
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 18 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Bespaar |
|---|---|---|
| 1 - 4 | € 105,34 | - |
| 5 - 24 | € 95,10 | 9% |
| 25 - 49 | € 92,52 | 12% |
| 50 - 99 | € 90,09 | 14% |
| 100 + | € 87,78 | 16% |
*prijsindicatie
- RS-stocknr.:
- 448-3471
- Fabrikantnummer:
- C320369 / NH1UD69V160PV
- Fabrikant:
- Mersen
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Mersen | |
| Fuse Type | NH | |
| Current Rating | 160A | |
| Product Type | NH Fuse | |
| Fuse Size | NH1 | |
| Voltage | 690V ac | |
| Standards/Approvals | IEC | |
| Application Category | aR | |
| Tag Width | 6mm | |
| Fuse Speed | FF | |
| High Rupture Capacity | Yes | |
| Tag Type | Plain Blade | |
| Fuse Characteristics | Highly Current Limiting, Ultra Fast Acting, High breaking capacity, Full Range Fast Acting | |
| Overall Length | 135mm | |
| Length | 68mm | |
| Width | 39.5mm | |
| Height | 52.5mm | |
| Series | NH1UD | |
| Alles selecteren | ||
|---|---|---|
Merk Mersen | ||
Fuse Type NH | ||
Current Rating 160A | ||
Product Type NH Fuse | ||
Fuse Size NH1 | ||
Voltage 690V ac | ||
Standards/Approvals IEC | ||
Application Category aR | ||
Tag Width 6mm | ||
Fuse Speed FF | ||
High Rupture Capacity Yes | ||
Tag Type Plain Blade | ||
Fuse Characteristics Highly Current Limiting, Ultra Fast Acting, High breaking capacity, Full Range Fast Acting | ||
Overall Length 135mm | ||
Length 68mm | ||
Width 39.5mm | ||
Height 52.5mm | ||
Series NH1UD | ||
Protistor® fuses DIN 43620 size T71
Fuses with very high breaking capacity to protect power semi-conductors.
Body equipped with a fusion striker capable of activating a micro-switch attached to the body.
Order micro-switch separately, stock no. 448-3241
Approvals
DIN 43620
