Abracon ACAJ-110-T PCB Omni-Directional Telemetry Antenna with SMA Connector, ISM Band
- RS-stocknr.:
- 250-5121
- Fabrikantnummer:
- ACAJ-110-T
- Fabrikant:
- Abracon
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 verpakking van 2 eenheden)*
€ 33,26
(excl. BTW)
€ 40,24
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1.998 stuk(s) vanaf 16 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 2 - 48 | € 16,63 | € 33,26 |
| 50 - 98 | € 14,35 | € 28,70 |
| 100 - 248 | € 12,455 | € 24,91 |
| 250 - 498 | € 11,89 | € 23,78 |
| 500 + | € 10,84 | € 21,68 |
*prijsindicatie
- RS-stocknr.:
- 250-5121
- Fabrikantnummer:
- ACAJ-110-T
- Fabrikant:
- Abracon
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Abracon | |
| RF Protocols | ISM Band | |
| Product Type | Telemetry Antenna | |
| Antenna Physical Form | PCB | |
| Connector Type | SMA | |
| Antenna Length | 9mm | |
| Antenna Mount Type | PCB | |
| Bandwidth | 915MHz | |
| Gain | -2.7dBi | |
| Maximum Frequency | 915MHz | |
| Directivity | Omni-Directional | |
| Minimum Frequency | 868MHz | |
| Antenna Internal Construction | Passive Dielectric Chip Antenna | |
| Standards/Approvals | RoHS/RoHS II | |
| Number of Bands | 2 | |
| Series | ACAJ-110-T | |
| Alles selecteren | ||
|---|---|---|
Merk Abracon | ||
RF Protocols ISM Band | ||
Product Type Telemetry Antenna | ||
Antenna Physical Form PCB | ||
Connector Type SMA | ||
Antenna Length 9mm | ||
Antenna Mount Type PCB | ||
Bandwidth 915MHz | ||
Gain -2.7dBi | ||
Maximum Frequency 915MHz | ||
Directivity Omni-Directional | ||
Minimum Frequency 868MHz | ||
Antenna Internal Construction Passive Dielectric Chip Antenna | ||
Standards/Approvals RoHS/RoHS II | ||
Number of Bands 2 | ||
Series ACAJ-110-T | ||

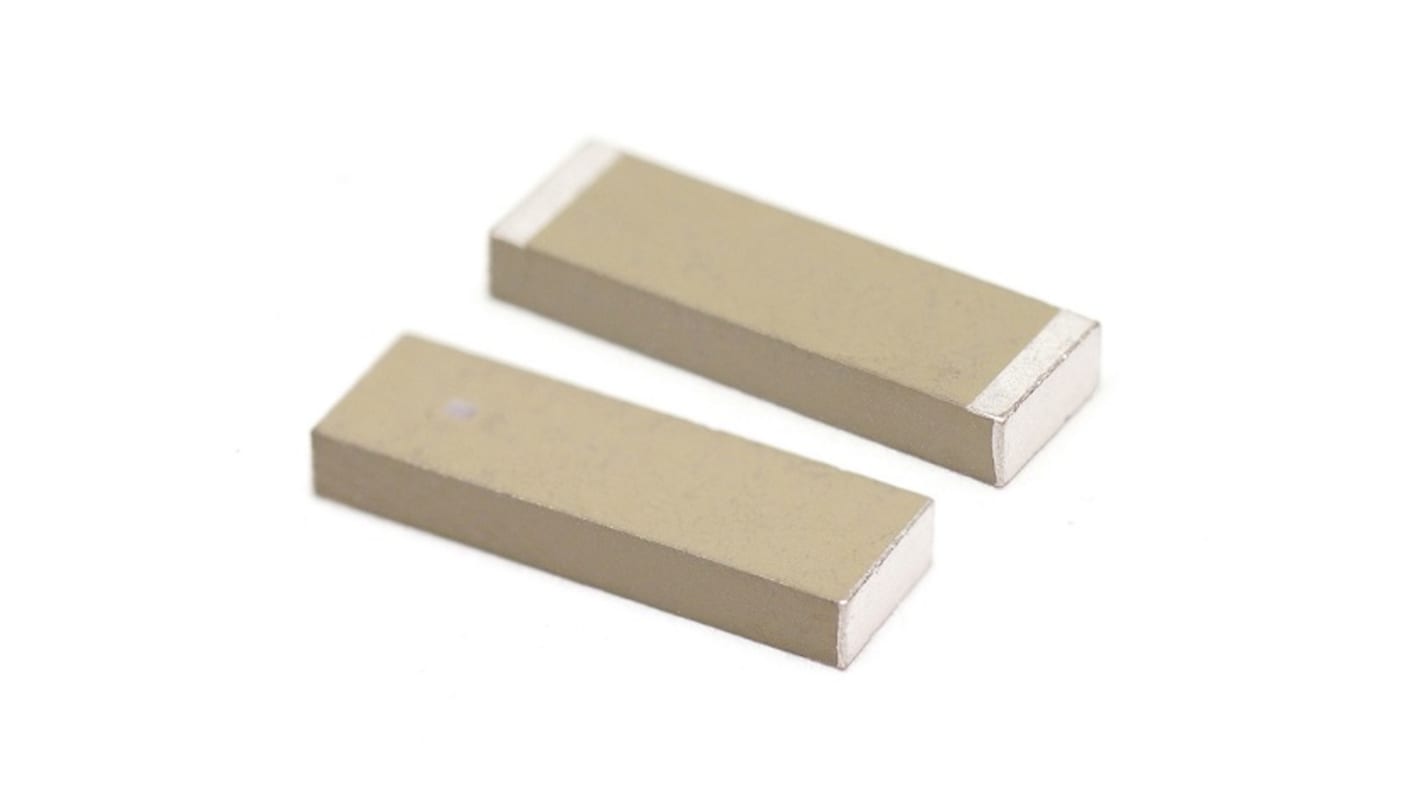

The Abracon makes RFID chip antenna which are covering dual ISM bands 868MHz and 915MHz. The size of the product is compact with dimensions (9.0mm x 3.0mm x 1.2mm). These antennas has linear polarization and omni-directional azimuth pattern. The Abracon antennas are used in Low power radio links, sensor networks and for use with ultra low power transceiver IC’s.
Operating temperature is -35˚C to + 85˚C
Gain is -2.5 to -2.7 dBi and Impedance 50 Ohms
VSWR 3.01 Max (measured on matched EV board)
RoHS/RoHS II compliant
