P.M.A KS Panel PID Temperature Controller, 3 Output Relay 260V ac On-Off

RS-stocknr.:: 736-4821
Fabrikantnummer:: KS90-112-0000D-000
Fabrikant:: P.M.A

P.M.A KS Panel PID Temperature Controller, 3 Output Relay 260V ac On-Off

Subtotaal (1 eenheid)*

€ 874,25

(excl. BTW)

€ 1.057,84

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

5 stuk(s) klaar voor verzending

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 874,25

*prijsindicatie

RS-stocknr.:: 736-4821
Fabrikantnummer:: KS90-112-0000D-000
Fabrikant:: P.M.A

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	P.M.A
	Product Type	PID Temperature Controller
	Output Type	Relay
	Number of Outputs	3
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	65°C
	Control Type	On-Off
	Maximum Supply Voltage	260V ac
	Auxiliary Power Supply	22 mA, 18 V
	Diagnostics	Dac Actuator Monitoring, Alarm, Error Messages, Maintenance Manager and Error List
	Digital Comms	RS422/RS485/Modbus RTU, PROFIBUS-DP
	Display Type	Multi Line, LED
	Length	118mm
	Standards/Approvals	cULus, EN 14597, EN 61 326-1, EN 61010-1
	IP Rating	IP00, IP65, IP20
	Width	48 mm
	Series	KS
	Input Type	Digital, Current, Voltage, Potentiometer, Thermocouple, Universal
	Mount Type	Panel
	Panel Depth	118mm

	Alles selecteren
	Merk P.M.A
	Product Type PID Temperature Controller
	Output Type Relay
	Number of Outputs 3
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 65°C
	Control Type On-Off
	Maximum Supply Voltage 260V ac
	Auxiliary Power Supply 22 mA, 18 V
	Diagnostics Dac Actuator Monitoring, Alarm, Error Messages, Maintenance Manager and Error List
	Digital Comms RS422/RS485/Modbus RTU, PROFIBUS-DP
	Display Type Multi Line, LED
	Length 118mm
	Standards/Approvals cULus, EN 14597, EN 61 326-1, EN 61010-1
	IP Rating IP00, IP65, IP20
	Width 48 mm
	Series KS
	Input Type Digital, Current, Voltage, Potentiometer, Thermocouple, Universal
	Mount Type Panel
	Panel Depth 118mm

N.v.t.

Land van herkomst:: GB

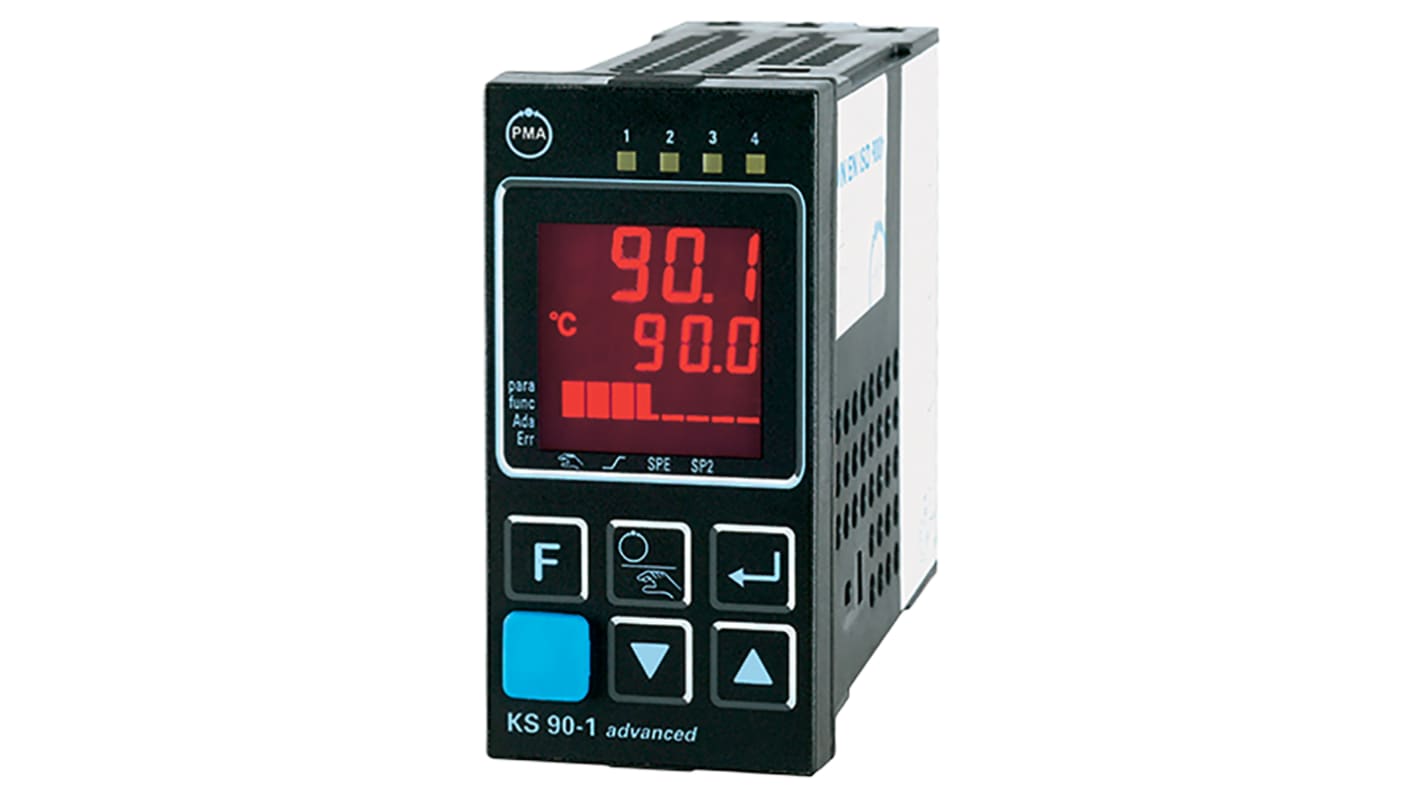

PMA KS 90-1 Temperature Controller

The KS 90-1 process controller is suitable for universal, precise, and cost-effective control. The instrument provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control.

The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement, as an external set-point inputter for position feedback measurement of motorised stepping controllers.

The optional 3rd input is a universal input that can be used for several functions, e.g. temperature dependent setpoint correction or differential control. The standard KS 90-1 is suitable for oxygen control using heated and unheated O2 sensors.

The KS 90-1 is particularly suited to the following applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers.

• BluePort®

• Front interface and BlueControl software

• Maintenance manager and error list

• Two universal inputs

• Day & Night display shows plain text and bargraphs

• Manual gain scheduling

• Self-Tuning to the setpoint without oscillation

• Valve controller with position feedback and DAC monitoring

• 3-point controller for water, fan and oil cooling

• Type tested to EN 14597 (replaces DIN 3440) and cULus

• High-impedance mV input for O2 sensors

PMA Temperature Controllers

Standards

CE Certified

Supplied with

German Manual
