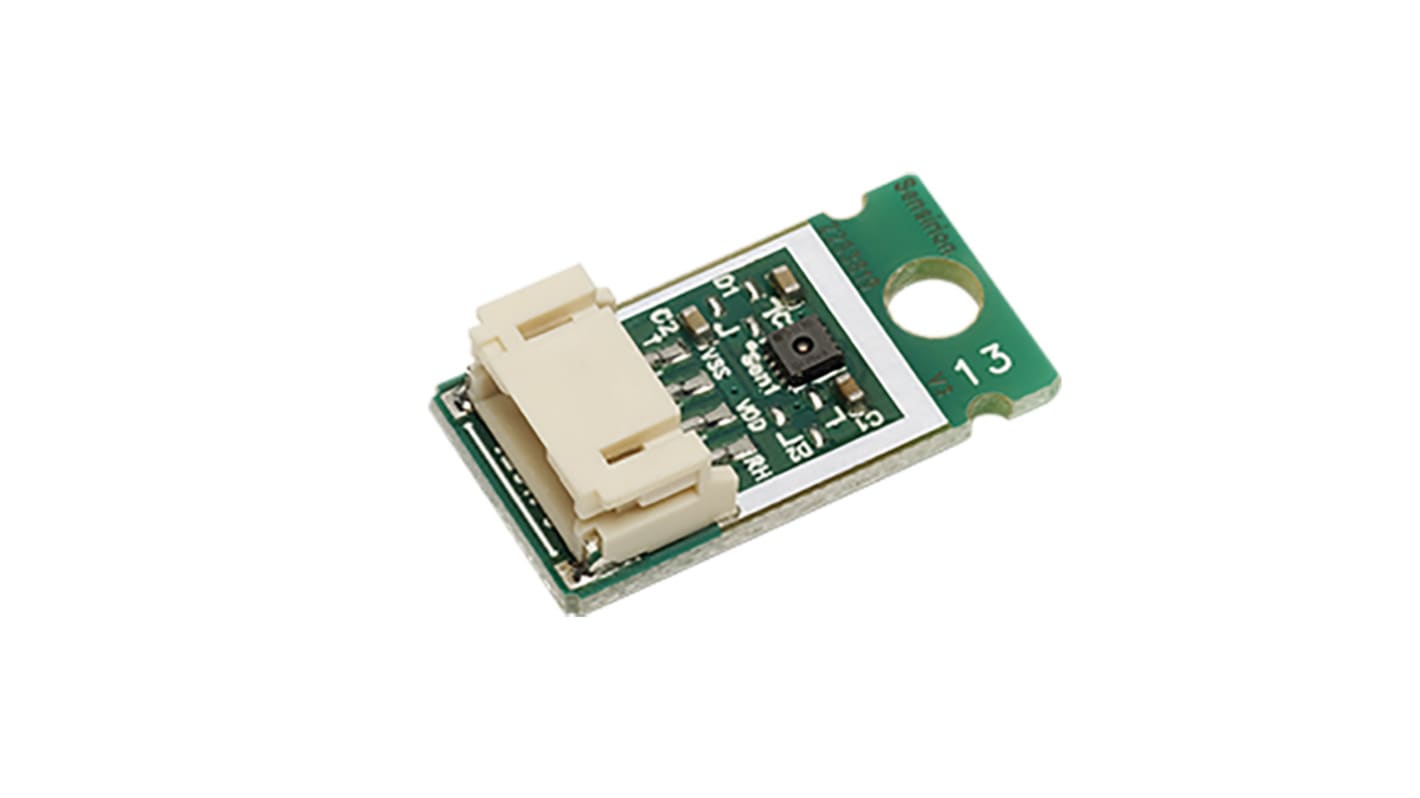

Sensirion SCC30-DB Series, Digital Output Temperature & Humidity Sensor, Surface Mount, I2C, ±3 %RH, 7-Pin ESD

Bekijk deze categorie
Momenteel niet beschikbaar
We weten niet of dit artikel weer voorradig zal zijn, het wordt door de fabrikant stopgezet.
RS-stocknr.:
195-0687
Fabrikantnummer:
SCC30-DB RH/T module, 125 PCS
Fabrikant:
Sensirion
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Sensirion

Product Type

Temperature & Humidity Sensor

Output Type

Digital

Interface Type

I2C

Sub Type

Temperature & Humidity Sensor

Accuracy

±3 %RH

Mount Type

Surface

Pin Count

7

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-20°C

Minimum Supply Voltage

2.4V

Maximum Supply Voltage

5.5V

Package Type

ESD

Standards/Approvals

No

Height

7.2mm

Series

SCC30-DB

Length

25.6mm

Automotive Standard

No

Land van herkomst:
CN
With the SCC30, customers can place a humidity and temperature sensor anywhere in a device and connect it to the main board with a cable without having to spend design resources for creating an own sensor module. Based on Sensirion’s experience and expertise in environmental sensing the SCC30 is optimized for easy design-in and sensing performance. The SCC30 offers superior sensor performance of capacitive type sensor elements and a very attractive price/performance ratio due to Sensirion’s latest generation of highly integrated humidity and temperature sensors SHT3x.

The module provides high reliability and excellent long-term stability, a broad supply voltage range of 2.4 to 5.5V and delivers fully calibrated and processed measurement values through an I2C interface. The compact design with connector and easy-to-use digital interface make the SCC30 a cost-effective and versatile plug & play solution for a wide range of applications.
