Belden, 9860 series Screened Black Twin Axial Cable, 11.18 mm OD 152 m, 124 Ω impedance
- RS-stocknr.:
- 331-8859
- Fabrikantnummer:
- 9860 010500
- Fabrikant:
- Belden
Subtotaal (1 rol van 152 meter)*
€ 2.311,04
(excl. BTW)
€ 2.796,36
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 31 december 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Rol(len) | Per rol | Per meter* |
|---|---|---|
| 1 + | € 2.311,04 | € 15,204 |
*prijsindicatie
- RS-stocknr.:
- 331-8859
- Fabrikantnummer:
- 9860 010500
- Fabrikant:
- Belden
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Belden | |
| Fire Behaviour | Flame Retardant | |
| Product Type | Twin Axial Cable | |
| Jacket Material | Polyethylene Foam | |
| Jacket Colour | Black | |
| American Wire Gauge | 16AWG | |
| Cable Length | 152m | |
| Voltage | 300V | |
| Characteristic Impedance | 124Ω | |
| Attenuation | 20.342 dB | |
| Outside Diameter | 11.18mm | |
| Minimum Operating Temperature | -20°C | |
| Conductor Type | Solid | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | Euroclass Eca | |
| Number of Strands | 1 | |
| Screened/Unscreened | Screened | |
| Conductor Material | Bare Copper | |
| Size of Strands | 16AWG | |
| Series | 9860 | |
| Core Strands | 1 x 16AWG | |
| Alles selecteren | ||
|---|---|---|
Merk Belden | ||
Fire Behaviour Flame Retardant | ||
Product Type Twin Axial Cable | ||
Jacket Material Polyethylene Foam | ||
Jacket Colour Black | ||
American Wire Gauge 16AWG | ||
Cable Length 152m | ||
Voltage 300V | ||
Characteristic Impedance 124Ω | ||
Attenuation 20.342 dB | ||
Outside Diameter 11.18mm | ||
Minimum Operating Temperature -20°C | ||
Conductor Type Solid | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals Euroclass Eca | ||
Number of Strands 1 | ||
Screened/Unscreened Screened | ||
Conductor Material Bare Copper | ||
Size of Strands 16AWG | ||
Series 9860 | ||
Core Strands 1 x 16AWG | ||
- Land van herkomst:
- US
Belden 9860

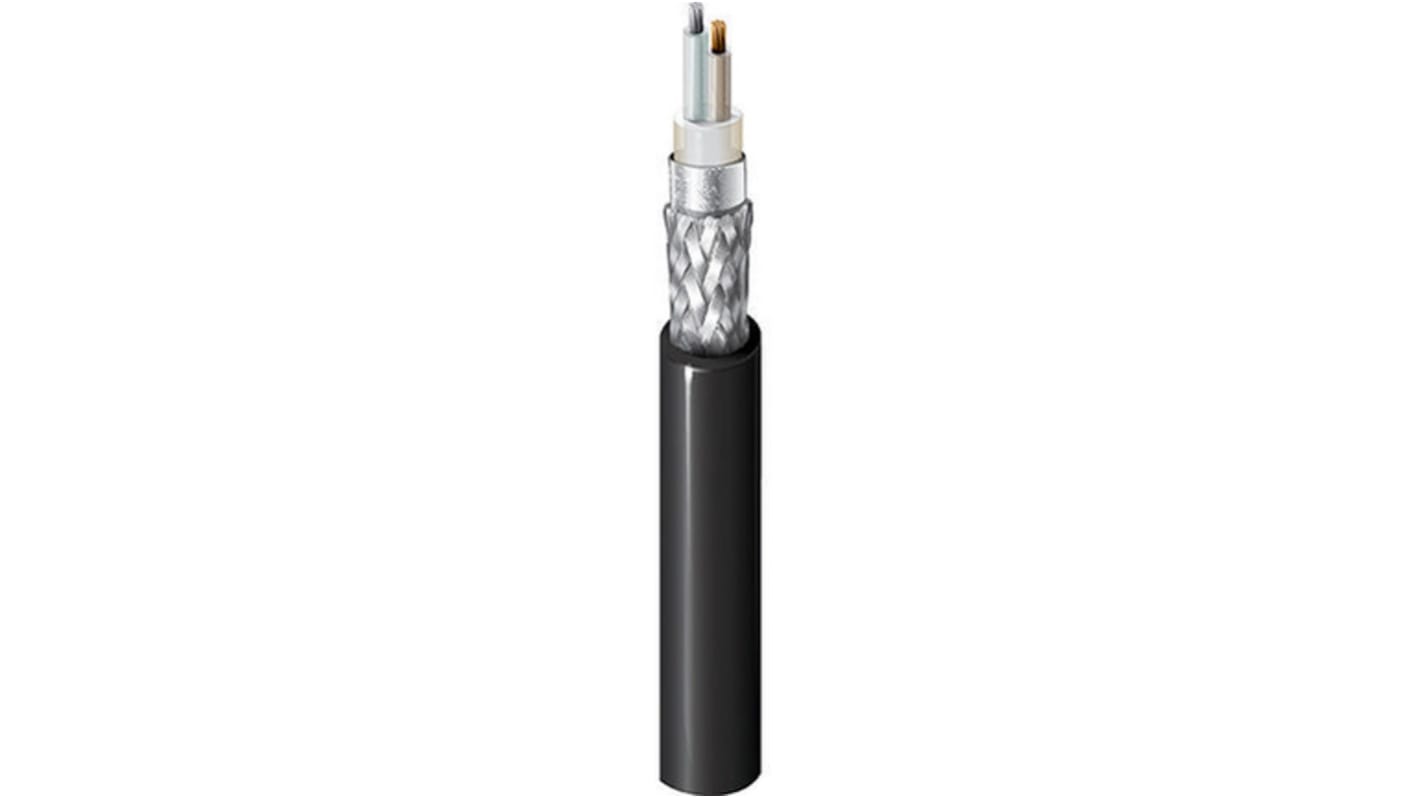

A Belden 9860 twinaxial cable.
Features and Benefits
· 16AWG solid bare copper twinax cable
· Shielded with Duofoil® and 90% tinned copper braid under a black PVC jacket
Standards
NEC CMX; UL2448
