Belden, YE00447 series Unscreened Blue Twin Axial Cable, 6.17 mm OD 152 m, 78 Ω impedance

RS-stocknr.:: 331-8865
Fabrikantnummer:: 9463.01152
Fabrikant:: Belden

Belden, YE00447 series Unscreened Blue Twin Axial Cable, 6.17 mm OD 152 m, 78 Ω impedance

Subtotaal (152 meter, op een rol van 152)*

€ 724,02

(excl. BTW)

€ 876,06

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

12 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Rol(len)	Per rol	Per meter*
1 +	€ 724,02	€ 4,763

*prijsindicatie

RS-stocknr.:: 331-8865
Fabrikantnummer:: 9463.01152
Fabrikant:: Belden

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Belden
	Fire Behaviour	UL1685 UL Loading
	Product Type	Twin Axial Cable
	Jacket Material	Polyethylene
	Jacket Colour	Blue
	Cable Length	152m
	American Wire Gauge	20AWG
	Voltage	300V
	Characteristic Impedance	78Ω
	Outside Diameter	6.17mm
	Conductor Type	Stranded
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Standards/Approvals	Euroclass Eca
	Screened/Unscreened	Unscreened
	Number of Strands	7
	Size of Strands	28AWG
	Series	YE00447
	Conductor Material	Tin Copper Wire
	Core Strands	7 x 28AWG

	Alles selecteren
	Merk Belden
	Fire Behaviour UL1685 UL Loading
	Product Type Twin Axial Cable
	Jacket Material Polyethylene
	Jacket Colour Blue
	Cable Length 152m
	American Wire Gauge 20AWG
	Voltage 300V
	Characteristic Impedance 78Ω
	Outside Diameter 6.17mm
	Conductor Type Stranded
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Standards/Approvals Euroclass Eca
	Screened/Unscreened Unscreened
	Number of Strands 7
	Size of Strands 28AWG
	Series YE00447
	Conductor Material Tin Copper Wire
	Core Strands 7 x 28AWG

Land van herkomst:: NL

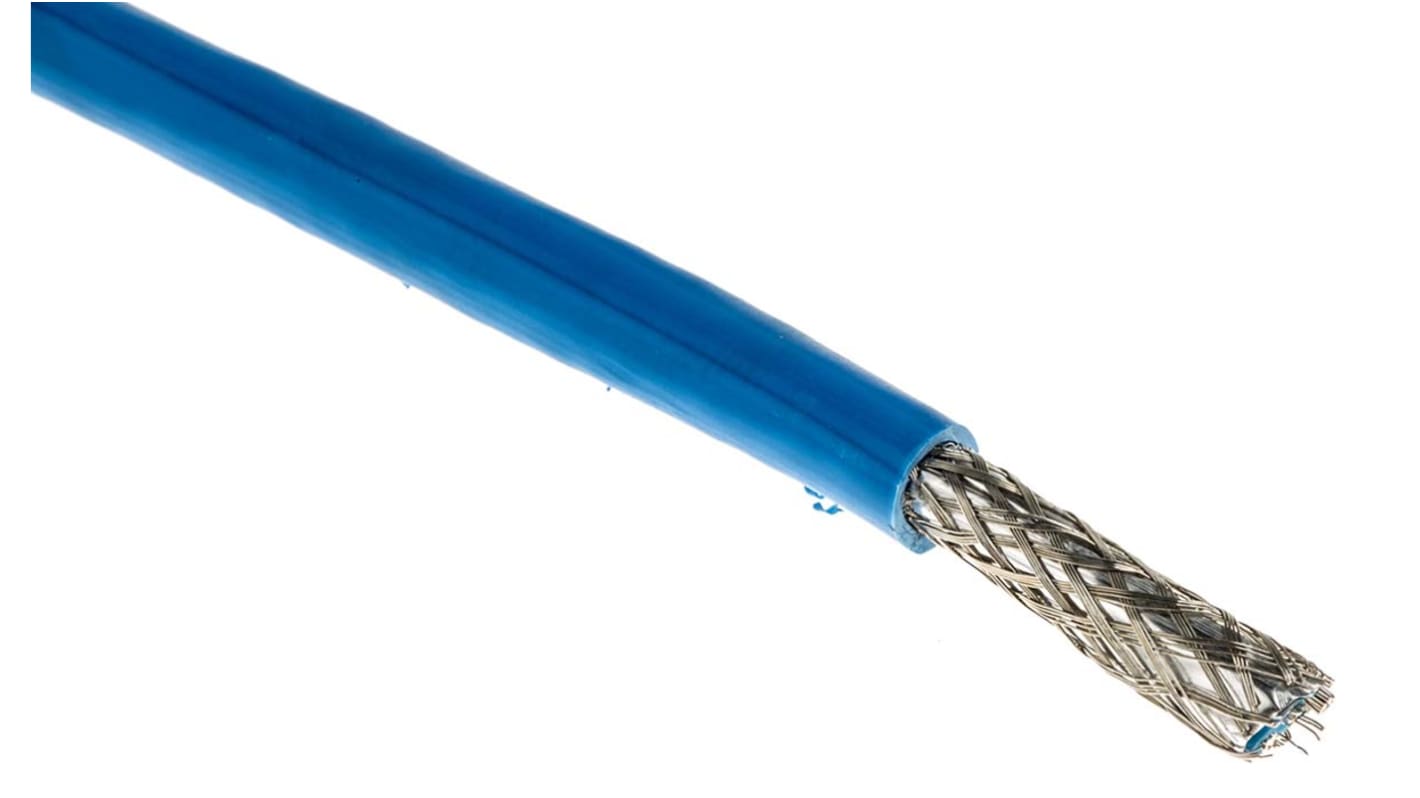

Belden Twinaxial Connection Cable, PE insulation

For quick and reliable signal transference between your devices, look to this twinaxial cable from Belden. It features a classic coaxial cable shape combined with an additional conductor sheath and polyethylene (PE) insulation jacket for resistance against electromagnetic interference (EMI) and environmental hazards. The conductors are made from tinned copper with patented Beldfoil shielding to ensure a high level of conductivity, increasing the overall speed of data transfer. This cable is protected from chemical exposure, high temperatures and electrical hazards thanks to its durable polyvinyl chloride (PVC) sheath.

Features & Benefits

• Operating temperature range of -40°C to +80°C for use in harsh environments

• Capacitance of 64.6pF/m (picofarads per metre) ensures a high level of stored electric charge

• Blue sheath colour for immediate cable identification

Applications

• Data transmission

• CCTV camera control

• Television broadcasting

What’s the difference between coaxial and twinaxial cables?

Coaxial cables have an inner conductor insulated by a dielectric material to prevent signal distortion. By comparison, twinaxial cables feature a second conductor and an additional layer of insulation to further increase cable protection from crosstalk and environmental interference.
