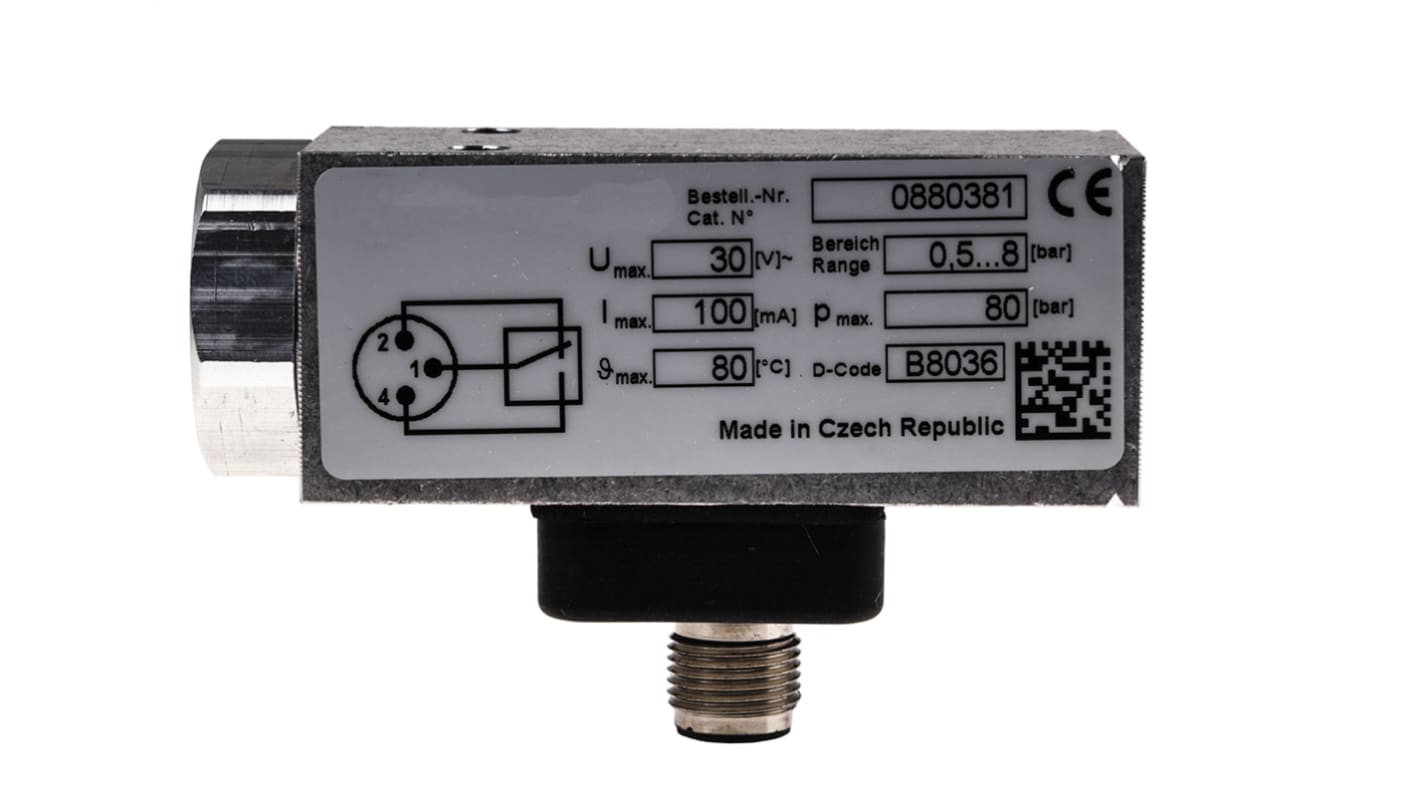

RS PRO Pressure Switch 0.5 bar to 8 bar
- RS-stocknr.:
- 136-6276
- Fabrikant:
- RS PRO
Subtotaal (1 eenheid)*
€ 179,48
(excl. BTW)
€ 217,17
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending
- 12 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 179,48 |
*prijsindicatie
- RS-stocknr.:
- 136-6276
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Pressure Switch | |
| Minimum Operating Pressure | 0.5bar | |
| Port Size | M12 x 1 | |
| Switch Output | Switchable | |
| Suitable Medias | Gas, Liquid | |
| Pressure Type | Electromechanical | |
| Voltage | 30V | |
| Series | RS PRO | |
| Maximum Operating Pressure | 8 bar | |
| Minimum Operating Temperature | 0°C | |
| Connection Thread Standard | NPT | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC, DIN, EN | |
| IP Rating | IP67 | |
| Hazardous Area Certification | ATEX | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Pressure Switch | ||
Minimum Operating Pressure 0.5bar | ||
Port Size M12 x 1 | ||
Switch Output Switchable | ||
Suitable Medias Gas, Liquid | ||
Pressure Type Electromechanical | ||
Voltage 30V | ||
Series RS PRO | ||
Maximum Operating Pressure 8 bar | ||
Minimum Operating Temperature 0°C | ||
Connection Thread Standard NPT | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC, DIN, EN | ||
IP Rating IP67 | ||
Hazardous Area Certification ATEX | ||
Vrijgesteld
- Land van herkomst:
- DE
RS Pro Pneumatic Pressure Switch 18D- ATEX
The 18D series pneumatic pressure switches from RS Pro are intrinsically safe to operate and contain a microswitch with gold plated contacts.
These pressure switches are ATEX approved.
Features and Benefits
• Microswitch with gold plated contacts;• High number of switching cycles;• Vibration resistant to 15 g;• Microswitch approved by UL and CSA;• Intrinsically safe operation;• Assortment of pressure ranges;• Temperature range: 0°C to +80°C;• FKM sealing
Product Application Information
For neutral, gaseous and liquid fluids.
Pressure Switches
Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 Series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all models to DIN 43650.
Approvals
UL , TUV and CSA
