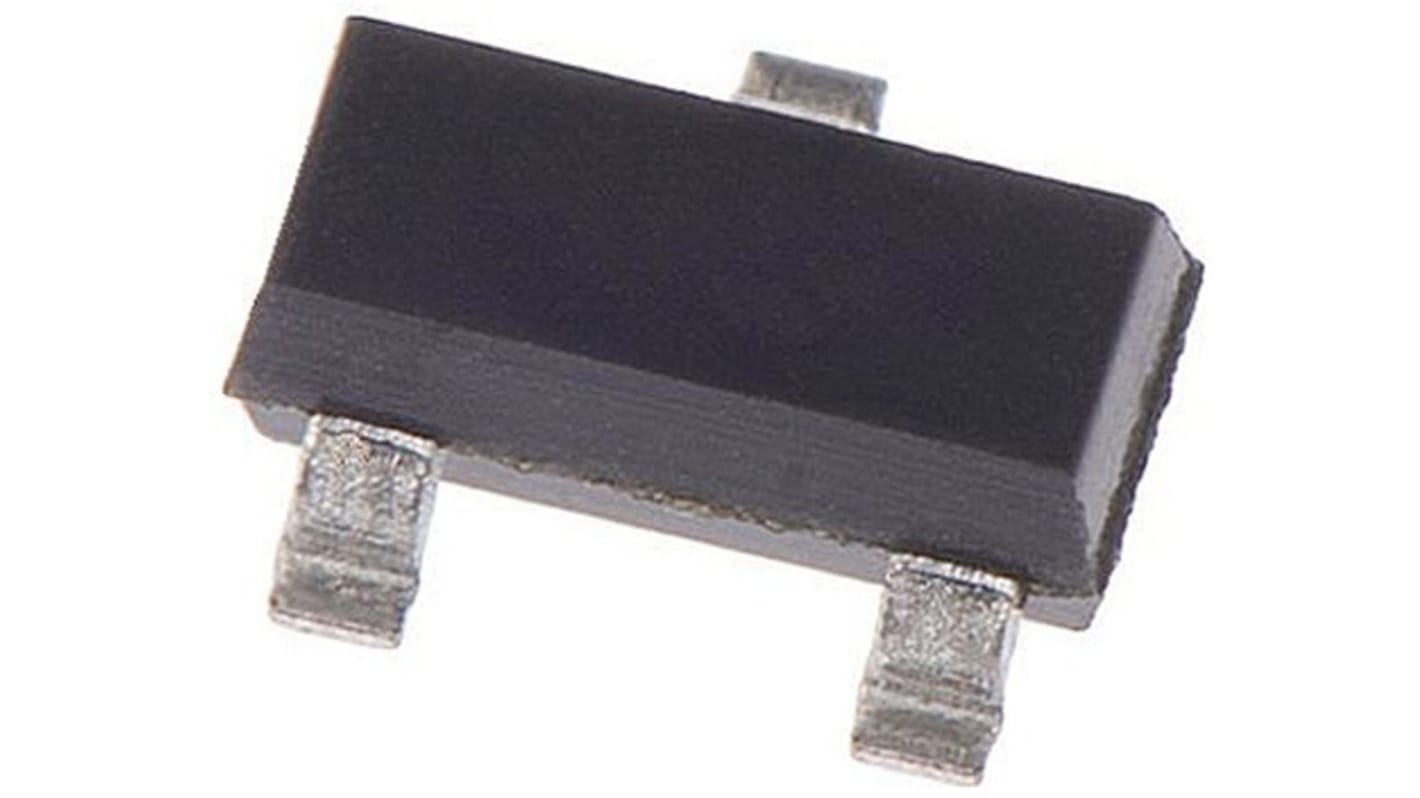

Texas Instruments Fixed Shunt Voltage Reference ±0.1 % 3-Pin SOT-23
- RS-stocknr.:
- 922-2470
- Fabrikantnummer:
- LM4040A41IDBZT
- Fabrikant:
- Texas Instruments
Subtotaal (1 rol van 250 eenheden)*
€ 619,25
(excl. BTW)
€ 749,25
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 250 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per rol* |
|---|---|---|
| 250 + | € 2,477 | € 619,25 |
*prijsindicatie
- RS-stocknr.:
- 922-2470
- Fabrikantnummer:
- LM4040A41IDBZT
- Fabrikant:
- Texas Instruments
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Texas Instruments | |
| Product Type | Voltage Reference | |
| Reference Voltage | 4.1V | |
| Package Type | SOT-23 | |
| Reference Type | Fixed | |
| Initial Accuracy | ±0.1 % | |
| Mount Type | Surface | |
| Temperature Coefficient | 30 ppm/°C | |
| Topology | Shunt | |
| Output Current | 15mA | |
| Maximum Input Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 85°C | |
| Length | 2.92mm | |
| Load Regulation | 7 mV | |
| Height | 1mm | |
| Series | LM4040 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Output Type | Fixed | |
| Minimum Input Voltage | 4.1V | |
| Alles selecteren | ||
|---|---|---|
Merk Texas Instruments | ||
Product Type Voltage Reference | ||
Reference Voltage 4.1V | ||
Package Type SOT-23 | ||
Reference Type Fixed | ||
Initial Accuracy ±0.1 % | ||
Mount Type Surface | ||
Temperature Coefficient 30 ppm/°C | ||
Topology Shunt | ||
Output Current 15mA | ||
Maximum Input Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Pin Count 3 | ||
Maximum Operating Temperature 85°C | ||
Length 2.92mm | ||
Load Regulation 7 mV | ||
Height 1mm | ||
Series LM4040 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Output Type Fixed | ||
Minimum Input Voltage 4.1V | ||
Shunt Voltage Reference, Fixed, 3V to 10V
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
