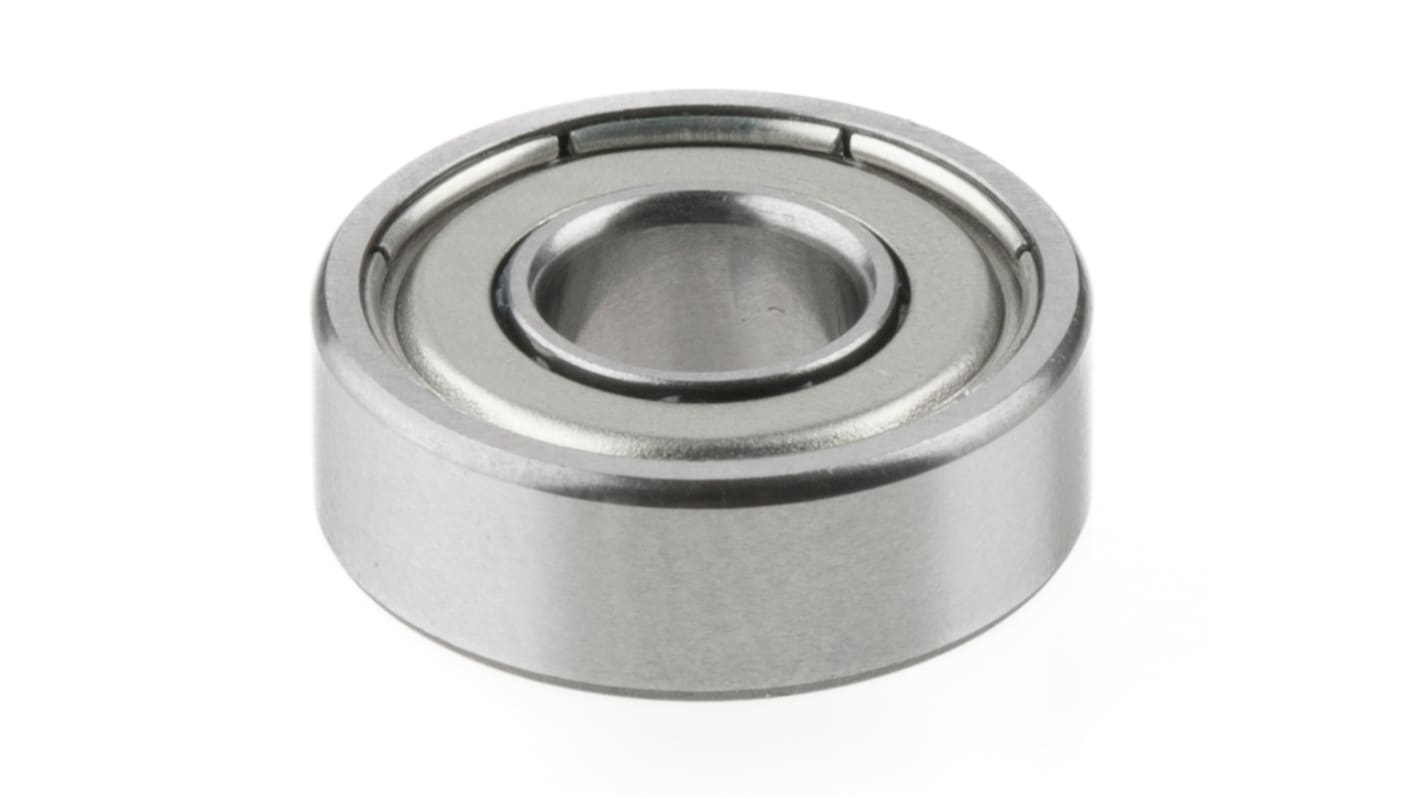

SKF 628/5-2Z 1 Row Ball Bearing - 5 mm ID, 11 mm OD
- RS-stocknr.:
- 207-8232
- Artikelnummer Distrelec:
- 304-09-842
- Fabrikantnummer:
- 628/5-2Z
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 14,61
(excl. BTW)
€ 17,68
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 28 stuk(s) vanaf 19 oktober 2026
- Plus verzending 137 stuk(s) vanaf 19 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 14,61 |
*prijsindicatie
- RS-stocknr.:
- 207-8232
- Artikelnummer Distrelec:
- 304-09-842
- Fabrikantnummer:
- 628/5-2Z
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 5mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 11mm | |
| Race Width | 4mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 143kN | |
| Dynamic Load Rating | 468N | |
| Standards/Approvals | No | |
| Series | 628/5-2Z | |
| Bore Type | Parallel | |
| Limiting Speed | 60000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 5mm | ||
Product Type Ball Bearing | ||
Outside Diameter 11mm | ||
Race Width 4mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 143kN | ||
Dynamic Load Rating 468N | ||
Standards/Approvals No | ||
Series 628/5-2Z | ||
Bore Type Parallel | ||
Limiting Speed 60000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
SKF Deep-Groove Ball Bearing, 5mm ID, 11mm OD - 628/5-2Z
Choose this shielded deep-groove ball bearing from SKF for the reliable support of axial and radial loads in either direction. Its high-carbon chromium bearing steel balls deliver enhanced strength and performance, while the advanced raceway reduces friction for higher speed capacity. This unit's precision components ensure reduced noise and minimal vibration, meaning it can work at high and very high speeds.
• Dynamic load rating of 0.468kN and static load rating of 0.143kN for a versatile range of industrial uses
• Stainless steel balls resist corrosion if exposed to moisture or chemicals
• Easy mounting for greater convenience
• Double-shielded to keep out dirt and debris, reducing maintenance needs
Applications
• Agricultural equipment
• Industrial automation
• Conveyor systems and handling
• Household appliance manufacturing
What's the difference between a dynamic load and a static load?
A dynamic load rating measures the maximum load a bearing can tolerate at room temperature when the contact surfaces are in motion. It's used to determine the basic rating life of the bearing. Static load rating, on the other hand, measures the maximum load the bearing can tolerate at room temperature when not in motion before the bearing becomes damaged.
