SKF 628/7-2Z 1 Row Ball Bearing - 7 mm ID, 14 mm OD
- RS-stocknr.:
- 207-8236
- Fabrikantnummer:
- 628/7-2Z
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 14,61
(excl. BTW)
€ 17,68
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 89 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 14,61 |
*prijsindicatie
- RS-stocknr.:
- 207-8236
- Fabrikantnummer:
- 628/7-2Z
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 7mm | |
| Outside Diameter | 14mm | |
| Race Width | 5mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 260kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 780N | |
| Series | 628/7-2Z | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 50000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 7mm | ||
Outside Diameter 14mm | ||
Race Width 5mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 260kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 780N | ||
Series 628/7-2Z | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 50000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||

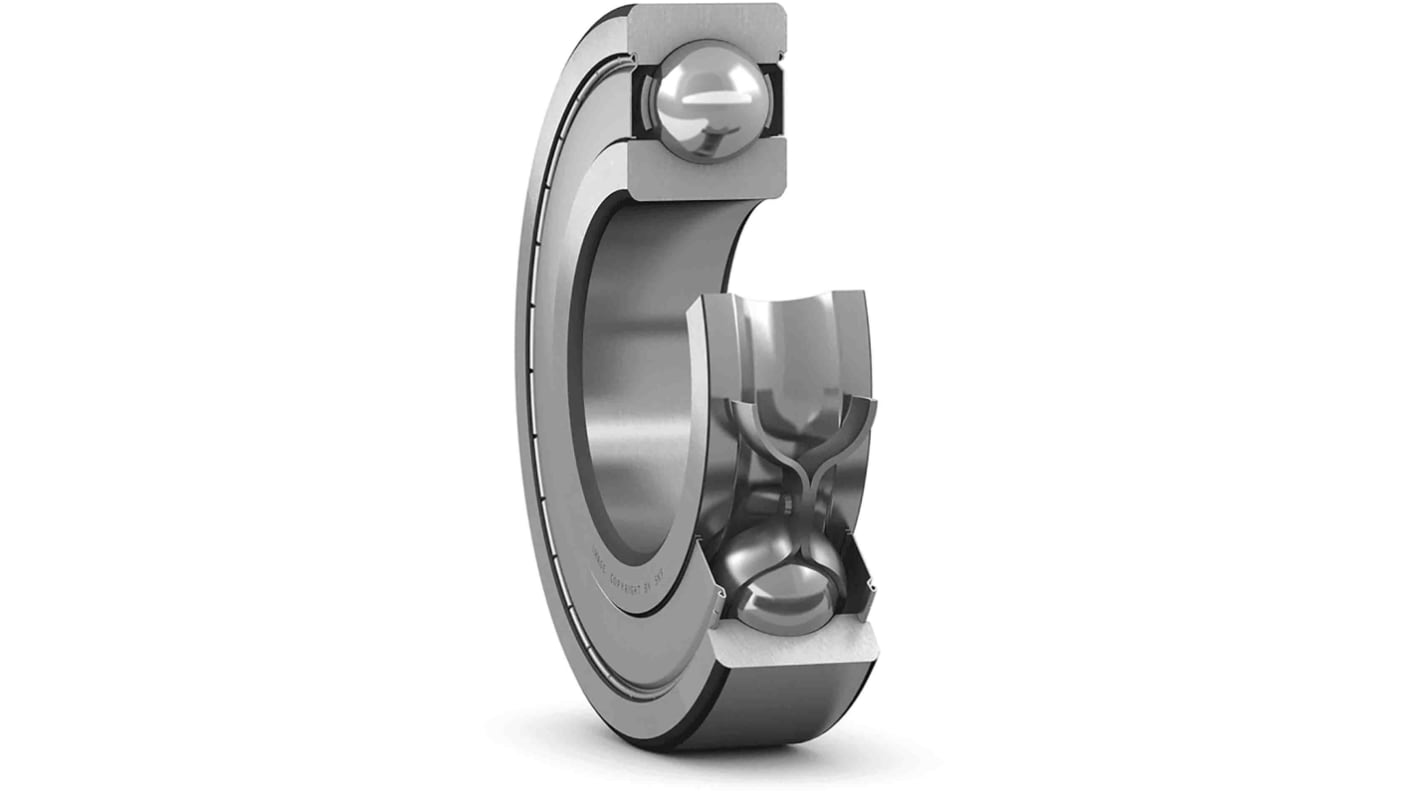

SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 7mm ID, 14mm OD - 628/7-2Z
Use this deep-groove ball bearing from SKF to support both axial and radial loads in your rotating industrial machinery. It's made up of a single row of rolling elements on a plain raceway to help minimise friction and reduce workplace noise. As the unit has a reference speed of 100,000 rotations per minute, it can keep rolling smoothly under extreme temperatures. A limiting speed of 50,000 r/min makes it suitable for use with heavy-duty mechanical applications. Shielding at both ends keeps grease in and prolongs the service life of the bearing.
• Compact dimensions of 7mm ID and 14mm OD to fit small rotating shafts
• Bearing is made from hard-wearing steel to reduce the risk of wear
• Fatigue load limit of 0.011kN for durability in demanding operations
Applications
• Construction equipment
• Manufacturing industry
• Railway sector
• Packaging machinery
• Wind turbines
Where should I use a shielded ball bearing?
As the built-in seal helps prevent dirt particles from entering the bearing, this deep-groove ball bearing is an ideal option for use in contaminated environments.
