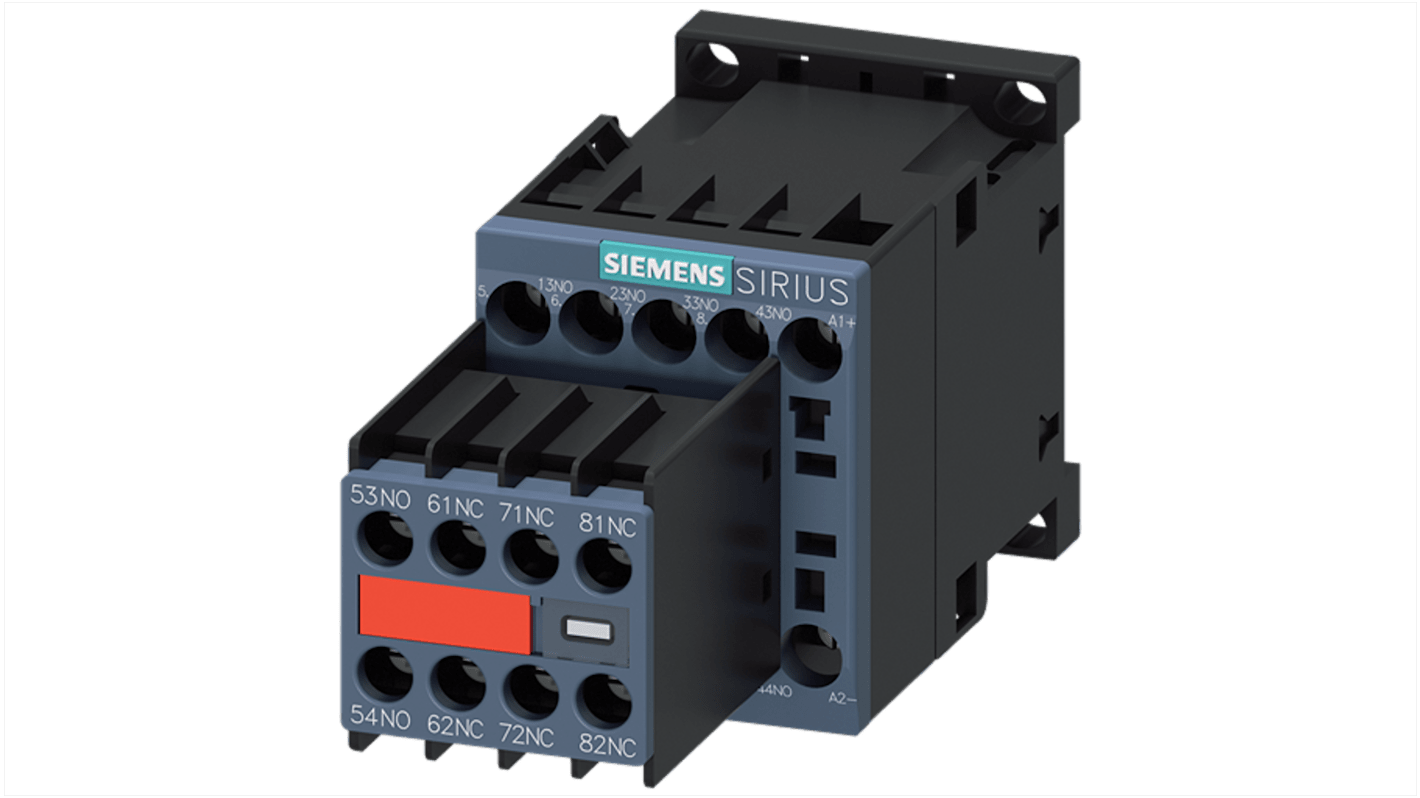

Siemens, 3RH2 Contactor Relay 3 NO/5 NC, 10A Contact Rating, 24V dc
- RS-stocknr.:
- 156-228
- Fabrikantnummer:
- 3RH2253-1BB40
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 89,28
(excl. BTW)
€ 108,03
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 25 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 89,28 |
*prijsindicatie
- RS-stocknr.:
- 156-228
- Fabrikantnummer:
- 3RH2253-1BB40
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Series | 3RH2 | |
| Mount Type | Screw and Snap-On | |
| Terminal Type | Screw | |
| Normal State Configuration | 3 NO/5 NC | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 8 | |
| Width | 45mm | |
| Maximum Operating Temperature | 60°C | |
| Length | 57.5mm | |
| Depth | 117mm | |
| Standards/Approvals | CCC, CE, EAC, UKCSA, UL | |
| Control Voltage | 24V dc | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Series 3RH2 | ||
Mount Type Screw and Snap-On | ||
Terminal Type Screw | ||
Normal State Configuration 3 NO/5 NC | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 8 | ||
Width 45mm | ||
Maximum Operating Temperature 60°C | ||
Length 57.5mm | ||
Depth 117mm | ||
Standards/Approvals CCC, CE, EAC, UKCSA, UL | ||
Control Voltage 24V dc | ||
- Land van herkomst:
- DE
The Siemens Contactor relay is designed for reliable operation in diverse industrial conditions. It supports both AC and DC circuits with a robust design and a mechanical service life of up to 10 million cycles, ensuring durability and longevity. Its compact size allows for seamless integration into existing systems, while auxiliary contacts enhance functionality for complex control tasks. Meeting advanced safety standards, this relay is dependable for critical applications and meets stringent performance requirements
High operational current ratings for enhanced performance
Easy installation on standard DIN rails
Efficient energy consumption with low power loss
Wide temperature range for reliable operation
Advanced safety features meeting international standards
Compact size for space saving installations
Proven shock and vibration resistance
Extensive online support available
