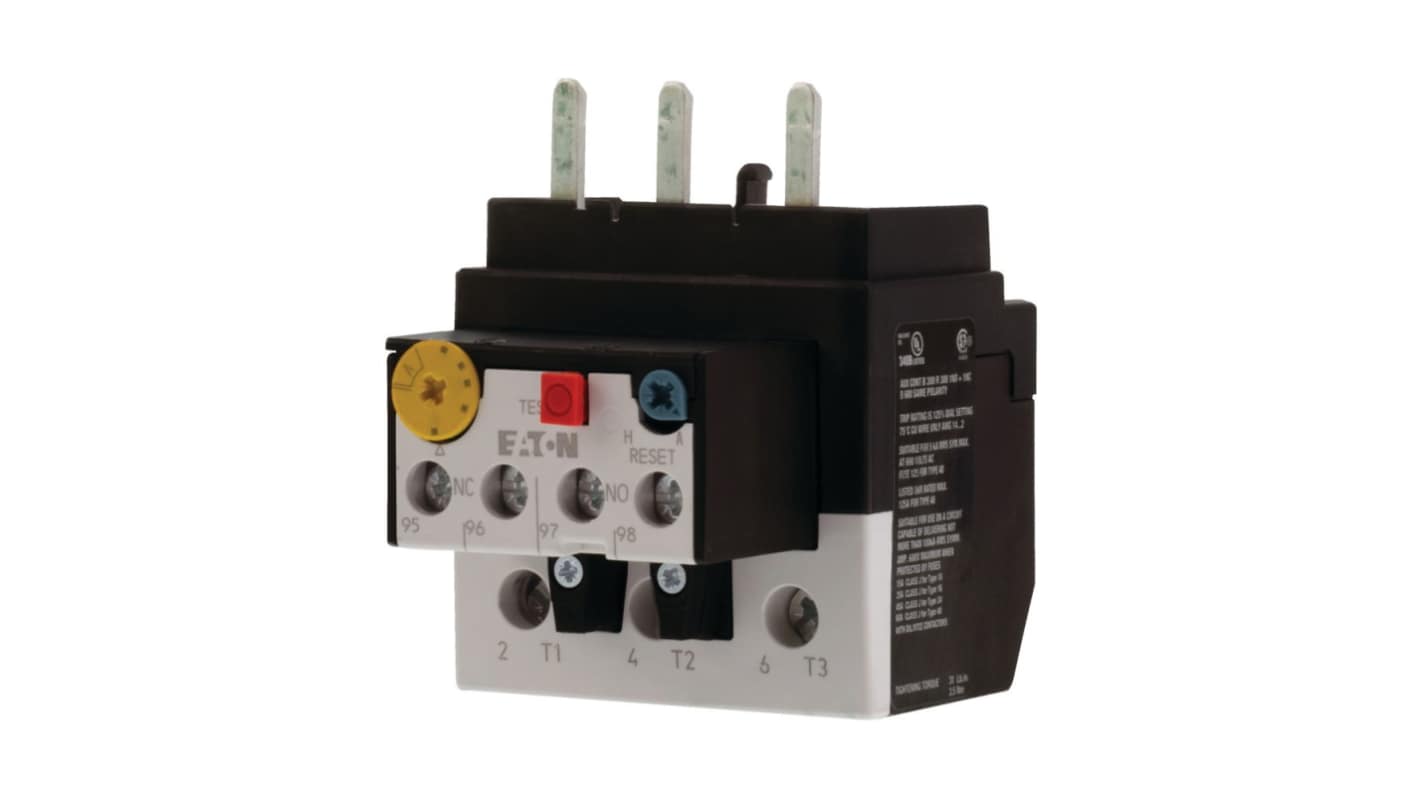

Eaton, ZEB Overload Relay 1 NO/1 NC, 65A, 75 A F.L.C, 75A Contact Rating, 690V 1P

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 197,00

(excl. BTW)

€ 238,37

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Voorradig bij de fabrikant
  • Klaar voor verzending vanaf 15 juni 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 197,00

*prijsindicatie

RS-stocknr.:
231-466
Fabrikantnummer:
108792 ZB65-75
Fabrikant:
Eaton
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Eaton

FLC Motor Rating

65, 75A

Product Type

Overload Relay

Relay Contact Current

75A

Series

ZEB

Pole and Throw Configuration

1P

Normal State Configuration

1 NO/1 NC

Terminal Type

Screw

IP Rating

IP00

Reset Method

Push Button

Minimum Operating Temperature

-25°C

Number of Auxiliary Contacts

2

Width

60mm

Adjustable Current Range

65 to 75 A

Maximum Operating Temperature

55°C

Length

88mm

Depth

75mm

Standards/Approvals

VDE 0660 CSA-C22.2 No. 60947-4-1-14 IEC/EN 60947-4-1 IEC/EN 60947 CSA 012528 UL 60947-4-1 UL NKCR CE CSA Class No.:3211-03 CSA UL E29184 UL

Control Voltage

690V

Vrijgesteld

Land van herkomst:
DE
The Eaton Thermal overload relay is engineered to provide reliable protection for motors within the 65 to 75 A range. Designed for direct mounting, it ensures ease of installation while maintaining a robust IP00 rating. With an adjustable overload release setting, this unit not only allows for precise current control but also enhances operational efficiency and safety within electrical systems.

Offers enhanced corrosion resistance for prolonged service life

Robust mechanical structure capable of withstanding significant shock

Features integrated test/off button for quick diagnostic checks

Supports diverse thermal stability verification processes
