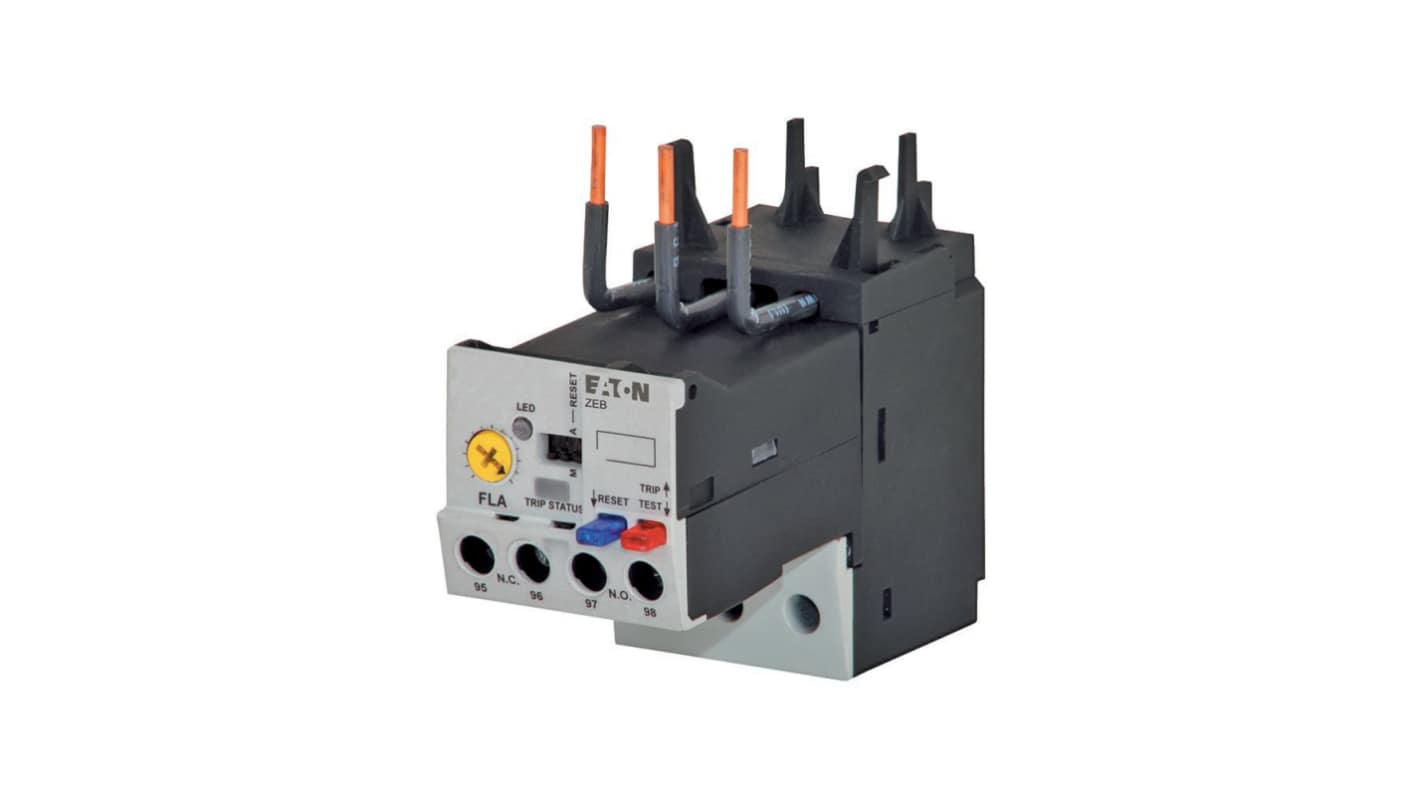

Eaton, ZEB Overload Relay 1 NO/1 NC, 1A, 5 A F.L.C, 5A Contact Rating, 690V 1P

RS-stocknr.:: 247-798
Fabrikantnummer:: 136491 ZEB32-5-GF
Fabrikant:: Eaton

Eaton, ZEB Overload Relay 1 NO/1 NC, 1A, 5 A F.L.C, 5A Contact Rating, 690V 1P

Subtotaal (1 eenheid)*

€ 241,00

(excl. BTW)

€ 291,61

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Voorradig bij de fabrikant

Klaar voor verzending vanaf 17 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 241,00

*prijsindicatie

RS-stocknr.:: 247-798
Fabrikantnummer:: 136491 ZEB32-5-GF
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Product Type	Overload Relay
	FLC Motor Rating	1, 5A
	Relay Contact Current	5A
	Series	ZEB
	Mount Type	Direct
	Pole and Throw Configuration	1P
	Terminal Type	Screw
	Normal State Configuration	1 NO/1 NC
	Reset Method	Push Button
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Width	45mm
	Number of Auxiliary Contacts	2
	Adjustable Current Range	1 to 5 A
	Maximum Operating Temperature	65°C
	Length	108mm
	Depth	110mm
	Standards/Approvals	IEC/EN 60947-4-1 UL UL 508 UL File No.:E1230 CSA Class No.:3211-03 CSA-C22.2 No. 14 CE VDE 0660 UL Category Control No.:NKCR IEC/EN 60947 CSA CSA File No.:2290956
	Control Voltage	690V

	Alles selecteren
	Merk Eaton
	Product Type Overload Relay
	FLC Motor Rating 1, 5A
	Relay Contact Current 5A
	Series ZEB
	Mount Type Direct
	Pole and Throw Configuration 1P
	Terminal Type Screw
	Normal State Configuration 1 NO/1 NC
	Reset Method Push Button
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Width 45mm
	Number of Auxiliary Contacts 2
	Adjustable Current Range 1 to 5 A
	Maximum Operating Temperature 65°C
	Length 108mm
	Depth 110mm
	Standards/Approvals IEC/EN 60947-4-1 UL UL 508 UL File No.:E1230 CSA Class No.:3211-03 CSA-C22.2 No. 14 CE VDE 0660 UL Category Control No.:NKCR IEC/EN 60947 CSA CSA File No.:2290956
	Control Voltage 690V

Datasheet - 136491 ZEB32-5-GF

Vrijgesteld

Land van herkomst:: DO

The Eaton Moeller series ZEB Electronic overload relay is engineered for excellence in performance and reliability. This cutting-edge device is designed for direct mounting applications, integrating earth-fault protection with an adjustable current range to suit a variety of operational needs. Providing vital safeguards, it ensures efficient management of overloads while streamlining installation processes. The overload relay features a robust design, complying with rigorous industry standards, making it a trusted component for panel builders. With comprehensive certifications including CSA, UL, and IEC/EN standards, this product stands as a benchmark in safety and efficiency, ensuring that your electrical systems function optimally under various conditions. Ideal for demanding industrial environments, The Eaton series enhances operational integrity whilst protecting your systems from faults and ensuring longevity.

Offers earth-fault protection for enhanced safety

Designed for direct mounting, facilitating straightforward installation

Features a compact footprint, ideal for space-constrained applications

Provides automatic and push-button reset functions for convenience

Compatible with both AC and DC voltages, enhancing versatility

Supports a broad range of rated operational currents for diverse applications

Equipped with mechanical shock resistance compliant with international standards

Includes detailed heat dissipation data to aid in panel design

Features a high degree of protection against dust and liquids

Ensures safe isolation between auxiliary and main contacts

Eaton, ZEB Overload Relay 1 NO/1 NC, 1A, 5 A F.L.C, 5A Contact Rating, 690V 1P
