Eaton Contactor Relay 1 NO/1 NC, 45A Contact Rating, 690V

RS-stocknr.:: 240-060
Fabrikantnummer:: 136489 ZEB32-45
Fabrikant:: Eaton

Eaton Contactor Relay 1 NO/1 NC, 45A Contact Rating, 690V

Subtotaal (1 eenheid)*

€ 147,00

(excl. BTW)

€ 177,87

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Voorradig bij de fabrikant

Klaar voor verzending vanaf 06 juli 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 147,00

*prijsindicatie

RS-stocknr.:: 240-060
Fabrikantnummer:: 136489 ZEB32-45
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Product Type	Contactor Relay
	Relay Contact Current	45A
	Series	Eaton Moeller
	Mount Type	Direct
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	Reset Method	Push Button
	IP Rating	IP20
	Number of Auxiliary Contacts	2
	Minimum Operating Temperature	-25°C
	Adjustable Current Range	9 to 45 A
	Width	45mm
	Length	108mm
	Maximum Operating Temperature	65°C
	Standards/Approvals	UL File No.:E1230 UL VDE 0660 CE CSA Class No.:3211-03 CSA-C22.2 No. 14 IEC/EN 60947 UL 508 CSA IEC/EN 60947-4-1 UL Category Control No.:NKCR CSA File No.:2290956
	Depth	110mm
	Control Voltage	690V

	Alles selecteren
	Merk Eaton
	Product Type Contactor Relay
	Relay Contact Current 45A
	Series Eaton Moeller
	Mount Type Direct
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	Reset Method Push Button
	IP Rating IP20
	Number of Auxiliary Contacts 2
	Minimum Operating Temperature -25°C
	Adjustable Current Range 9 to 45 A
	Width 45mm
	Length 108mm
	Maximum Operating Temperature 65°C
	Standards/Approvals UL File No.:E1230 UL VDE 0660 CE CSA Class No.:3211-03 CSA-C22.2 No. 14 IEC/EN 60947 UL 508 CSA IEC/EN 60947-4-1 UL Category Control No.:NKCR CSA File No.:2290956
	Depth 110mm
	Control Voltage 690V

Datasheet - 136489 ZEB32-45

Vrijgesteld

Land van herkomst:: DO

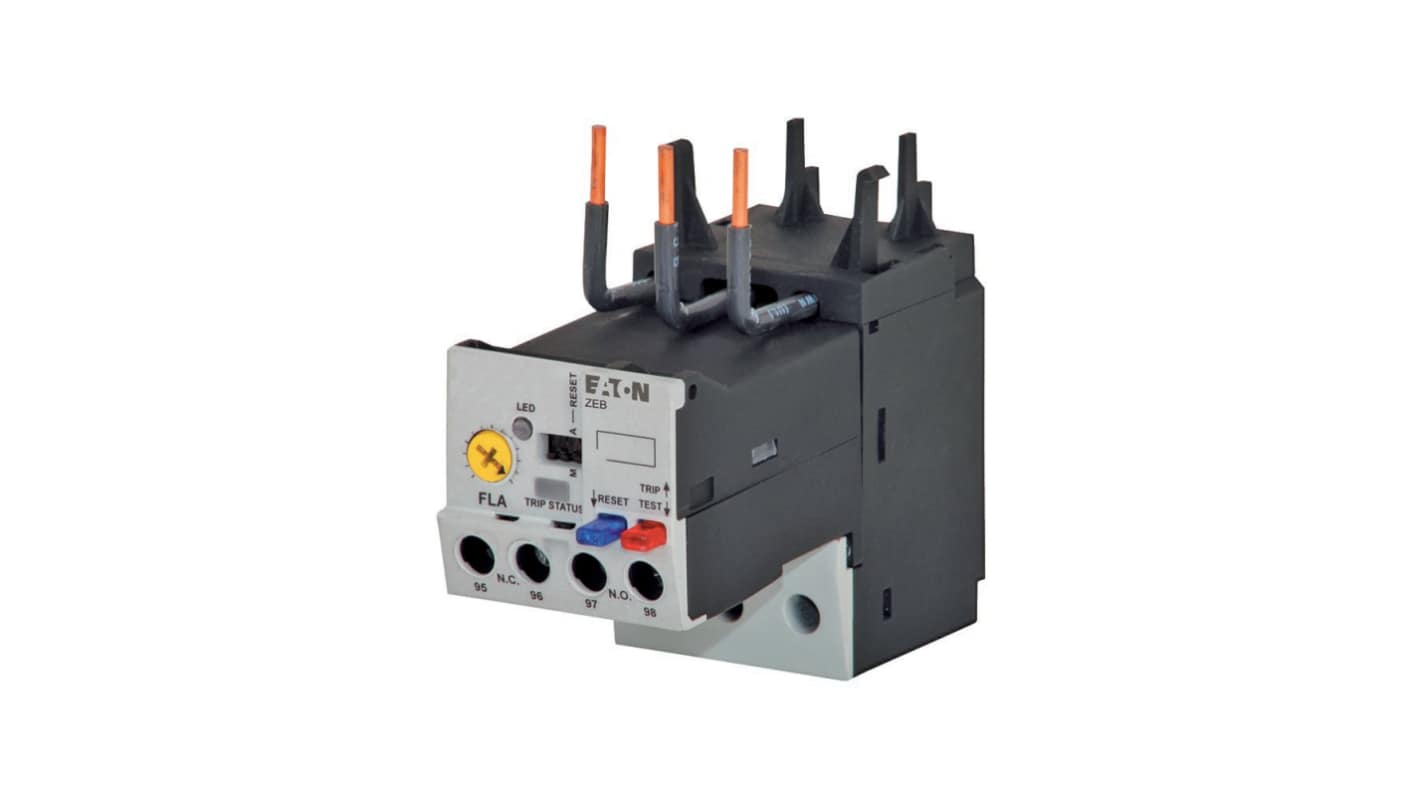

The Eaton electronic overload relay is designed for direct mounting and is ideal for protecting against overload conditions in various applications. Engineered with robust features, it accommodates a current rating range of 9 to 45 A, making it suitable for diverse industrial settings. Notably, this model integrates earth-fault protection and phase-failure sensitivity, ensuring enhanced operational reliability. Its thoughtful construction balances performance with user-friendliness, providing both manual and automatic reset functions. The overload relay stands out with an IP20 degree of protection, safeguarding its internal components from dust and contact with hands, while optimising thermal management with low heat dissipation levels. Aimed at delivering dependable performance, it seamlessly combines efficiency and safety for demanding electrical systems.

Directly mounts for convenient installation in electrical systems

Offers automatic and push-button reset functions for user flexibility

Features phase-failure sensitivity to maintain operational consistency

Designed with an IP20 rating to protect internal components from dust

Includes earth-fault protection for additional safety against failures

Capable of handling a substantial current rating, suiting various industrial requirements

Constructed to operate effectively within a wide temperature range

Compatible with multiple auxiliary contacts to meet specific circuit needs

Ensures reliable performance through comprehensive testing against international standards

Eaton Contactor Relay 1 NO/1 NC, 45A Contact Rating, 690V
