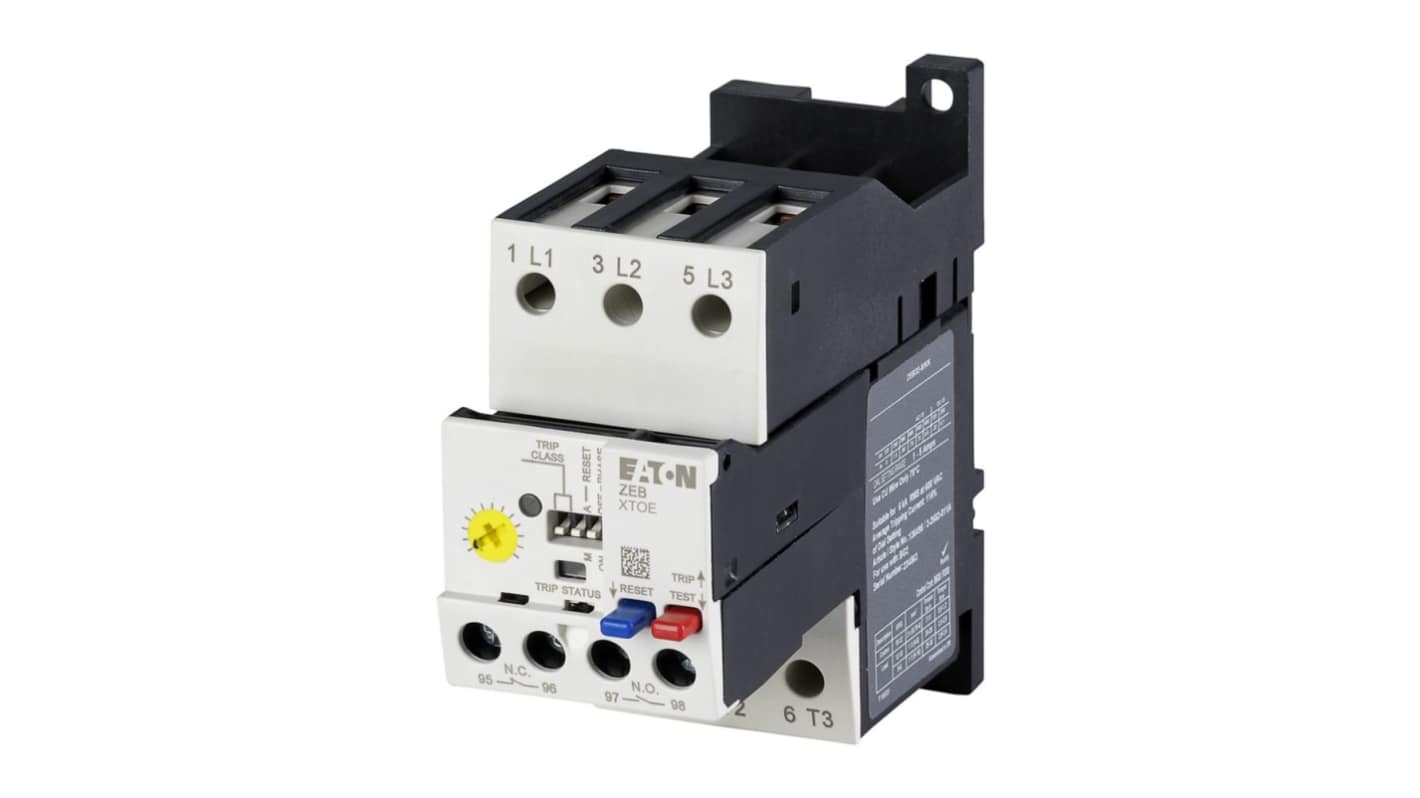

Eaton, ZEB Overload Relay 1 NO/1 NC, 45A, 9 A F.L.C, 45A Contact Rating, 690V 1P
- RS-stocknr.:
- 243-360
- Fabrikantnummer:
- 136501 ZEB32-45-GF/KK
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 248,00
(excl. BTW)
€ 300,08
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 28 juli 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 248,00 |
*prijsindicatie
- RS-stocknr.:
- 243-360
- Fabrikantnummer:
- 136501 ZEB32-45-GF/KK
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| FLC Motor Rating | 45, 9A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 45A | |
| Series | ZEB | |
| Pole and Throw Configuration | 1P | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Push Button | |
| IP Rating | IP20 | |
| Number of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 9 to 45 A | |
| Length | 108mm | |
| Maximum Operating Temperature | 65°C | |
| Depth | 110mm | |
| Standards/Approvals | CE UL File No.:E1230 CSA File No.:2290956 CSA Class No.:3211-03 UL UL 508 CSA-C22.2 No. 14 IEC/EN 60947 VDE 0660 CSA UL Category Control No.:NKCR IEC/EN 60947-4-1 | |
| Control Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
FLC Motor Rating 45, 9A | ||
Product Type Overload Relay | ||
Relay Contact Current 45A | ||
Series ZEB | ||
Pole and Throw Configuration 1P | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Push Button | ||
IP Rating IP20 | ||
Number of Auxiliary Contacts 2 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 9 to 45 A | ||
Length 108mm | ||
Maximum Operating Temperature 65°C | ||
Depth 110mm | ||
Standards/Approvals CE UL File No.:E1230 CSA File No.:2290956 CSA Class No.:3211-03 UL UL 508 CSA-C22.2 No. 14 IEC/EN 60947 VDE 0660 CSA UL Category Control No.:NKCR IEC/EN 60947-4-1 | ||
Control Voltage 690V | ||
Vrijgesteld
- Land van herkomst:
- DO
The Eaton electronic overload relay from this renowned manufacturer is expertly designed for reliable and precise motor protection. Tailored for separate mounting, this innovative device incorporates earth-fault protection to ensure seamless operation within diverse applications. By accommodating current ranges from 9 to 45 A, it guarantees exceptional versatility while maintaining the highest level of operational reliability. This overload relay is engineered to meet rigorous international standards, featuring phase-failure sensitivity for nuanced fault detection. The product’s compact design ensures efficient integration into various control systems, ultimately enhancing overall performance and safety. With its robust certifications and dependable specifications, this overload relay stands out as an indispensable component for effective motor control, ensuring protection and efficiency in every application it serves.
Earth-fault protection enhances safety during operation
Phase-failure sensitivity allows for quick fault detection
Compact design facilitates easy installation into control systems
Rated thermal current capacity aligns for optimal performance
Automated reset function simplifies user interaction and maintenance
Designed to operate efficiently across a broad temperature range
Durable certifications support compliance with global safety standards
Mechanical design ensures robust shock resistance in challenging environments
