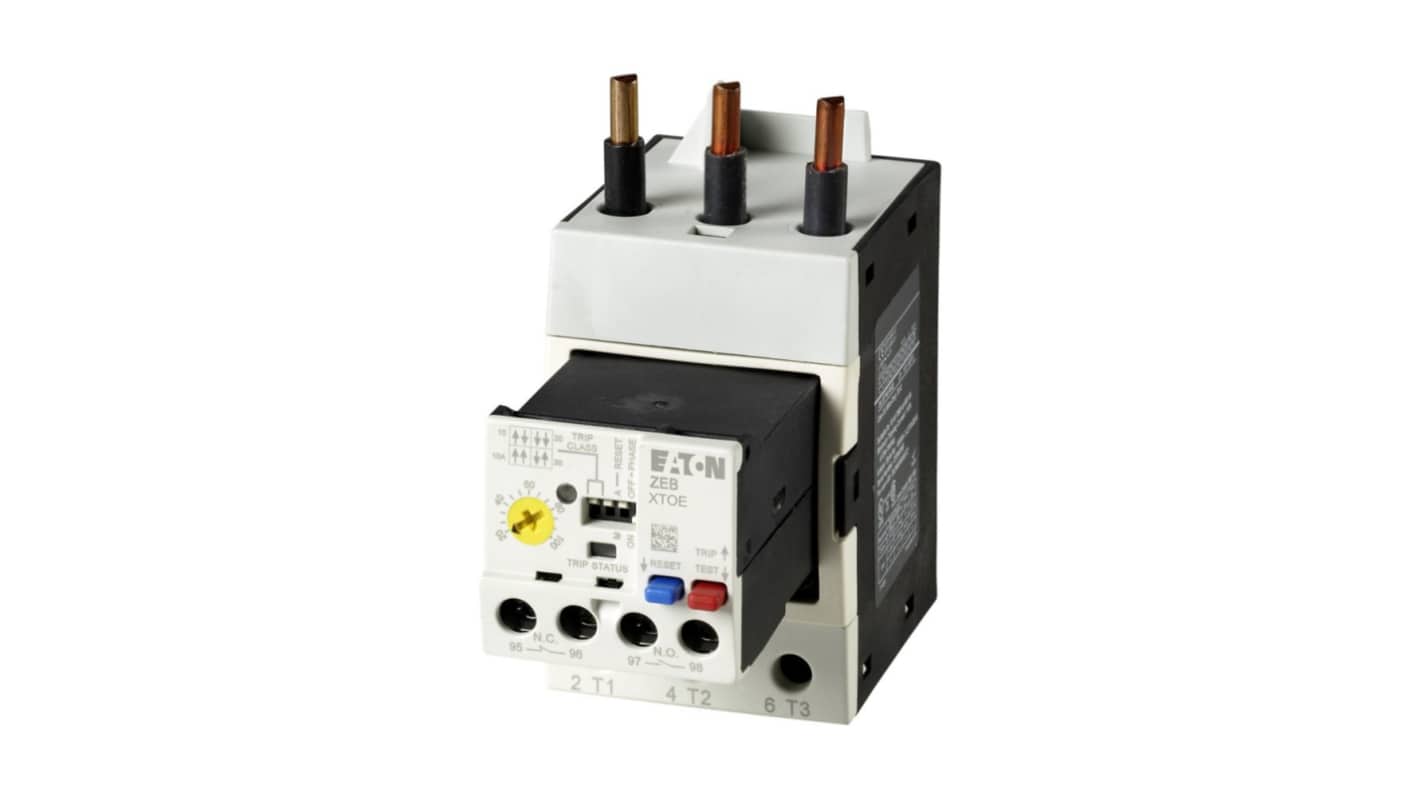

Eaton Electronic Overload Relay 1 NO/1 NC, 100A F.L.C, 5A Contact Rating, 690V 1P
- RS-stocknr.:
- 243-362
- Fabrikantnummer:
- 136504 ZEB65-100
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 239,00
(excl. BTW)
€ 289,19
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 239,00 |
*prijsindicatie
- RS-stocknr.:
- 243-362
- Fabrikantnummer:
- 136504 ZEB65-100
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| FLC Motor Rating | 100A | |
| Product Type | Electronic Overload Relay | |
| Relay Contact Current | 5A | |
| Mount Type | Direct | |
| Series | Moeller | |
| Pole and Throw Configuration | 1P | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Push Button | |
| Minimum Operating Temperature | -25°C | |
| Width | 56mm | |
| Adjustable Current Range | 20 to 100 A | |
| Number of Auxiliary Contacts | 2 | |
| Length | 136.3mm | |
| Maximum Operating Temperature | 65°C | |
| Depth | 116mm | |
| Standards/Approvals | UL NKCR CSA 2290956 CE CSA-C22.2 No. 14 UL IEC/EN 60947 CSA VDE 0660 UL 508 CSA Class No.:3211-03 UL E1230 IEC/EN 60947-4-1 | |
| Control Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
FLC Motor Rating 100A | ||
Product Type Electronic Overload Relay | ||
Relay Contact Current 5A | ||
Mount Type Direct | ||
Series Moeller | ||
Pole and Throw Configuration 1P | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Push Button | ||
Minimum Operating Temperature -25°C | ||
Width 56mm | ||
Adjustable Current Range 20 to 100 A | ||
Number of Auxiliary Contacts 2 | ||
Length 136.3mm | ||
Maximum Operating Temperature 65°C | ||
Depth 116mm | ||
Standards/Approvals UL NKCR CSA 2290956 CE CSA-C22.2 No. 14 UL IEC/EN 60947 CSA VDE 0660 UL 508 CSA Class No.:3211-03 UL E1230 IEC/EN 60947-4-1 | ||
Control Voltage 690V | ||
Vrijgesteld
- Land van herkomst:
- DO
The Eaton advanced electronic overload relay designed for direct mounting and optimal performance in various applications. Engineered to provide reliable protection against overload conditions, this device ensures safe functioning across a wide range of operating currents and meets rigorous safety standards. With no earth-fault protection, it excels in environments where such measures are unnecessary, providing peace of mind for operators. The relay features a straightforward manual and automatic reset functionality, allowing for flexible operation according to the demands of your setup. Additionally, it boasts a compact design, making it ideal for installations with space constraints while maintaining robust features that guarantee exceptional reliability. Ideal for integration with Eaton's extensive motor control solutions, the ZEB series is tailored for superior performance in any industrial setting.
Compact size and light weight facilitate easy installation and integration
Offers reliable overload protection to maintain motor safety and performance
Supports a broad operational current range, enhancing suitability for diverse applications
Includes manual and automatic reset options for greater operational flexibility
Designed with phase-failure sensitivity to prevent motor damage
Complies with international safety standards, ensuring user confidence and protection
Capable of operation in high ambient temperatures without compromising performance
