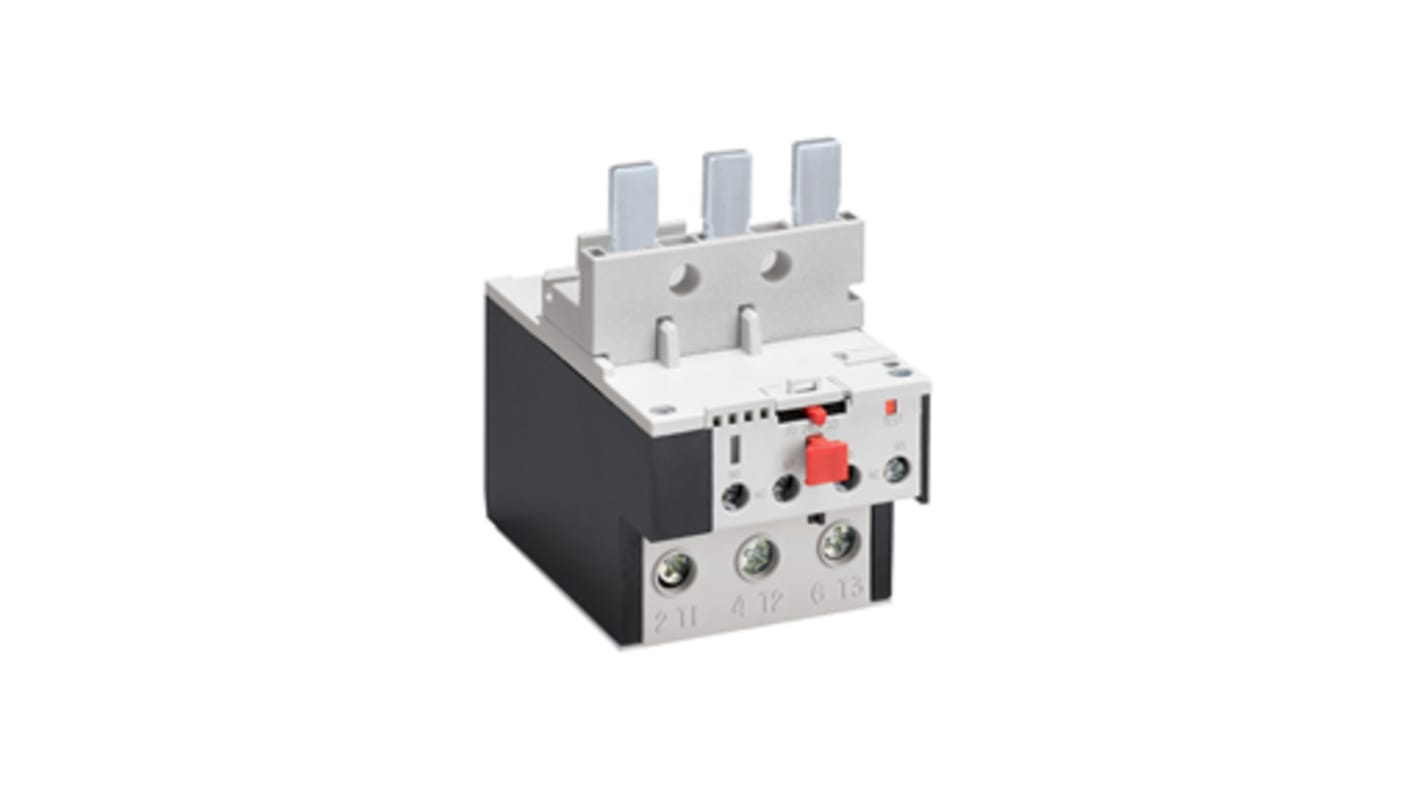

Lovato, RF82 Overload Relay 1 NO/1 NC, 20A, 33 A F.L.C, 82A Contact Rating, 690V ac 3
- RS-stocknr.:
- 146-9065
- Fabrikantnummer:
- RF823300
- Fabrikant:
- Lovato
Subtotaal (1 eenheid)*
€ 105,66
(excl. BTW)
€ 127,85
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 105,66 |
*prijsindicatie
- RS-stocknr.:
- 146-9065
- Fabrikantnummer:
- RF823300
- Fabrikant:
- Lovato
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Lovato | |
| FLC Motor Rating | 20, 33A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 82A | |
| Mount Type | Direct | |
| Series | RF82 | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Width | 55mm | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 20 to 33 A | |
| Maximum Operating Temperature | 55°C | |
| Length | 194mm | |
| Contact Voltage | 690V | |
| Standards/Approvals | CSA C22.2 No. 14, cULus, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 | |
| Depth | 114.5mm | |
| Control Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Lovato | ||
FLC Motor Rating 20, 33A | ||
Product Type Overload Relay | ||
Relay Contact Current 82A | ||
Mount Type Direct | ||
Series RF82 | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Width 55mm | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 20 to 33 A | ||
Maximum Operating Temperature 55°C | ||
Length 194mm | ||
Contact Voltage 690V | ||
Standards/Approvals CSA C22.2 No. 14, cULus, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 | ||
Depth 114.5mm | ||
Control Voltage 690V ac | ||
Type RF38, phase failure sensitive, manual or automatic resetting
Type RFN38, non phase failure sensitive, manual or automatic resetting
Type RF82 and RF95, phase failure sensitive, manual resetting
Type RFA82 and RFA95, phase failure sensitive, automatic resetting
Type RFN82 and RFN95, non phase failure sensitive, manual resetting
Type RFNA82 and RFNA95, non phase failure sensitive, automatic resetting
