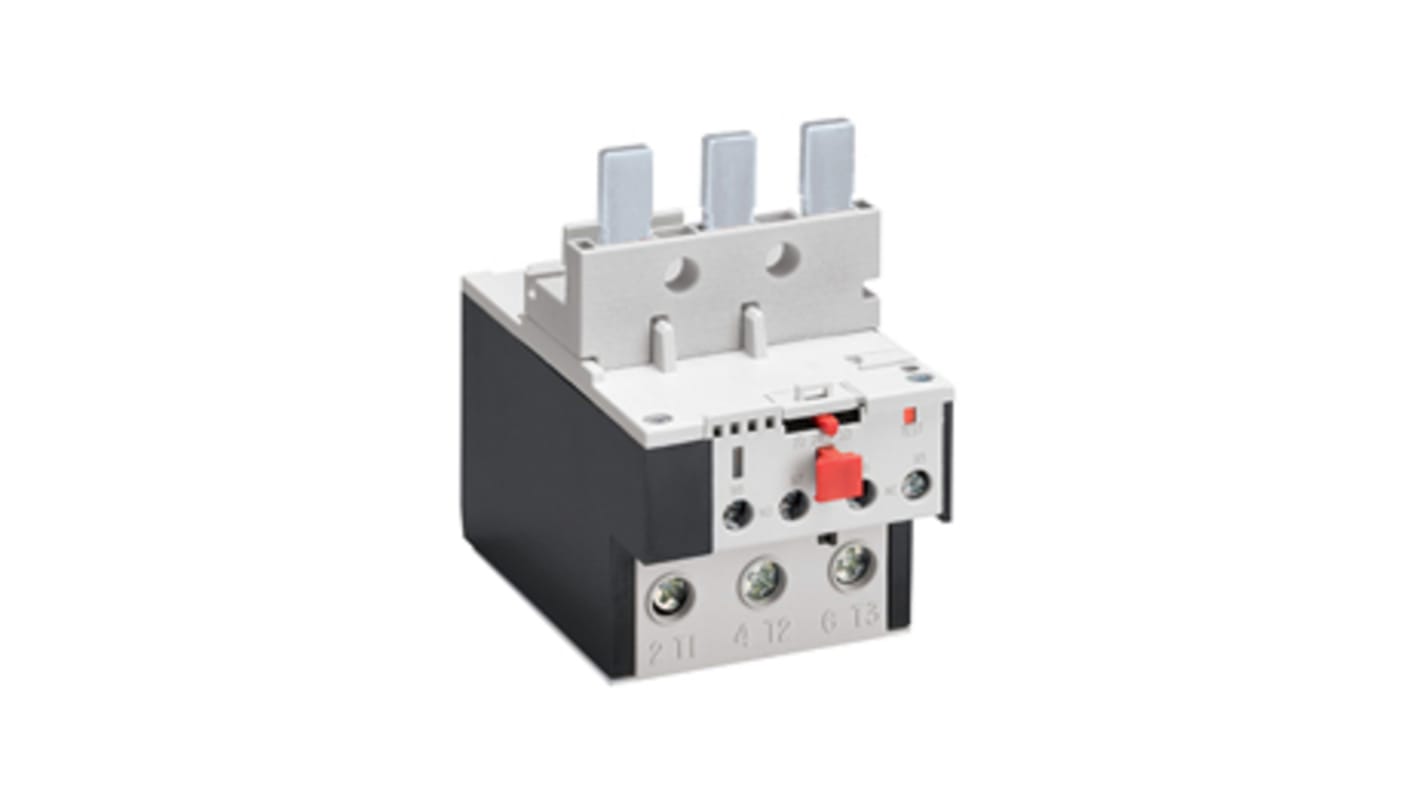

Lovato, RF82 Overload Relay 1 NO/1 NC, 35A, 50 A F.L.C, 82A Contact Rating, 690V ac 3
- RS-stocknr.:
- 146-9067
- Fabrikantnummer:
- RF825000
- Fabrikant:
- Lovato
Subtotaal (1 eenheid)*
€ 129,83
(excl. BTW)
€ 157,09
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 28 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 129,83 |
*prijsindicatie
- RS-stocknr.:
- 146-9067
- Fabrikantnummer:
- RF825000
- Fabrikant:
- Lovato
Specificaties
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Lovato | |
| FLC Motor Rating | 35, 50A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 82A | |
| Mount Type | Direct | |
| Series | RF82 | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Adjustable Current Range | 35 → 50 A | |
| Number of Auxiliary Contacts | 2 | |
| Width | 55mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 194mm | |
| Maximum Operating Temperature | 55°C | |
| Contact Voltage | 690V | |
| Depth | 114.5mm | |
| Standards/Approvals | UL 508, IEC/EN 60947-4-1, IEC/EN 60947-1, cULus, CSA C22.2 No. 14 | |
| Control Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Lovato | ||
FLC Motor Rating 35, 50A | ||
Product Type Overload Relay | ||
Relay Contact Current 82A | ||
Mount Type Direct | ||
Series RF82 | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Adjustable Current Range 35 → 50 A | ||
Number of Auxiliary Contacts 2 | ||
Width 55mm | ||
Minimum Operating Temperature -20°C | ||
Length 194mm | ||
Maximum Operating Temperature 55°C | ||
Contact Voltage 690V | ||
Depth 114.5mm | ||
Standards/Approvals UL 508, IEC/EN 60947-4-1, IEC/EN 60947-1, cULus, CSA C22.2 No. 14 | ||
Control Voltage 690V ac | ||
- Land van herkomst:
- IT
Type RF38, phase failure sensitive, manual or automatic resetting
Type RFN38, non phase failure sensitive, manual or automatic resetting
Type RF82 and RF95, phase failure sensitive, manual resetting
Type RFA82 and RFA95, phase failure sensitive, automatic resetting
Type RFN82 and RFN95, non phase failure sensitive, manual resetting
Type RFNA82 and RFNA95, non phase failure sensitive, automatic resetting
