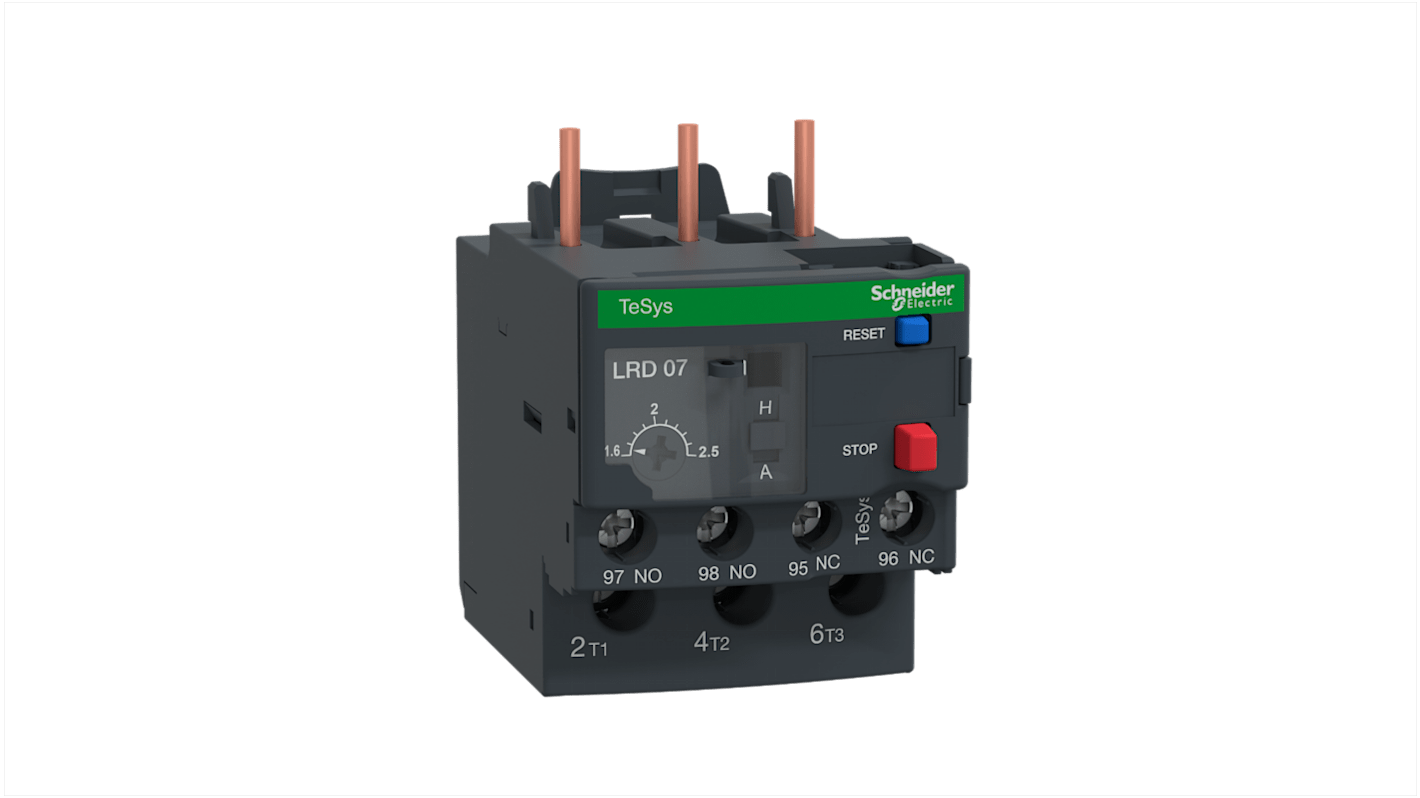

Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, 1.6A, 2.5 A F.L.C, 2.5A Contact Rating, 750 W 3
- RS-stocknr.:
- 188-4705
- Artikelnummer Distrelec:
- 304-22-017
- Fabrikantnummer:
- LR3D07
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 73,41
(excl. BTW)
€ 88,83
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 6 stuk(s) vanaf 17 augustus 2026
- Plus verzending 18 stuk(s) vanaf 17 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 73,41 |
*prijsindicatie
- RS-stocknr.:
- 188-4705
- Artikelnummer Distrelec:
- 304-22-017
- Fabrikantnummer:
- LR3D07
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| FLC Motor Rating | 1.6, 2.5A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 2.5A | |
| Mount Type | DIN Rail | |
| Series | TeSyS LR | |
| Pole and Throw Configuration | 3 | |
| Power Rating | 750W | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Push Button | |
| Minimum Operating Temperature | -20°C | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 1.6 → 2.5 A | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 690V ac | |
| Length | 66mm | |
| Standards/Approvals | CCC, RINA, LROS, IEC, EN/IEC 60947, EN 50495EN, EAC, DNV GL, CSA, BV, ATEX | |
| Depth | 70mm | |
| Supply Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
FLC Motor Rating 1.6, 2.5A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 2.5A | ||
Mount Type DIN Rail | ||
Series TeSyS LR | ||
Pole and Throw Configuration 3 | ||
Power Rating 750W | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Push Button | ||
Minimum Operating Temperature -20°C | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 1.6 → 2.5 A | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 690V ac | ||
Length 66mm | ||
Standards/Approvals CCC, RINA, LROS, IEC, EN/IEC 60947, EN 50495EN, EAC, DNV GL, CSA, BV, ATEX | ||
Depth 70mm | ||
Supply Voltage 690V ac | ||
TeSys LRD thermal overload relays - 1.6...2.5 A - class 10A
