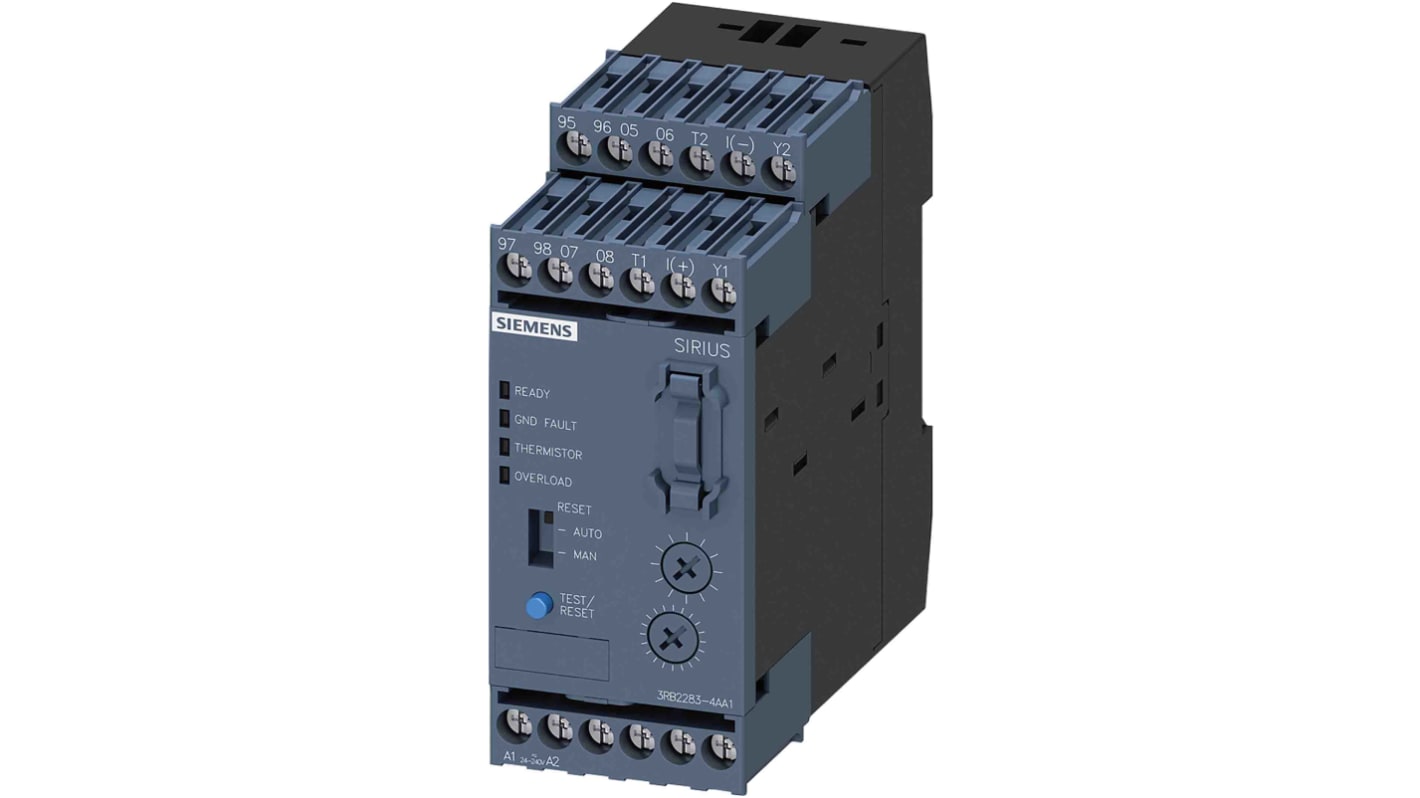

Siemens, 3RB Overload Relay 2 NC/2 NO, 300 mA, 630A F.L.C, 630A Contact Rating 3P
- RS-stocknr.:
- 213-0544
- Fabrikantnummer:
- 3RB2383-4AA1
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 641,35
(excl. BTW)
€ 776,03
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 30 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 641,35 |
*prijsindicatie
- RS-stocknr.:
- 213-0544
- Fabrikantnummer:
- 3RB2383-4AA1
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 300mA, 630mA | |
| Relay Contact Current | 630A | |
| Mount Type | Stand Alone | |
| Series | 3RB | |
| Pole and Throw Configuration | 3P | |
| Terminal Type | Screw | |
| Normal State Configuration | 2 NC/2 NO | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 4 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 111mm | |
| Depth | 95mm | |
| Standards/Approvals | UL, IEC 81346-2, EAC, IEC 60529, CSA, CE, CCC | |
| Supply Voltage | 240V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Overload Relay | ||
FLC Motor Rating 300mA, 630mA | ||
Relay Contact Current 630A | ||
Mount Type Stand Alone | ||
Series 3RB | ||
Pole and Throw Configuration 3P | ||
Terminal Type Screw | ||
Normal State Configuration 2 NC/2 NO | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Width 45mm | ||
Number of Auxiliary Contacts 4 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Length 111mm | ||
Depth 95mm | ||
Standards/Approvals UL, IEC 81346-2, EAC, IEC 60529, CSA, CE, CCC | ||
Supply Voltage 240V | ||
- Land van herkomst:
- DE
The Siemens SIRIUS 3RB series is manual-automatic reset solid-state overload relay used for higher-level applications for the current and temperature-based protection of loads with normal and heavy starting against impermissibly high heat generation. The type of electrical connection for main circuit and auxiliary circuit is through screw terminal.
Due to wide current setting ranges and various tripping characteristics, entire series of motors are covered with just a few types. It has low heat loss which makes it energy-efficient and help to minimize temperature rises in the control cabinet.
Ambient operating temperature is -25 to +60 °C
Operating frequency is 50 to 60 Hz
Trip class is CLASS 5, 10, 20 and 30 adjustable
