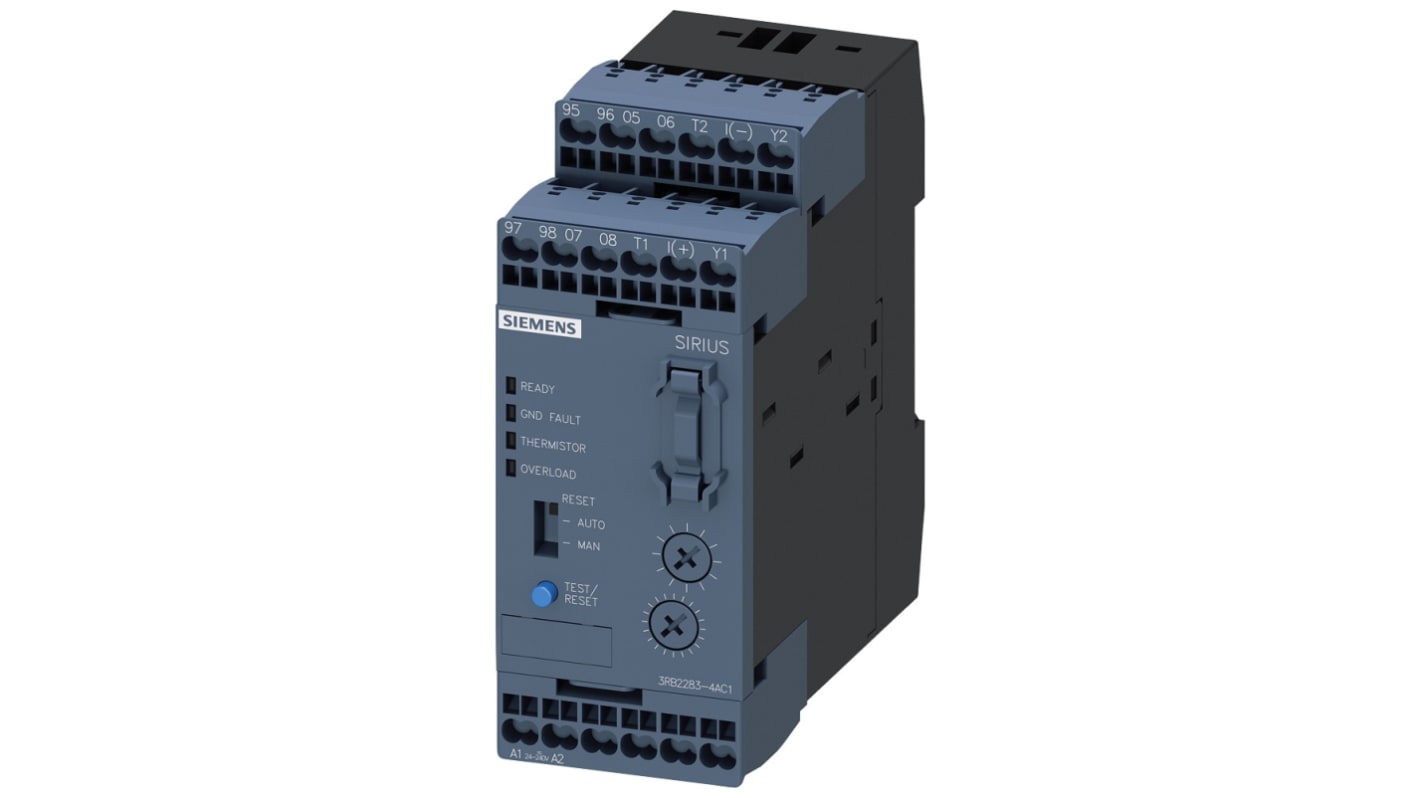

Siemens, 3RB Overload Relay 2 NO/2 NC, Trip Dial: 5 → 30 A, 300 mA, 630A F.L.C, 630A Contact Rating, 0.5 W 3P
- RS-stocknr.:
- 255-0827
- Fabrikantnummer:
- 3RB22834AC1
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 474,70
(excl. BTW)
€ 574,39
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 23 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 474,70 |
*prijsindicatie
- RS-stocknr.:
- 255-0827
- Fabrikantnummer:
- 3RB22834AC1
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 300mA, 630mA | |
| Relay Contact Current | 630A | |
| Mount Type | Contactor Mount | |
| Series | 3RB | |
| Power Rating | 0.5W | |
| Pole and Throw Configuration | 3P | |
| Normal State Configuration | 2 NO/2 NC | |
| Terminal Type | Spring Terminal | |
| IP Rating | IP20, IP00 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 5 → 30 A | |
| Width | 5.12mm | |
| Number of Auxiliary Contacts | 4 | |
| Minimum Operating Temperature | -25°C | |
| Length | 4.37mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RCM, EAC, CCC, CE, CSA | |
| Depth | 95mm | |
| Control Voltage | 240V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Overload Relay | ||
FLC Motor Rating 300mA, 630mA | ||
Relay Contact Current 630A | ||
Mount Type Contactor Mount | ||
Series 3RB | ||
Power Rating 0.5W | ||
Pole and Throw Configuration 3P | ||
Normal State Configuration 2 NO/2 NC | ||
Terminal Type Spring Terminal | ||
IP Rating IP20, IP00 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 5 → 30 A | ||
Width 5.12mm | ||
Number of Auxiliary Contacts 4 | ||
Minimum Operating Temperature -25°C | ||
Length 4.37mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RCM, EAC, CCC, CE, CSA | ||
Depth 95mm | ||
Control Voltage 240V | ||
- Land van herkomst:
- DE
The Siemens electronic overload relays are used to protect the loads against high-resistance short circuits due to damage to the insulation, humidity, condensed water, etc. They have been designed for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase asymmetry or phase failure. An overload, phase asymmetry or phase failure result in an increase of the motor current beyond the set rated motor current.
3 number of poles
