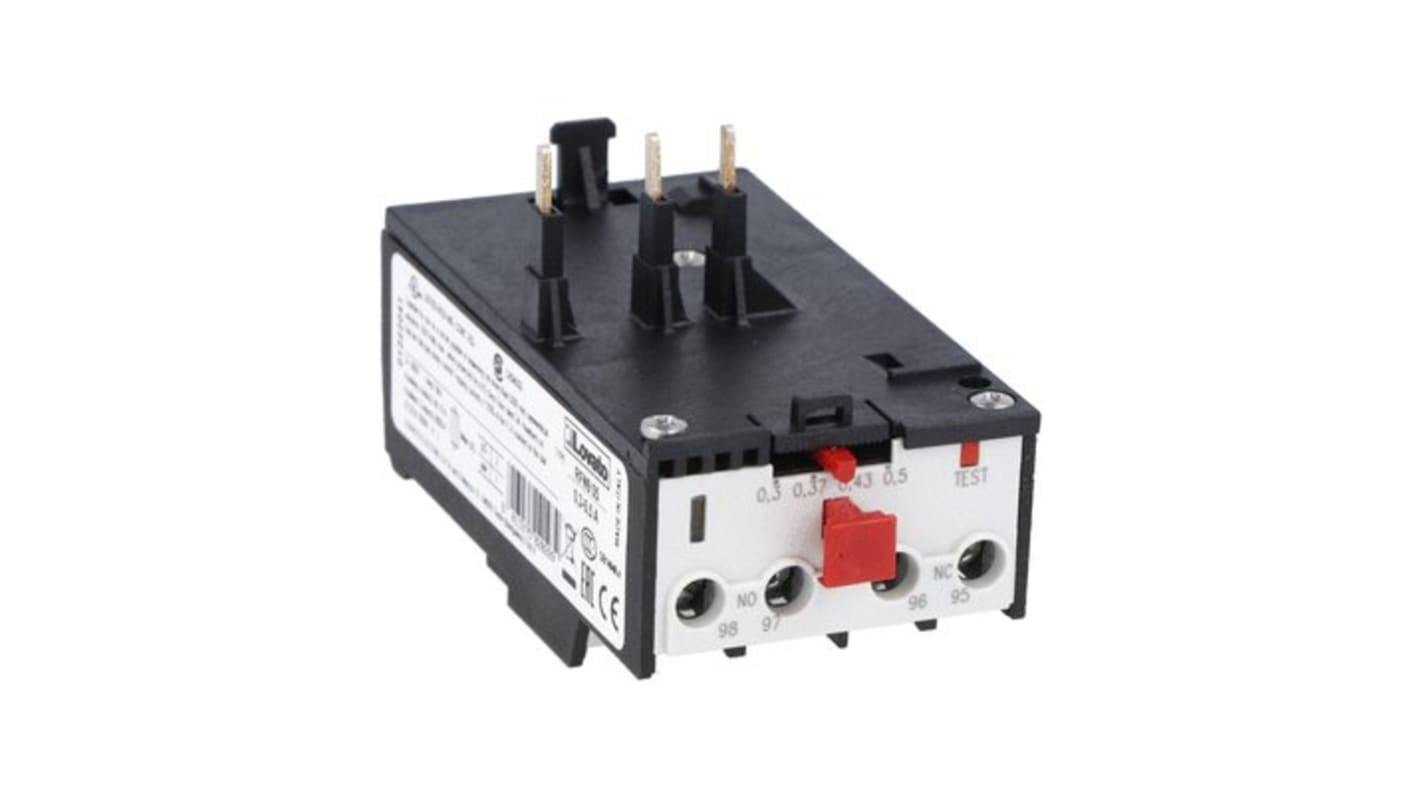

Lovato, 11RFN9 Control Relay 1 NO/1 NC, 0.15A F.L.C, 10A Contact Rating, 690V 3
- RS-stocknr.:
- 274-0522
- Fabrikantnummer:
- 11RFN9015
- Fabrikant:
- Lovato
Subtotaal (1 eenheid)*
€ 54,03
(excl. BTW)
€ 65,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 14 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 54,03 |
*prijsindicatie
- RS-stocknr.:
- 274-0522
- Fabrikantnummer:
- 11RFN9015
- Fabrikant:
- Lovato
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Lovato | |
| FLC Motor Rating | 0.15A | |
| Product Type | Control Relay | |
| Relay Contact Current | 10A | |
| Mount Type | Direct | |
| Series | 11RFN9 | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Manual | |
| Width | 9.8mm | |
| Adjustable Current Range | 0.09 → 0.15 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Length | 94.2mm | |
| Depth | 57mm | |
| Standards/Approvals | UL508, IEC/EN 60947-4-1, IEC/EN 60947-1, CSA C22.2 No 14 | |
| Control Voltage | 690V | |
| Supply Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Lovato | ||
FLC Motor Rating 0.15A | ||
Product Type Control Relay | ||
Relay Contact Current 10A | ||
Mount Type Direct | ||
Series 11RFN9 | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Manual | ||
Width 9.8mm | ||
Adjustable Current Range 0.09 → 0.15 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Length 94.2mm | ||
Depth 57mm | ||
Standards/Approvals UL508, IEC/EN 60947-4-1, IEC/EN 60947-1, CSA C22.2 No 14 | ||
Control Voltage 690V | ||
Supply Voltage 690V | ||
- Land van herkomst:
- IT
The Lovato motor protection relay that has phase failure detection with thermal type of release. It comes with three pole with automatic resetting and has test button with trip indicator.
Overvoltage category III
Pollution degree 3
