Lovato, 11RFN9 Control Relay 1 NO/1 NC, 0.75A F.L.C, 10A Contact Rating, 690V 3P
- RS-stocknr.:
- 274-0526
- Fabrikantnummer:
- 11RFN9075
- Fabrikant:
- Lovato
Subtotaal (1 eenheid)*
€ 54,03
(excl. BTW)
€ 65,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 29 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 54,03 |
*prijsindicatie
- RS-stocknr.:
- 274-0526
- Fabrikantnummer:
- 11RFN9075
- Fabrikant:
- Lovato
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Lovato | |
| Product Type | Control Relay | |
| FLC Motor Rating | 0.75A | |
| Relay Contact Current | 10A | |
| Mount Type | Direct | |
| Series | 11RFN9 | |
| Pole and Throw Configuration | 3P | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Manual | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Width | 9.8mm | |
| Adjustable Current Range | 0.45 → 0.75 A | |
| Maximum Operating Temperature | 55°C | |
| Length | 94.2mm | |
| Standards/Approvals | CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | |
| Depth | 57mm | |
| Supply Voltage | 690V | |
| Control Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Lovato | ||
Product Type Control Relay | ||
FLC Motor Rating 0.75A | ||
Relay Contact Current 10A | ||
Mount Type Direct | ||
Series 11RFN9 | ||
Pole and Throw Configuration 3P | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Manual | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Width 9.8mm | ||
Adjustable Current Range 0.45 → 0.75 A | ||
Maximum Operating Temperature 55°C | ||
Length 94.2mm | ||
Standards/Approvals CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | ||
Depth 57mm | ||
Supply Voltage 690V | ||
Control Voltage 690V | ||
- Land van herkomst:
- IT

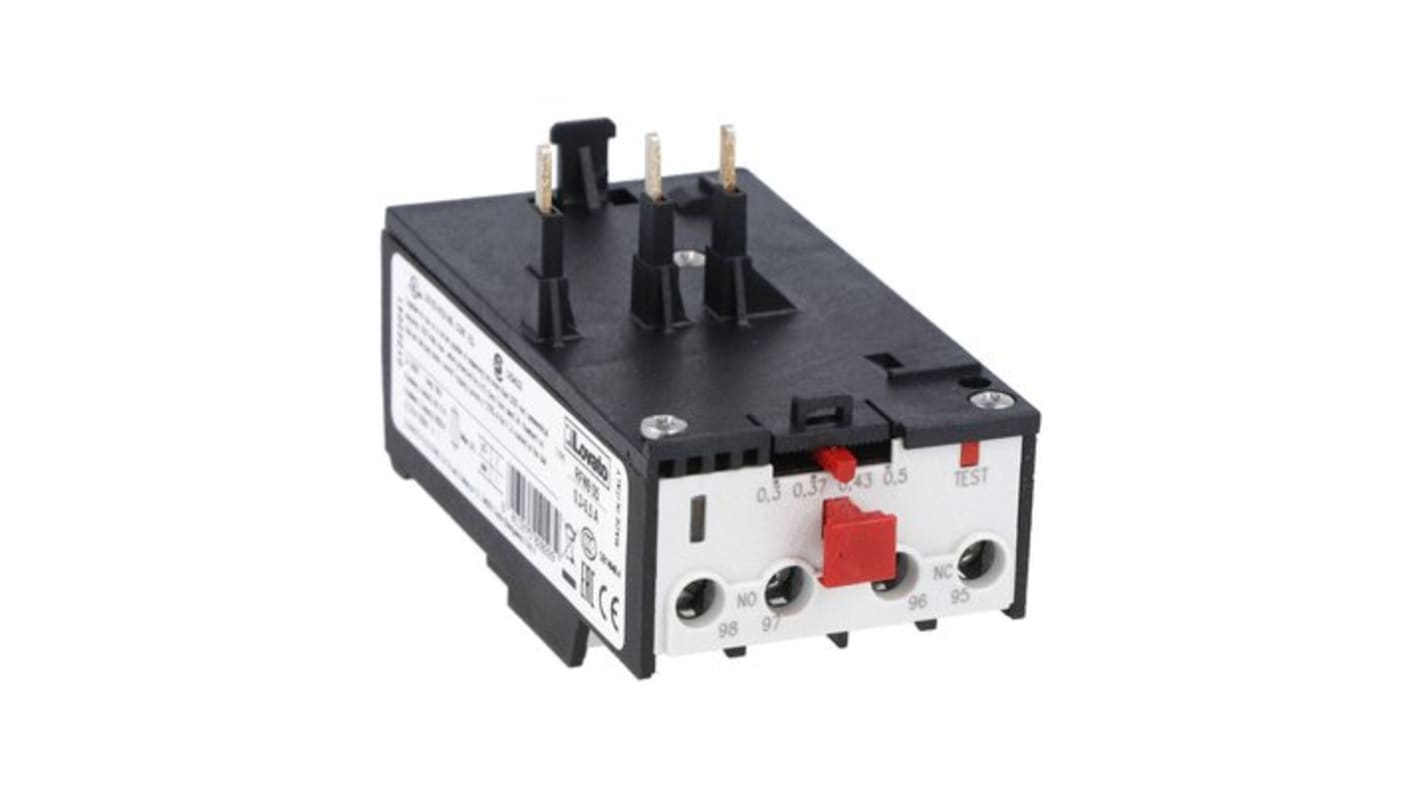

The Lovato motor protection relay that has phase failure detection with thermal type of release. It comes with three pole with automatic resetting and has test button with trip indicator.
Overvoltage category III
Pollution degree 3
