Schneider Electric, LR9D Overload Relay 1 NO/1 NC, Trip Dial: 90 → 150 A, 150A, 90 A F.L.C, 105A Contact Rating, 59 kW,

RS-stocknr.:: 312-4070
Fabrikantnummer:: LR9D5369
Fabrikant:: Schneider Electric

Schneider Electric, LR9D Overload Relay 1 NO/1 NC, Trip Dial: 90 → 150 A, 150A, 90 A F.L.C, 105A Contact Rating, 59 kW,

Momenteel niet beschikbaar

We weten niet of dit artikel weer voorradig zal zijn, het wordt door de fabrikant stopgezet.

Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen.

Lees meer over de RS Better World producten

RS-stocknr.:: 312-4070
Fabrikantnummer:: LR9D5369
Fabrikant:: Schneider Electric

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Schneider Electric
	Product Type	Overload Relay
	FLC Motor Rating	150A, 90A
	Relay Contact Current	105A
	Series	LR9D
	Mount Type	DIN Rail
	Pole and Throw Configuration	3
	Power Rating	59kW
	Terminal Type	Screw
	Normal State Configuration	1 NO/1 NC
	IP Rating	IP20
	Reset Method	Push Button
	Width	115mm
	Minimum Operating Temperature	-20°C
	Number of Auxiliary Contacts	2
	Adjustable Current Range	90 → 150 A
	Length	125mm
	Contact Voltage	440V ac
	Maximum Operating Temperature	60°C
	Depth	118mm
	Standards/Approvals	CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, GB/T 14048.4, UL Approved, UL 60947-5-1, CCC approved, UL 60947-4-1, UKCA Approved, CSA C22.2 No 60947-4-1, CSA Approved, EN/IEC 60947-4-1, GB/T 14048.5
	Better World Product	Yes
	Better World Claim	Designed for Disassembly
	Supply Voltage	17V dc, 32V dc
	Control Voltage	24V dc

	Alles selecteren
	Merk Schneider Electric
	Product Type Overload Relay
	FLC Motor Rating 150A, 90A
	Relay Contact Current 105A
	Series LR9D
	Mount Type DIN Rail
	Pole and Throw Configuration 3
	Power Rating 59kW
	Terminal Type Screw
	Normal State Configuration 1 NO/1 NC
	IP Rating IP20
	Reset Method Push Button
	Width 115mm
	Minimum Operating Temperature -20°C
	Number of Auxiliary Contacts 2
	Adjustable Current Range 90 → 150 A
	Length 125mm
	Contact Voltage 440V ac
	Maximum Operating Temperature 60°C
	Depth 118mm
	Standards/Approvals CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, GB/T 14048.4, UL Approved, UL 60947-5-1, CCC approved, UL 60947-4-1, UKCA Approved, CSA C22.2 No 60947-4-1, CSA Approved, EN/IEC 60947-4-1, GB/T 14048.5
	Better World Product Yes
	Better World Claim Designed for Disassembly
	Supply Voltage 17V dc, 32V dc
	Control Voltage 24V dc

Vrijgesteld

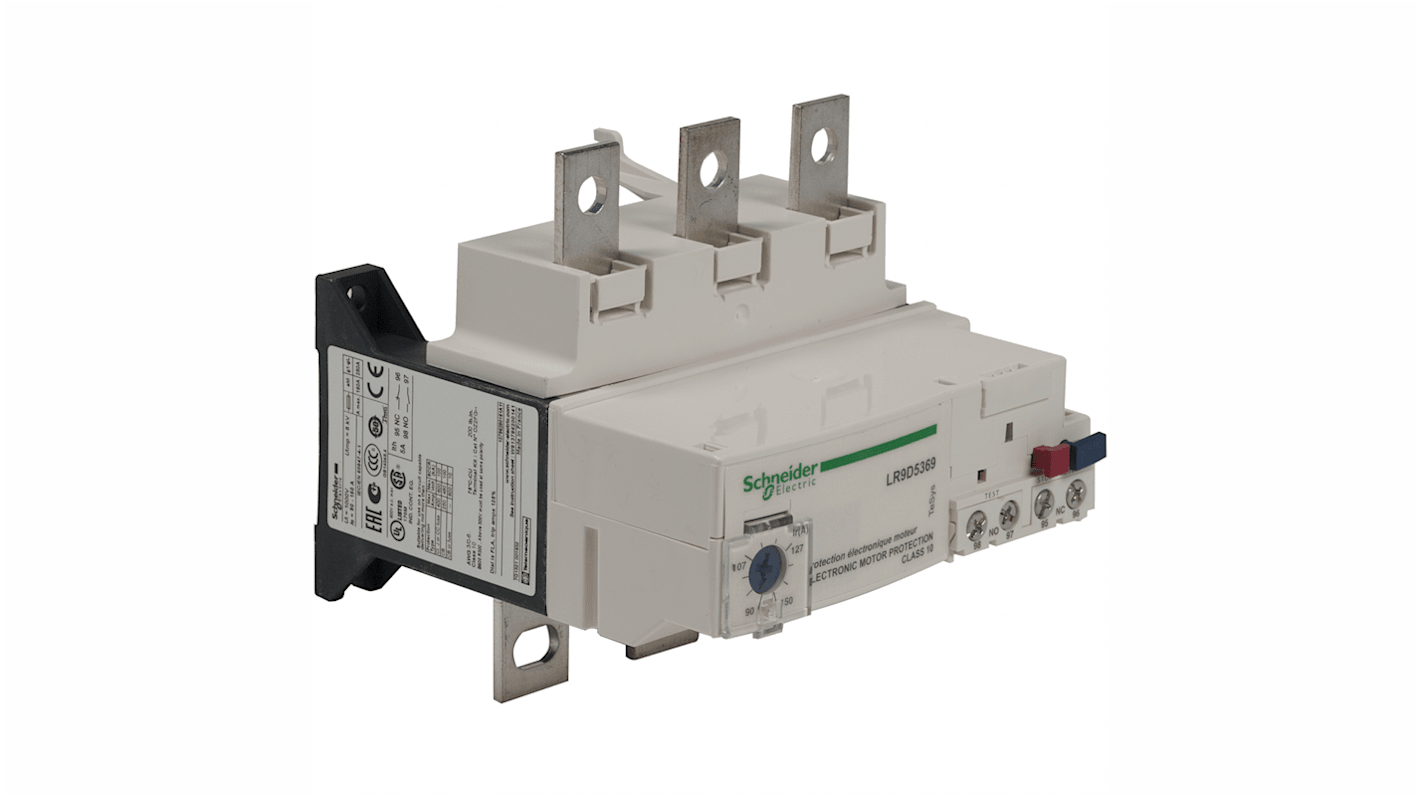

Schneider Electric LR9D Series Overload Relay, 90 to 150A FLC Motor Rating, 59kW Power Rating - LR9D5369

This overload relay is an electronic thermal relay designed for motor protection. It operates within a motor rating of 90 to 150 A and features a compact design measuring 115mm in width, 118mm in depth, and 125mm in length. This device supports high-performance automation applications and ensures the safety of electrical systems.

Features & Benefits

• Class 10 rating ensures reliable motor protection

• Provides two auxiliary contacts for signalling functions

• Designed for compatibility with NSX circuit breakers

• Robust operation within -20 to 60 °C temperature range

Applications

• Used for motor control systems for protection

• Suitable for involving 3-pole configuration requirements

• Ideal for integration with various Schneider Electric products

• Used in automation environments requiring thermal overload protection

What types of electrical systems can this relay be integrated into?

It can be integrated into a variety of electrical systems, particularly those involving motor control applications and protection. The relay is compatible with NSX circuit breakers, making it versatile for use in industrial automation environments.

How can the relay be reset after tripping?

The relay features a push button reset mechanism, allowing for easy reset after tripping due to overheating or overload conditions. This simplifies the user experience and enhances operational efficiency.

Are there specific installation requirements for this device?

The relay is designed for direct mounting under the contactor or on a rail, ensuring streamlined integration into existing control systems. Proper tightening torque specifications should be followed for reliable performance.
