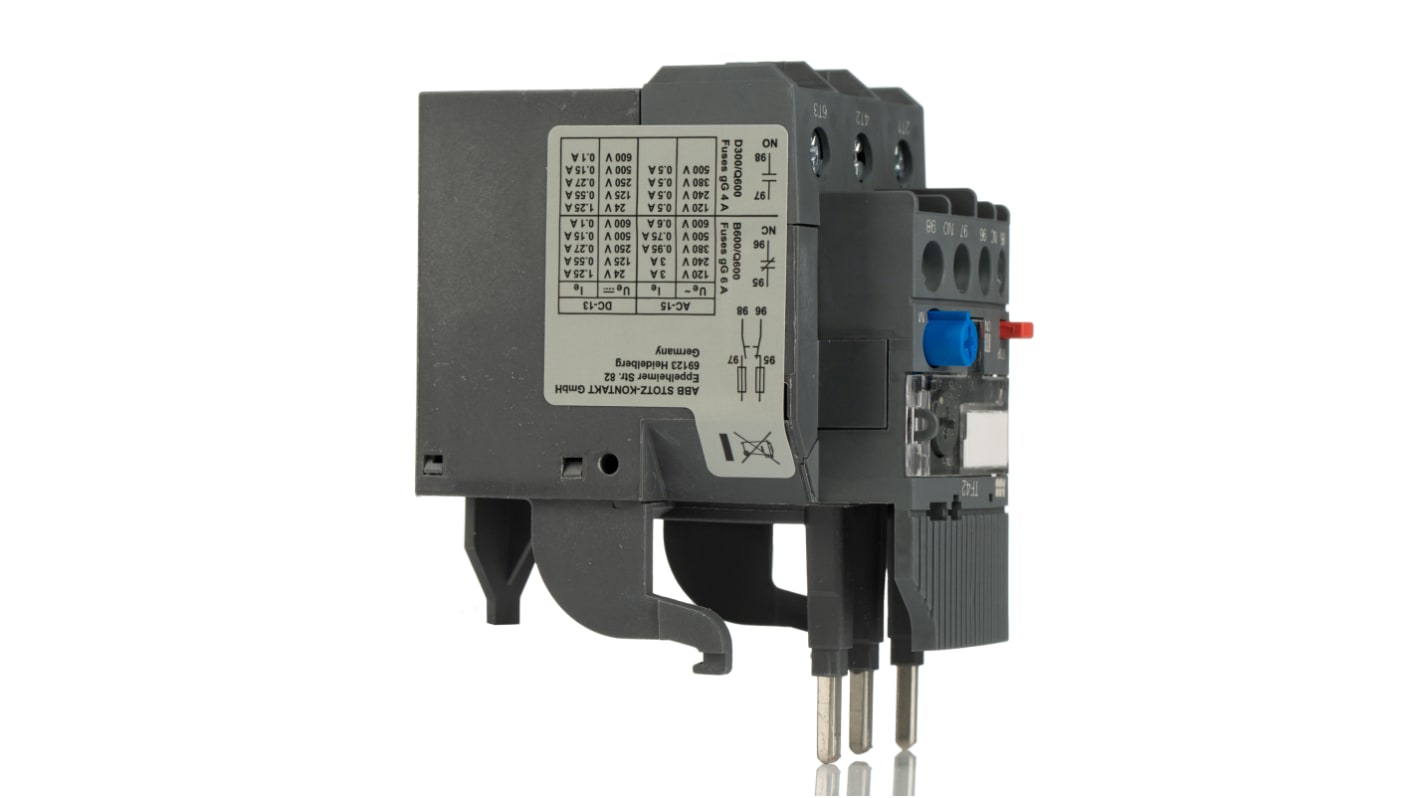

ABB, TF42 Thermal Overload Relay 1 NO/1 NC, 1.3A, 1.7 A F.L.C, 1.7A Contact Rating, 2 W 3

RS-stocknr.:: 711-6629
Fabrikantnummer:: 1SAZ721201R1028 TF42-1.7
Fabrikant:: ABB

ABB, TF42 Thermal Overload Relay 1 NO/1 NC, 1.3A, 1.7 A F.L.C, 1.7A Contact Rating, 2 W 3

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 75,89

(excl. BTW)

€ 91,83

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

25 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 21 stuk(s) vanaf 28 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 75,89

*prijsindicatie

RS-stocknr.:: 711-6629
Fabrikantnummer:: 1SAZ721201R1028 TF42-1.7
Fabrikant:: ABB

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	ABB
	Product Type	Thermal Overload Relay
	FLC Motor Rating	1.3, 1.7A
	Relay Contact Current	1.7A
	Mount Type	Direct
	Series	TF42
	Power Rating	2W
	Pole and Throw Configuration	3
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	IP Rating	IP20
	Reset Method	Automatic & Manual
	Width	45mm
	Number of Auxiliary Contacts	2
	Adjustable Current Range	1.3 → 1.7 A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Length	88.3mm
	Contact Voltage	690V ac/dc
	Standards/Approvals	CCC, RINA, Lloyd's Register, CE, UL 508, CB scheme, IEC/EN 60947-1, IEC/EN 60947-4-1, ABS, IEC/EN 60947-5-1, GOST-R, DNV, cULus, CSA 22.2 No. 14
	Depth	70.5mm

	Alles selecteren
	Merk ABB
	Product Type Thermal Overload Relay
	FLC Motor Rating 1.3, 1.7A
	Relay Contact Current 1.7A
	Mount Type Direct
	Series TF42
	Power Rating 2W
	Pole and Throw Configuration 3
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	IP Rating IP20
	Reset Method Automatic & Manual
	Width 45mm
	Number of Auxiliary Contacts 2
	Adjustable Current Range 1.3 → 1.7 A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Length 88.3mm
	Contact Voltage 690V ac/dc
	Standards/Approvals CCC, RINA, Lloyd's Register, CE, UL 508, CB scheme, IEC/EN 60947-1, IEC/EN 60947-4-1, ABS, IEC/EN 60947-5-1, GOST-R, DNV, cULus, CSA 22.2 No. 14
	Depth 70.5mm

ABB Thermal Overload Relay, 690V AC/DC Voltage Rating, 3 Pole - AF Series - TF42-1.7

Choose this thermal overload relay from ABB to quickly switch electrical loads in your circuit. The two auxiliary contacts turn appliances on and off to protect against overheating and increase motor lifespan. The unit has a power rating of 2W, so it can handle demanding applications. The stop and test functions offer reliable protection from phase failure, while automatic and manual reset methods support safe working.

Features & Benefits

• Compact dimensions of 88.3 (L) x 45 (W) x 70.5mm (D) to save space

• Operating temperature between -25°C to +60°C for safe industrial use

• Energy efficient with a normal state configuration of 1NO+1NC

• Contact current rating of 1.7A for wide compatibility

• Full load current motor rating of 1.3 to 1.7A for versatility

Applications

• Manufacturing equipment

• Production lines

• Factory automation

How do I install this overload relay?

The unit has screw-type terminals for quick installation and secure connections.

How does a thermal overload relay work?

Thermal overload relays like this one use a bi-metallic plate to detect excessive current when it passes through the heating element. If there's a risk of overload, the plate twists out of shape and interrupts the power supply.
