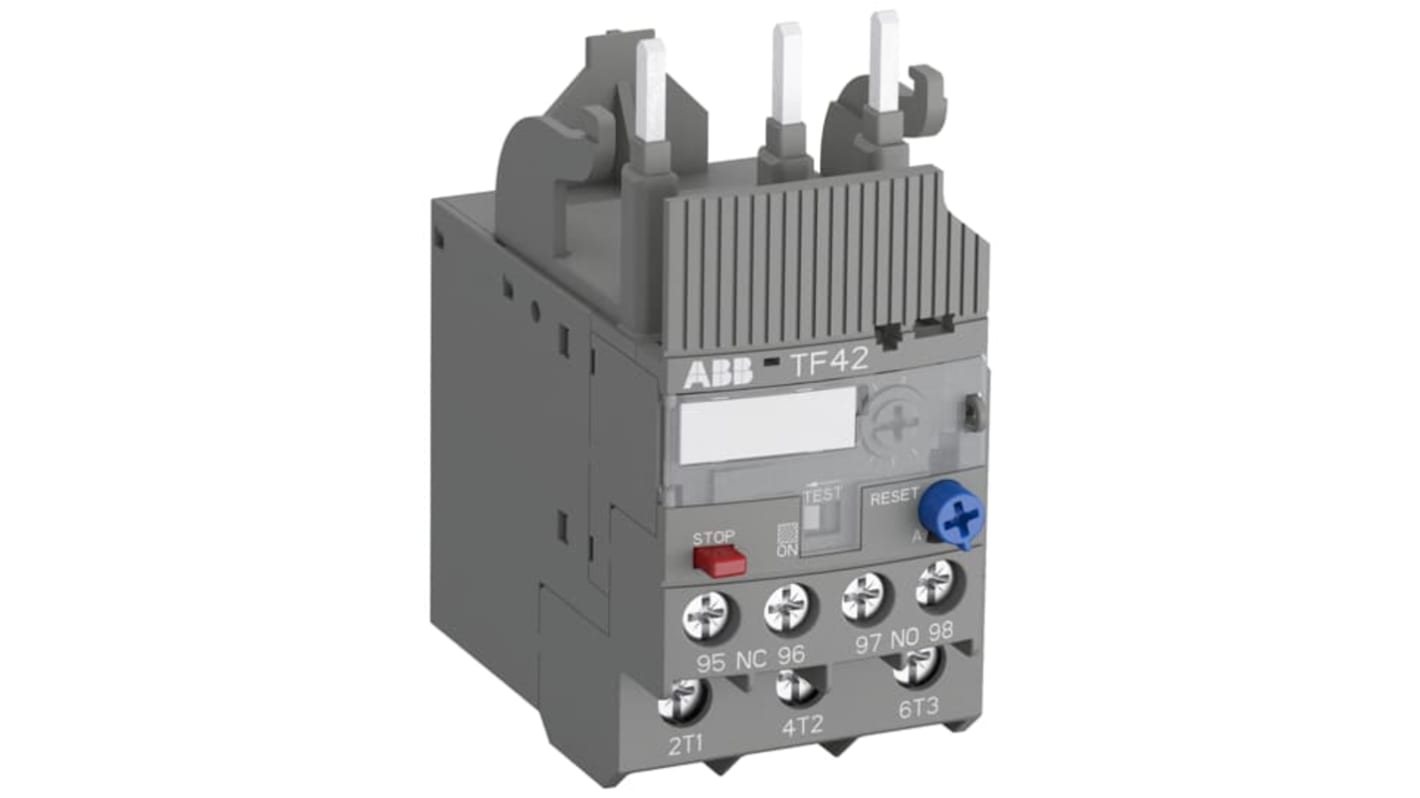

ABB, TF42 Thermal Overload Relay 1 NO/1 NC, 1A, 1.3 A F.L.C, 1.3A Contact Rating, 600V dc 3
- RS-stocknr.:
- 231-8978
- Fabrikantnummer:
- 1SAZ721201R1025 TF42-1.3
- Fabrikant:
- ABB
Subtotaal (1 doos van 1 eenheid)*
€ 75,89
(excl. BTW)
€ 91,83
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 3 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Dozen | Per Doos |
|---|---|
| 1 + | € 75,89 |
*prijsindicatie
- RS-stocknr.:
- 231-8978
- Fabrikantnummer:
- 1SAZ721201R1025 TF42-1.3
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 1, 1.3A | |
| Relay Contact Current | 1.3A | |
| Mount Type | Direct | |
| Series | TF42 | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Adjustable Current Range | 1 to 1.3 A | |
| Number of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 690V | |
| Length | 88.3mm | |
| Depth | 70.5mm | |
| Standards/Approvals | ABS, ATEX, BV, CB, CQC, cUL, IEC/EN 60947-1, RoHS, UL, UL 60947 | |
| Control Voltage | 600V dc | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 1, 1.3A | ||
Relay Contact Current 1.3A | ||
Mount Type Direct | ||
Series TF42 | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Adjustable Current Range 1 to 1.3 A | ||
Number of Auxiliary Contacts 2 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 690V | ||
Length 88.3mm | ||
Depth 70.5mm | ||
Standards/Approvals ABS, ATEX, BV, CB, CQC, cUL, IEC/EN 60947-1, RoHS, UL, UL 60947 | ||
Control Voltage 600V dc | ||
- Land van herkomst:
- DE
The ABB Thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. The thermal overload relay can make up a compact starting solution together with contactors.
Trip class 10
Adjustable current setting ranges
Overload protection with phase loss sensitivity
Temperature compensation up to +60°C
Automatic or manual reset, sealable
Stop and test function
