Festo 150 mm, 3240N, 8083819 24V dc 250mm/s
- RS-stocknr.:
- 203-9772
- Artikelnummer Distrelec:
- 301-86-864
- Fabrikantnummer:
- EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 1.154,26
(excl. BTW)
€ 1.396,65
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 25 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 1.154,26 |
*prijsindicatie
- RS-stocknr.:
- 203-9772
- Artikelnummer Distrelec:
- 301-86-864
- Fabrikantnummer:
- EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Electrical Linear Actuator | |
| Maximum Load | 3240N | |
| Stroke Length | 150mm | |
| Maximum Speed | 250mm/s | |
| Voltage | 24V dc | |
| Series | EGSS | |
| Motor Technology | Stepper Motor | |
| Duty Cycle | 100% | |
| Maximum Force | 1314N | |
| IP Rating | IP40 | |
| Overall Length Closed | 45mm | |
| Spindle Type | Ball Screw | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Weight | 2181g | |
| Standards/Approvals | CE mark, RCM mark, KC mark | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Electrical Linear Actuator | ||
Maximum Load 3240N | ||
Stroke Length 150mm | ||
Maximum Speed 250mm/s | ||
Voltage 24V dc | ||
Series EGSS | ||
Motor Technology Stepper Motor | ||
Duty Cycle 100% | ||
Maximum Force 1314N | ||
IP Rating IP40 | ||
Overall Length Closed 45mm | ||
Spindle Type Ball Screw | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Weight 2181g | ||
Standards/Approvals CE mark, RCM mark, KC mark | ||
- Land van herkomst:
- DE

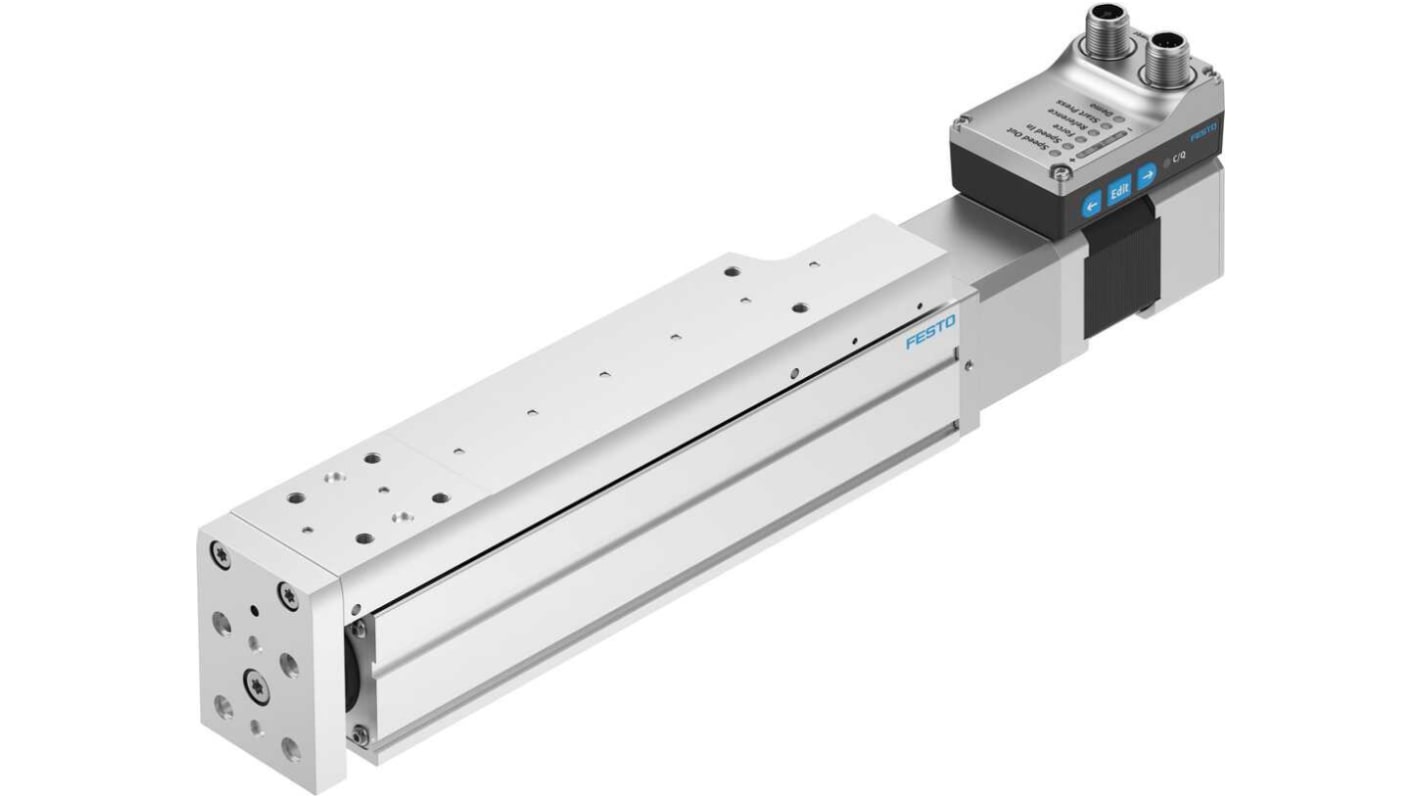

Festo EGSS Series Electric Linear Actuator, 150mm Maximum Stroke Length, 6kg Maximum Load - EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA, Numeric Part Number:8083819
This electric linear actuator, a micro linear actuator, is engineered for efficiency with a maximum stroke length of 150mm. Designed to operate under a duty cycle of 100%, it supports a maximum load of 6kg, making it ideal for various automated applications. Featuring stepper motor technology, this actuator functions effectively at an input voltage of 24V DC and exhibits impressive performance with speeds of up to 250mm/s.
Features & Benefits
• Offers high-speed operation of 250mm/s for increased productivity
• Compact design fits seamlessly into constrained spaces
• Integrated drive ensures a straightforward installation process
• Incorporates advanced position detection for precise movements
• Features temperature monitoring to enhance operational safety
• Designed with an IP40 rating for protection against dust ingress
Applications
• Utilised in robotics for precise positioning tasks
• Effective in automated assembly lines requiring reliable movement
• Employed in handling heavy loads in industrial settings
• Suitable for use in equipment requiring compact actuator solutions
How does the actuator handle different load conditions?
It is capable of managing a maximum load of 6kg, ensuring reliable performance under various conditions. With robust dynamic ratings, it can sustain loads in both horisontal and vertical arrangements, accommodating diverse operational needs.
What monitoring features contribute to its reliability?
It includes temperature monitoring and integrated end-position sensing, which safeguard against overheating and ensure proper positioning. Additionally, an absolute single-turn encoder provides precise rotor position tracking, enhancing overall accuracy.
What is the installation process like for this actuator?
Installation is simplified due to the integrated drive system and multiple mounting options. It can be mounted using a female thread or centring sleeve, allowing for flexibility in different applications and environments.
How is this actuator suited for use in varying environmental conditions?
It operates efficiently within a temperature range of 0°C to 50°C and maintains functionality at relative humidity levels of 0-90%. The IP40 rating ensures resistance to dust, making it suitable for various industrial environments.
What features enhance its usability in automation systems?
The actuator features a parameterisation interface with IO-Link support, enabling integration with complex automation systems while allowing for configurable digital logic inputs and outputs to enhance customisation.
