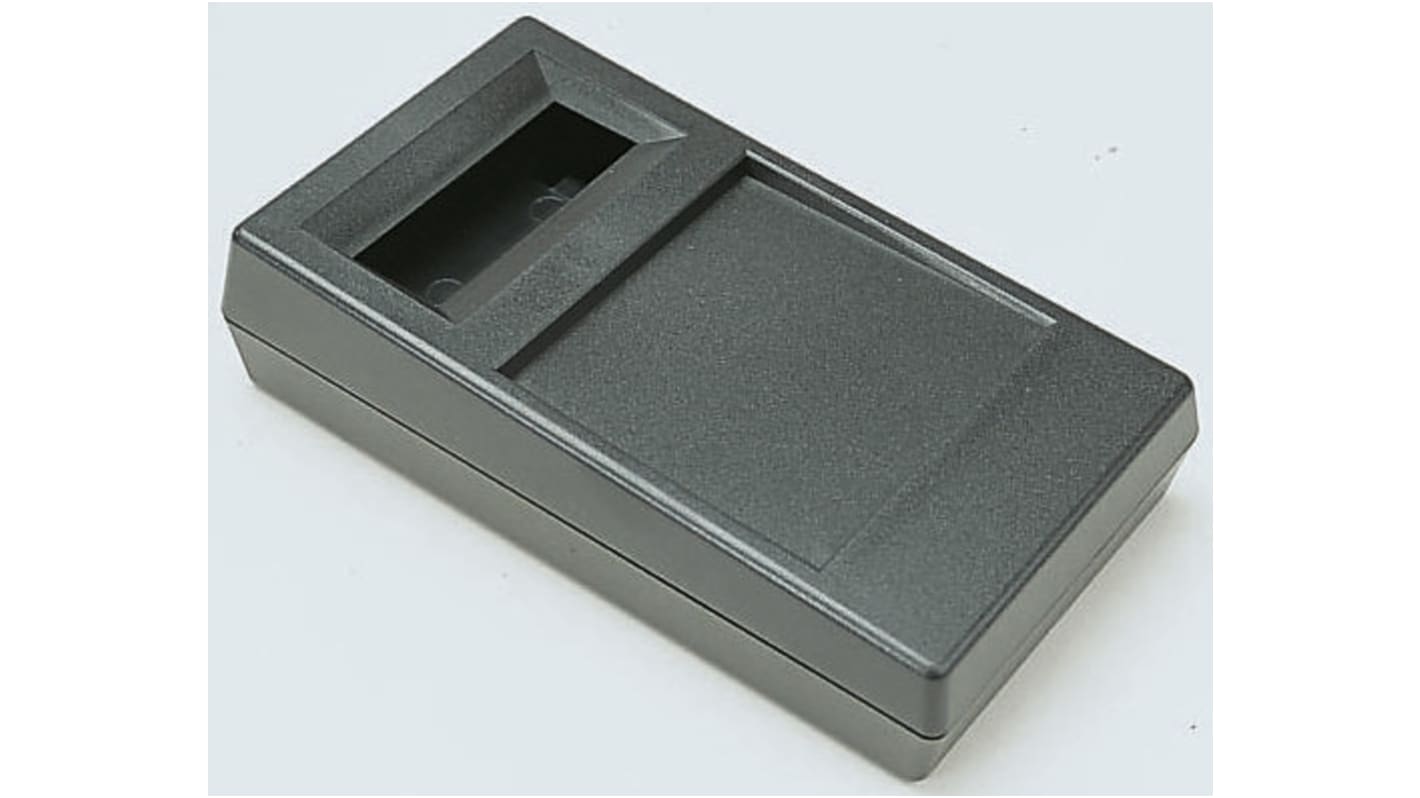

OKW HM Series Black ABS Handheld Enclosure Integral Battery Compartment Display Window, IP65, IP40, 180 mm x 44 mm x,
- RS-stocknr.:
- 119-7565
- Fabrikantnummer:
- A9061019
- Fabrikant:
- OKW
Afbeelding representeert productcategorie
Subtotaal (1 eenheid)*
€ 31,48
(excl. BTW)
€ 38,09
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 721 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 31,48 |
*prijsindicatie
- RS-stocknr.:
- 119-7565
- Fabrikantnummer:
- A9061019
- Fabrikant:
- OKW
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | OKW | |
| Body Material | ABS | |
| Product Type | Handheld Enclosure | |
| External Height | 44mm | |
| Integral Battery Compartment | Yes | |
| IP Rating | IP65, IP40 | |
| Display Window | Yes | |
| Colour | Black | |
| External Length | 180mm | |
| External Width | 100mm | |
| Push Buttons | Yes | |
| Internal Mount Type | PCB | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | REACH, RoHS | |
| Series | HM | |
| Keypad Recess | Yes | |
| Alles selecteren | ||
|---|---|---|
Merk OKW | ||
Body Material ABS | ||
Product Type Handheld Enclosure | ||
External Height 44mm | ||
Integral Battery Compartment Yes | ||
IP Rating IP65, IP40 | ||
Display Window Yes | ||
Colour Black | ||
External Length 180mm | ||
External Width 100mm | ||
Push Buttons Yes | ||
Internal Mount Type PCB | ||
Hazardous Area Certification NO | ||
Standards/Approvals REACH, RoHS | ||
Series HM | ||
Keypad Recess Yes | ||
Hand-held cases
Boxes moulded in 2 halves, including a panel for fitting switches, indicators or a keypad, and a separate display area.
Space for components can be maximised by placing the battery compartment under the display area. This compartment is accessed externally and takes 4 x AA batteries or two x PP3 batteries.
