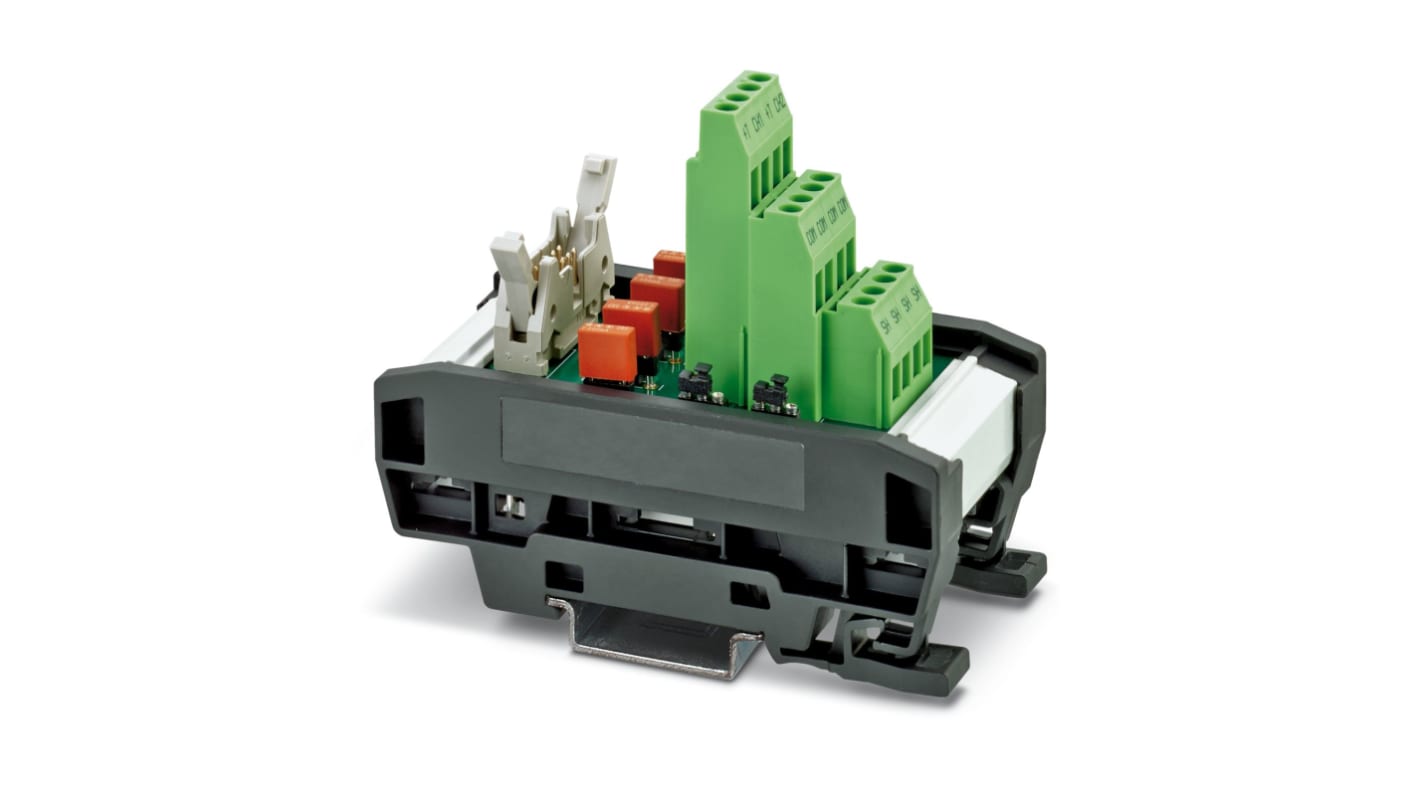

Phoenix Contact VARIOFACE Series 4-Contact Female Interface Module, D-Sub Connector, DIN Rail, 200mA
- RS-stocknr.:
- 133-671
- Fabrikantnummer:
- 2905962
- Fabrikant:
- Phoenix Contact
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 133-671
- Fabrikantnummer:
- 2905962
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | Interface Module | |
| Gender | Female | |
| Wire Size | 0.2, 4mm² | |
| Current | 200mA | |
| Number of Contacts | 4 | |
| Connector Type | D-Sub | |
| Mount Type | DIN Rail | |
| Voltage | 24V | |
| Minimum Operating Temperature | -40°C | |
| Cable CSA | 0.2, 4mm² | |
| Maximum Operating Temperature | 60°C | |
| Depth | 78.9mm | |
| Standards/Approvals | IEC 60603-13 | |
| Width | 54mm | |
| Length | 7mm | |
| Series | VARIOFACE | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type Interface Module | ||
Gender Female | ||
Wire Size 0.2, 4mm² | ||
Current 200mA | ||
Number of Contacts 4 | ||
Connector Type D-Sub | ||
Mount Type DIN Rail | ||
Voltage 24V | ||
Minimum Operating Temperature -40°C | ||
Cable CSA 0.2, 4mm² | ||
Maximum Operating Temperature 60°C | ||
Depth 78.9mm | ||
Standards/Approvals IEC 60603-13 | ||
Width 54mm | ||
Length 7mm | ||
Series VARIOFACE | ||
Vrijgesteld
- Land van herkomst:
- US
The Phoenix Contact Interface Module is a versatile interface module designed for use with ROC800 controller PI cards. It features three level screw terminals for easy field wiring, per channel pluggable fusing with blown fuse indication, and per channel configurability for high or low inputs.
Tested for continuity and UL recognized to Class I Div. 2 standards
Compact and durable UM PRO housing for long term use
FLK10 connection on the control side for easy integration
