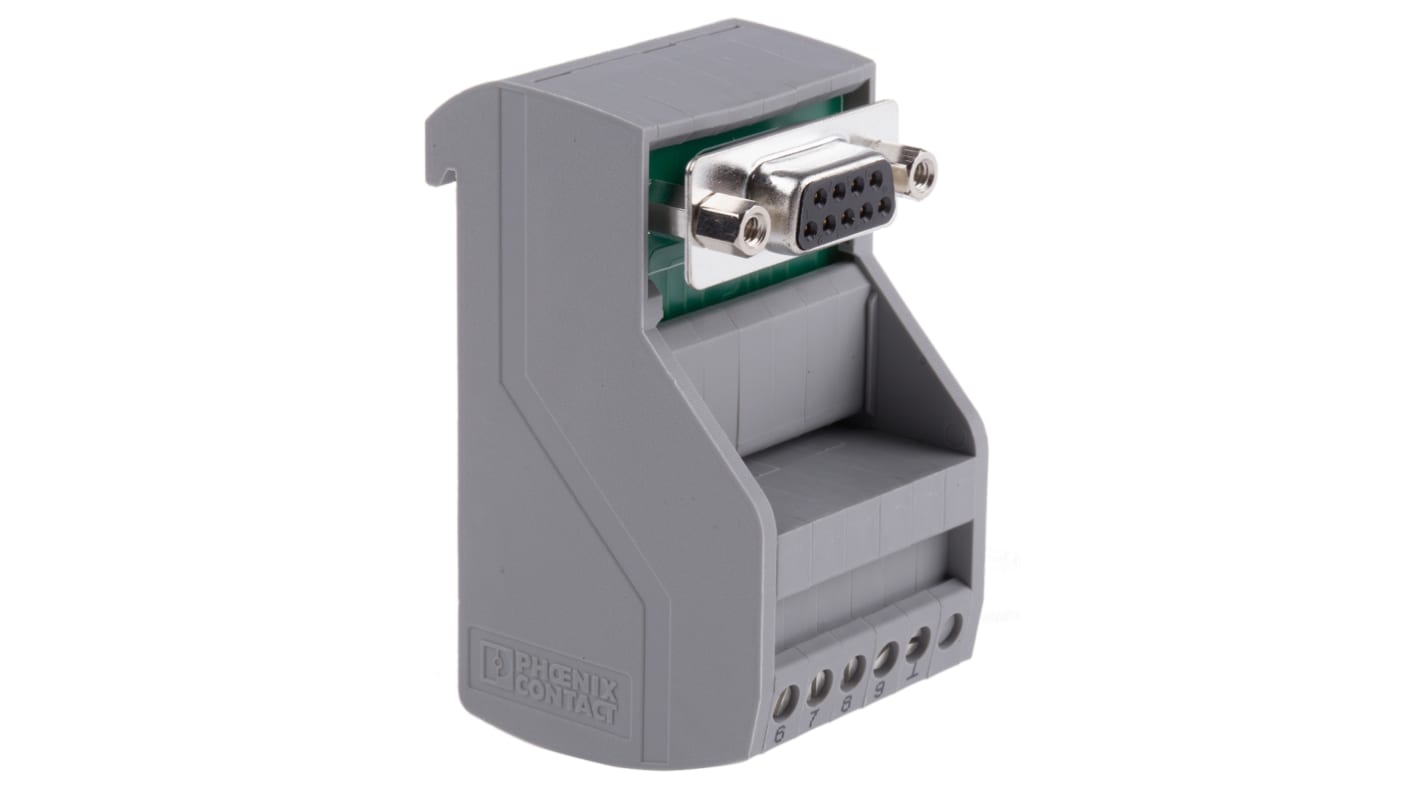

Phoenix Contact VIP-2 Series 9-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2A

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 33,88

(excl. BTW)

€ 40,99

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Laatste voorraad RS
  • 51 resterend, klaar voor verzending
  • 18 stuk(s) klaar voor verzending vanaf een andere locatie
Aantal stuks
Per stuk
1 +€ 33,88

*prijsindicatie

RS-stocknr.:
667-0052
Artikelnummer Distrelec:
304-01-193
Fabrikantnummer:
2315162
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Gender

Female

Product Type

Interface Module

Wire Size

24/12 AWG

Current

2A

Orientation

Straight

Number of Contacts

9

Connector Type

D-Sub

Mount Type

DIN Rail

Test Proof Voltage

0.6kV

Voltage

25 V ac, 60 V dc

Minimum Operating Temperature

-20°C

Cable CSA

0.2 to 4 mm²

Maximum Operating Temperature

50°C

Width

45.1 mm

Depth

65.5mm

Standards/Approvals

No

Length

34.7mm

Series

VIP-2

Land van herkomst:
US

Phoenix Contact Interface Module, Any Mounting Position, M3 Screw Thread - VIP-2/SC/D 9SUB/F - 2315162


Add this interface module from Phoenix Contact to your system to make wired connections a breeze. Nine contacts allow you to run multiple circuits simultaneously, to help super-charge your productivity. Screw terminals are on hand to deliver rock-solid resistance against vibrations. Electrical connection is easy, thanks to the female D-sub socket.

This versatile unit is suitable for low-power systems, as it has a nominal voltage rating of 25V AC and 60V DC. It makes your life easier when it comes to wiring, as it accepts a wire size range from 0.2 to 4mm² for rigid conductors and 0.2 to 2.5mm² for flexible ones.

Flame-retardant material ensures that burning subsides in under 10 seconds, so the unit won't contribute to a workplace fire. DIN rail mounting means this assembly slots into your industrial infrastructure with a simple clip.

Features & Benefits


• 2A current rating suits low power applications

• Compact dimensions of 34.7 (L) x 45.1 (W) x 65.5mm (D) make it ideal for use in tight areas

• Fits 24 to 14AWG conductors for greater compatibility

• 1.2kV surge protection safeguards against hazardous over-voltages

• Performs reliably in a temperature range between -20°C and +50°C
