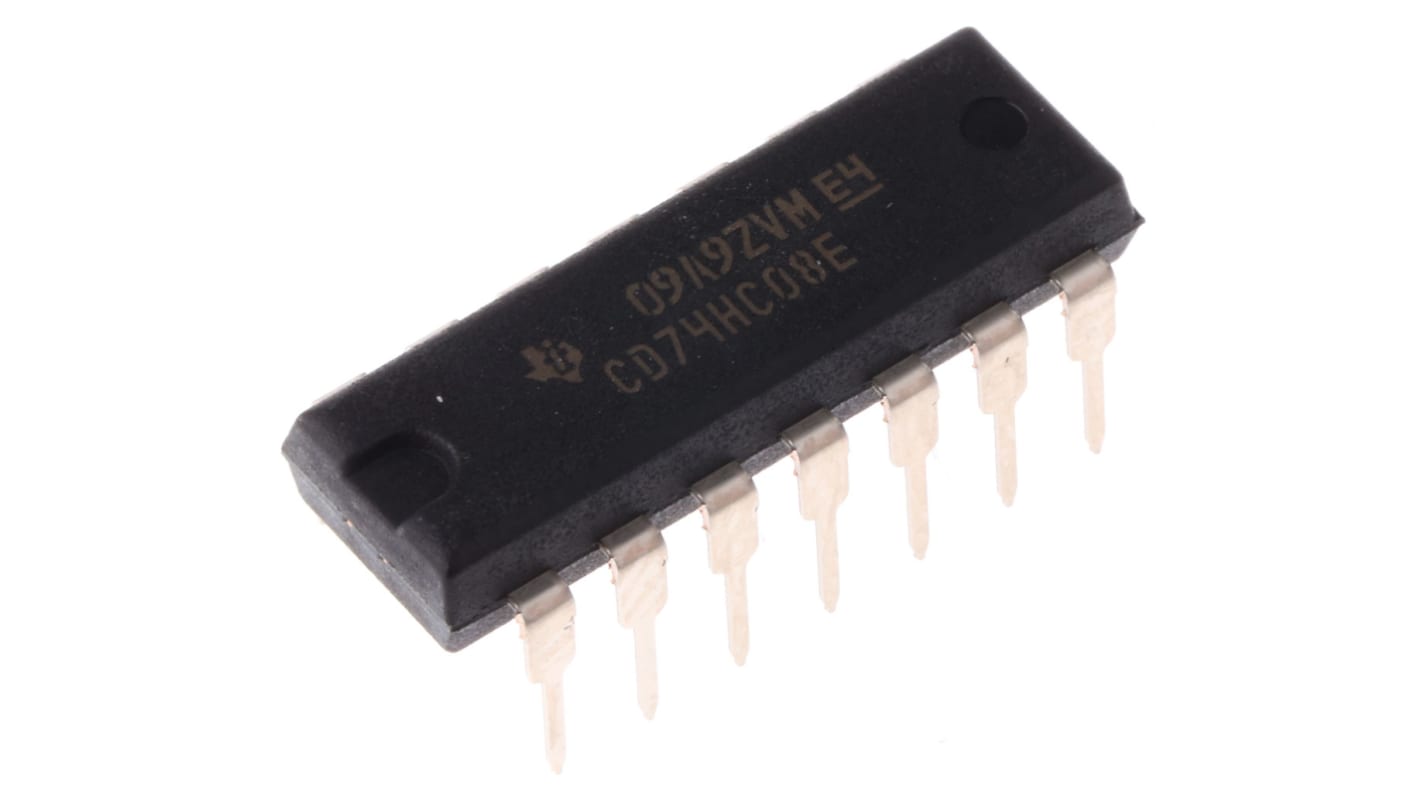

Texas Instruments CD74HC08E, 4 2-Input AND Logic Gate, 14-Pin PDIP
- RS-stocknr.:
- 709-2845
- Fabrikantnummer:
- CD74HC08E
- Fabrikant:
- Texas Instruments
Bulkkorting beschikbaar
Subtotaal (1 verpakking van 10 eenheden)*
€ 6,17
(excl. BTW)
€ 7,47
(incl. BTW)
Voeg 130 eenheden toe voor gratis bezorging
Op voorraad
- 20 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 590 stuk(s) vanaf 27 februari 2026
- Plus verzending 100 stuk(s) vanaf 30 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 10 - 40 | € 0,617 | € 6,17 |
| 50 - 90 | € 0,60 | € 6,00 |
| 100 - 240 | € 0,584 | € 5,84 |
| 250 - 490 | € 0,569 | € 5,69 |
| 500 + | € 0,556 | € 5,56 |
*prijsindicatie
- RS-stocknr.:
- 709-2845
- Fabrikantnummer:
- CD74HC08E
- Fabrikant:
- Texas Instruments
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Texas Instruments | |
| Logic Function | AND | |
| Product Type | Logic Gate | |
| Mount Type | Through Hole | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Logic Family | HC | |
| Input Type | CMOS | |
| Maximum High Level Output Current | -5.2mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Propagation Delay Time @ CL | 33ns | |
| Maximum Operating Temperature | 125°C | |
| Height | 4.57mm | |
| Length | 19.3mm | |
| Standards/Approvals | No | |
| Width | 6.35 mm | |
| Series | CD74 | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 6V | |
| Maximum Low Level Output Current | 5.2mA | |
| Output Type | CMOS | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Texas Instruments | ||
Logic Function AND | ||
Product Type Logic Gate | ||
Mount Type Through Hole | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 14 | ||
Logic Family HC | ||
Input Type CMOS | ||
Maximum High Level Output Current -5.2mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Propagation Delay Time @ CL 33ns | ||
Maximum Operating Temperature 125°C | ||
Height 4.57mm | ||
Length 19.3mm | ||
Standards/Approvals No | ||
Width 6.35 mm | ||
Series CD74 | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 6V | ||
Maximum Low Level Output Current 5.2mA | ||
Output Type CMOS | ||
Automotive Standard No | ||
74HC Family Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
