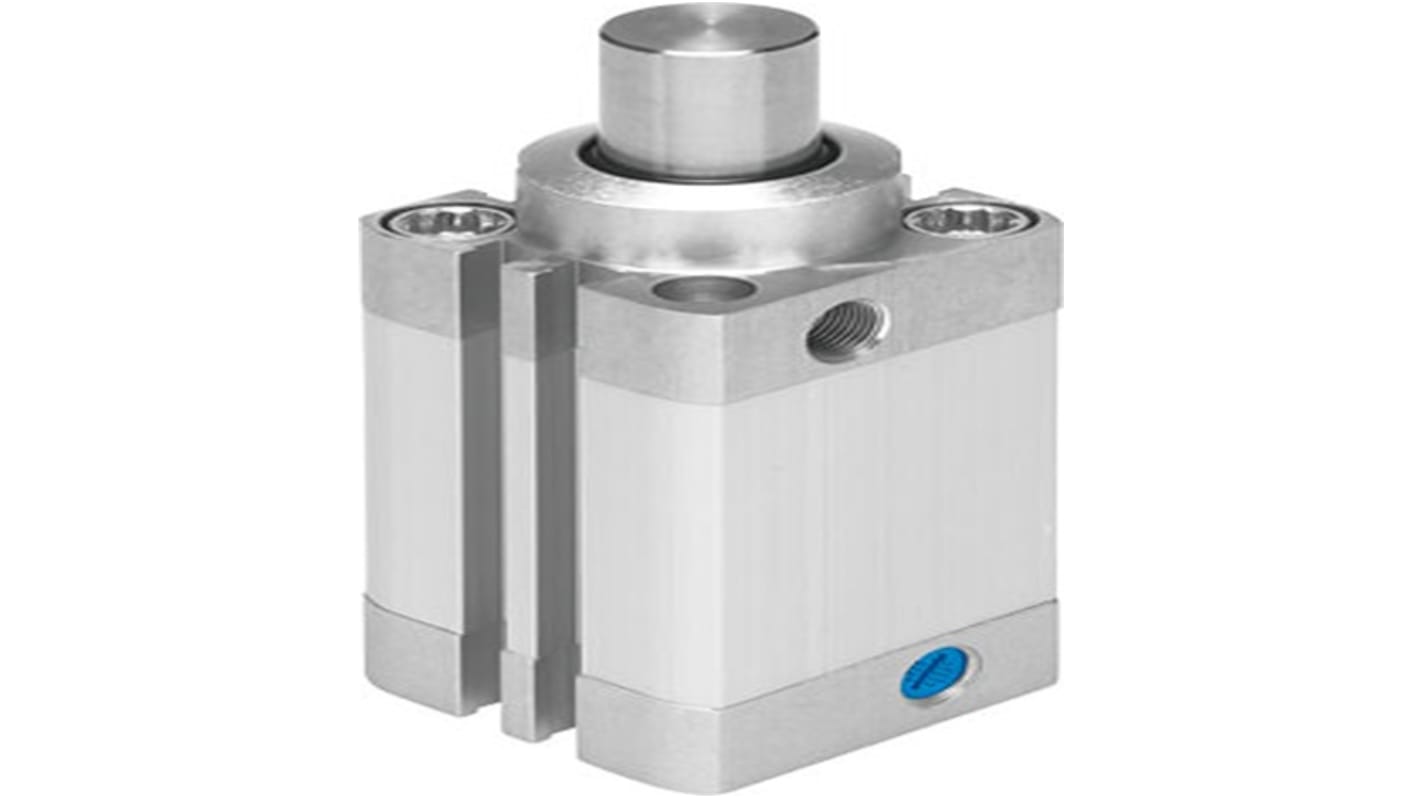

Festo Pneumatic Cylinder DFSP-40-30-PS-PA DFSP-40-30-PS-PA 10 bar
- RS-stocknr.:
- 271-6999
- Fabrikantnummer:
- DFSP-40-30-PS-PA
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 143,78
(excl. BTW)
€ 173,97
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 143,78 |
*prijsindicatie
- RS-stocknr.:
- 271-6999
- Fabrikantnummer:
- DFSP-40-30-PS-PA
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Cylinder | |
| Bore Size | 40mm | |
| Maximum Operating Pressure | 10 bar | |
| Stroke Length | 30mm | |
| Series | DFSP-40-30-PS-PA | |
| Rod Diameter | 40mm | |
| Mount Type | Through Hole, Female Thread | |
| Cushioning Type | Elastic Cushioning Rings/Plates | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -10°C | |
| Action Type | Single Acting | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010, VDMA24364-B1/B2-L | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Cylinder | ||
Bore Size 40mm | ||
Maximum Operating Pressure 10 bar | ||
Stroke Length 30mm | ||
Series DFSP-40-30-PS-PA | ||
Rod Diameter 40mm | ||
Mount Type Through Hole, Female Thread | ||
Cushioning Type Elastic Cushioning Rings/Plates | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -10°C | ||
Action Type Single Acting | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010, VDMA24364-B1/B2-L | ||
- Land van herkomst:
- DE
The Festo Stopper cylinder is used to safely stop movements of large loads in machines or work piece carriers, pallets and packages in the event of an emergency off or pressure failure. It allows sudden braking of the conveyed goods via piston rod.
Compact design
Long service life
