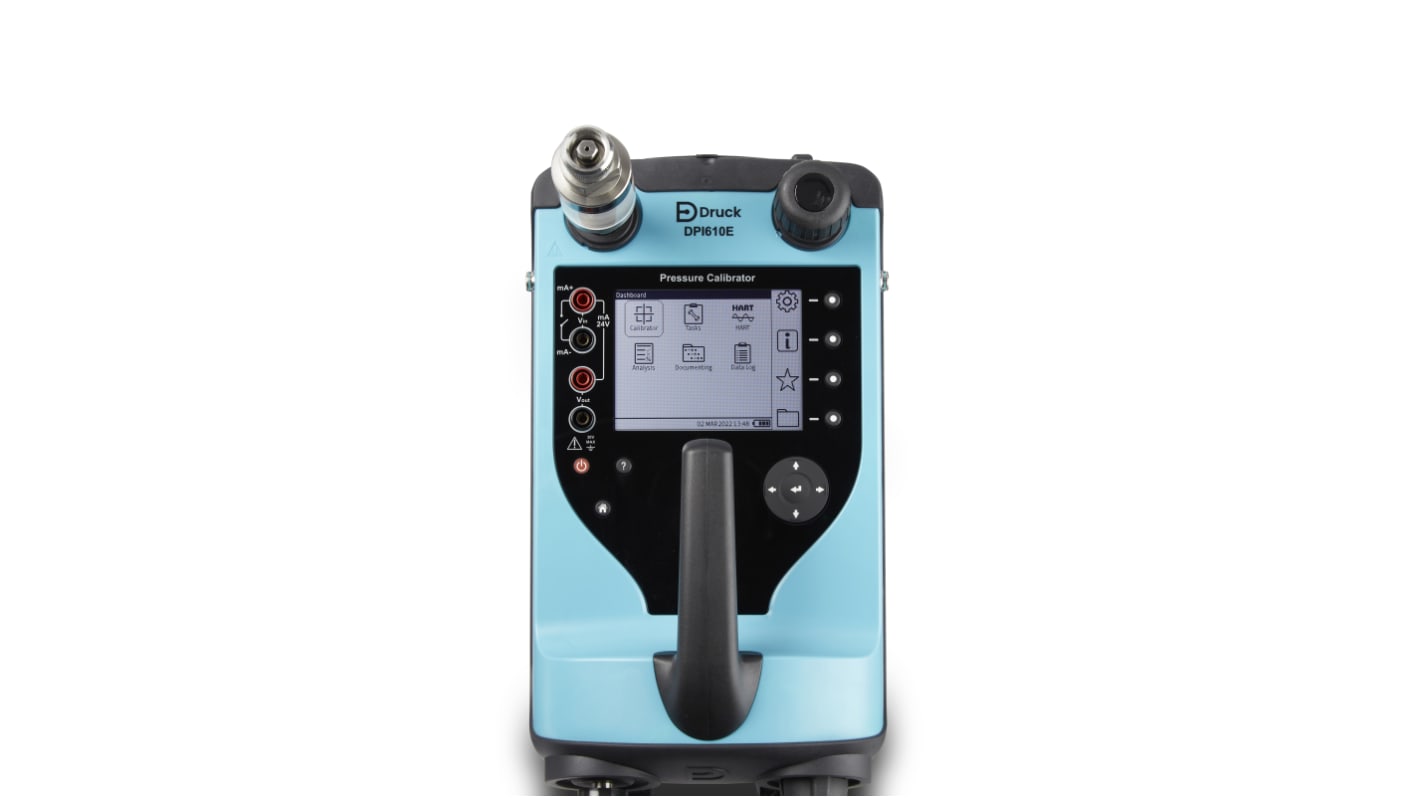

Druck DPI610E 0 bar to 10 bar Pressure Calibrator
- RS-stocknr.:
- 251-9233
- Fabrikantnummer:
- DPI610E-PC-11G-UO -BO
- Fabrikant:
- Druck
Subtotaal (1 eenheid)*
€ 4.648,68
(excl. BTW)
€ 5.624,90
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 3 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 4.648,68 |
*prijsindicatie
Kalibratie-opties
Per stuk
€ 4.768,74
(excl. BTW)
€ 5.770,18
(incl. BTW)
- RS-stocknr.:
- 251-9233
- Fabrikantnummer:
- DPI610E-PC-11G-UO -BO
- Fabrikant:
- Druck
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Druck | |
| Battery Type | Lithium-ion | |
| Maximum Pressure Measurement | 10bar | |
| Product Type | Pressure Calibrator | |
| Accuracy | 0.025 % FS | |
| Minimum Pressure Measurement | 0bar | |
| Resolution | 0.03 % | |
| Pressure Port Type | Gauge/Pseudo Absolute | |
| Data Logging | Yes | |
| Model Number | DPI610E | |
| Intrinsically Safe | No | |
| Display Type | LCD | |
| Current Loop Measurement | Yes | |
| Leak Testing | Yes | |
| Power Source | Battery | |
| Weight | 3.6kg | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 90h | |
| Width | 150mm | |
| Standards/Approvals | BS EN 613261:2013, UKCA, CE, BS EN 610101:2010 | |
| Length | 350mm | |
| Height | 180mm | |
| Hazardous Area Certification | IECEx/ATEX | |
| Plug Type | USB | |
| Alles selecteren | ||
|---|---|---|
Merk Druck | ||
Battery Type Lithium-ion | ||
Maximum Pressure Measurement 10bar | ||
Product Type Pressure Calibrator | ||
Accuracy 0.025 % FS | ||
Minimum Pressure Measurement 0bar | ||
Resolution 0.03 % | ||
Pressure Port Type Gauge/Pseudo Absolute | ||
Data Logging Yes | ||
Model Number DPI610E | ||
Intrinsically Safe No | ||
Display Type LCD | ||
Current Loop Measurement Yes | ||
Leak Testing Yes | ||
Power Source Battery | ||
Weight 3.6kg | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Battery Life 90h | ||
Width 150mm | ||
Standards/Approvals BS EN 613261:2013, UKCA, CE, BS EN 610101:2010 | ||
Length 350mm | ||
Height 180mm | ||
Hazardous Area Certification IECEx/ATEX | ||
Plug Type USB | ||
- Land van herkomst:
- GB
Druck Pressure Calibrator, 10 bar Maximum Pressure, 0.025% FS Accuracy - DPI610E-PC-11G-UO -BO
This pressure calibrator is a portable instrument for measuring and verifying pressure-driven systems in field and workshop environments. It operates from -10°C to 50°C and supports gauge and pseudo-absolute connections, enabling flexible measurement strategies. The device runs from a lithium-ion battery and features an LCD for readout, with data-logging capacity to Record test results. It holds approvals including UKCA, CE and IECEx/ATEX for hazardous-area applications.
Features and Benefits:
• 0.025% FS accuracy delivers precise reference measurements
• 90 h battery life enables extended field operation
• 10 bar measurement range supports common industrial pressures
• 0.03% resolution reveals small pressure changes
• Data-logging captures test sequences for later analysis
• 90 h battery life enables extended field operation
• 10 bar measurement range supports common industrial pressures
• 0.03% resolution reveals small pressure changes
• Data-logging captures test sequences for later analysis
Applications
• Suitable for calibration of industrial pressure transmitters
• Ideal for on-site leak testing and system validation
• Used with current loops for transmitter loop checks
• Can be used for gauge and pseudo-absolute sensor verification
• Suitable for hazardous-area checks requiring IECEx/ATEX approval
• Ideal for on-site leak testing and system validation
• Used with current loops for transmitter loop checks
• Can be used for gauge and pseudo-absolute sensor verification
• Suitable for hazardous-area checks requiring IECEx/ATEX approval
What power options are available for extended fieldwork?
It runs from an internal lithium-ion battery and provides approximately 90 h of operation on a single charge.
How is measurement recorded and transferred for reporting?
Measurement values and sessions are stored via onboard data-logging and can be exported through the USB connection.
Which environmental limits affect operation?
The unit is specified for use between -10°C and 50°C and is suitable for typical field temperature ranges.
What pressure connections does it support?
It accepts gauge and pseudo-absolute pressure ports to accommodate different sensor types.
Note
Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
