Intelligent LED Solutions LED Spotlight 30 mm 40 mm 3.5V 2.17 W
- RS-stocknr.:
- 122-5161
- Fabrikantnummer:
- ILI-ON01-STWH-SC211.
- Fabrikant:
- Intelligent LED Solutions
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 52,47
(excl. BTW)
€ 63,49
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 5 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 1 | € 52,47 |
| 2 - 4 | € 48,74 |
| 5 + | € 45,48 |
*prijsindicatie
- RS-stocknr.:
- 122-5161
- Fabrikantnummer:
- ILI-ON01-STWH-SC211.
- Fabrikant:
- Intelligent LED Solutions
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Intelligent LED Solutions | |
| Product Type | Spotlight | |
| Lamp Type | LED | |
| Sub Type | Spotlight | |
| Voltage | 3.5V | |
| Diameter | 30mm | |
| IP Rating | IPZ0, IP66, IP20, IP65, IP67 | |
| Power | 2.17W | |
| Lifespan | 100000h | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Colour | White | |
| Colour Temperature | 5700K | |
| Standards/Approvals | IEC 61000-3-2, IEC/EN 62384, IEC 61547, IEC 62471:2006, ENEC:61374-2-13, EN60598-1, CE:EC 61374-2-13, EN 55015 | |
| Depth | 40mm | |
| Length | 40mm | |
| Dimmable | Yes | |
| Series | OSLONeye Powerstar | |
| Anti-corrosive | Yes | |
| Lamp Supplied | Yes | |
| Alles selecteren | ||
|---|---|---|
Merk Intelligent LED Solutions | ||
Product Type Spotlight | ||
Lamp Type LED | ||
Sub Type Spotlight | ||
Voltage 3.5V | ||
Diameter 30mm | ||
IP Rating IPZ0, IP66, IP20, IP65, IP67 | ||
Power 2.17W | ||
Lifespan 100000h | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Colour White | ||
Colour Temperature 5700K | ||
Standards/Approvals IEC 61000-3-2, IEC/EN 62384, IEC 61547, IEC 62471:2006, ENEC:61374-2-13, EN60598-1, CE:EC 61374-2-13, EN 55015 | ||
Depth 40mm | ||
Length 40mm | ||
Dimmable Yes | ||
Series OSLONeye Powerstar | ||
Anti-corrosive Yes | ||
Lamp Supplied Yes | ||
- Land van herkomst:
- GB

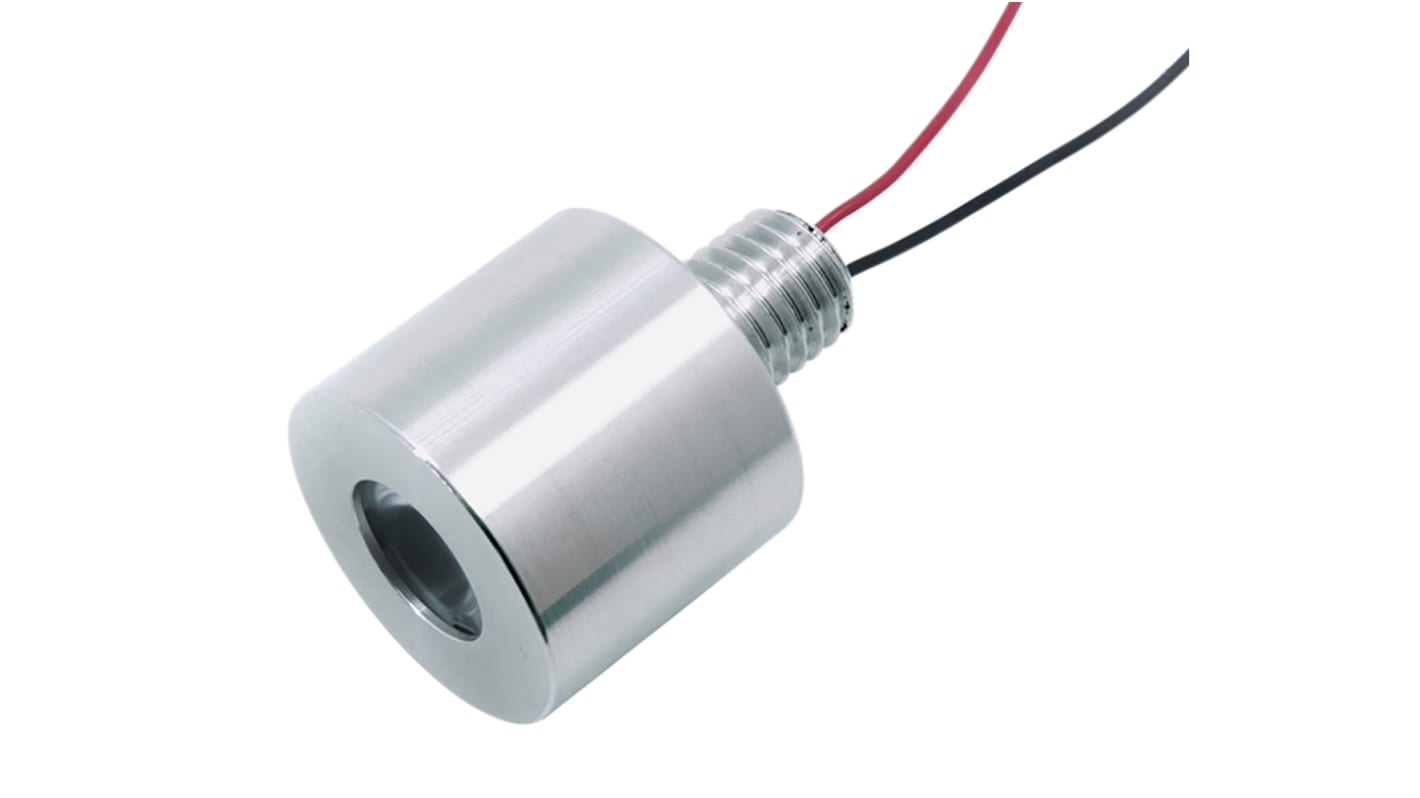

ILS OSLONeye LED Spotlight Modules
A range of compact mini-spotlights from ILS utilising Osram Opto OSLON SSL 80 ThinGan (UX:3) LEDs. These devices feature integrated heat-sinking with low thermal resistance to achieve cool running and high efficiency. An integral lens is used to produce a well-defined 12 degree beam angle and the threaded stud mounting ensures easy installation; connection is via 160mm flying leads. Typical applications for these mini-spotlights include cabinet, display and shelf lighting, accent and task lighting, and decorative retail lighting.
The ILS OSLONeye LED spotlight modules are available in a range of colours plus warm, neutral and cool white options. A kit version is also available allowing users to choose their own LED and LEDiL lens, see RS 122-5167.
• Ready-to-use module - simply apply power
• Operating current 50 to 700mA
• Integrated heat-sink and lens
• Up to 100,000 hour operating life to 70% of original brightness
• Mounting using integrated M12 threaded stud
• Compact size: 30mm diameter, 40mm overall length
• Supplied with 160mm connecting wires
Display/Accent Downlighters
