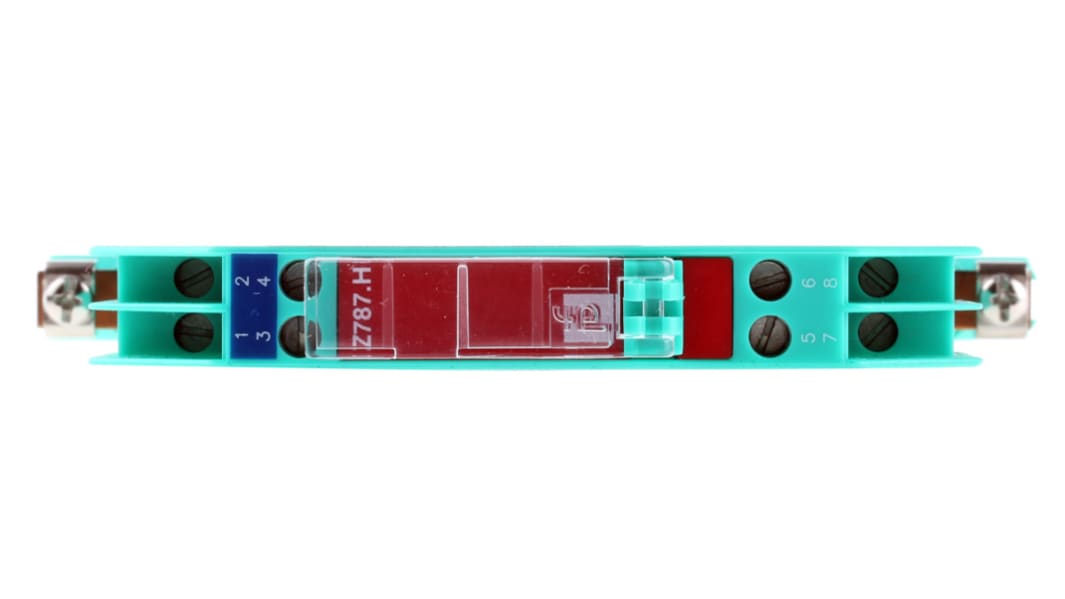

    Pepperl + Fuchs 2 Channel Zener Barrier, ATEX

    Pepperl + Fuchs
    RS-stocknr.:
    280-6585
    Fabrikantnummer:
    Z 787.H
    Fabrikant:
    Pepperl + Fuchs
    Bekijk deze categorie
    14 op voorraad - levertijd is 1 werkdag(en).
    Add to Basket
    Aantal stuks

    Toegevoegd

    Prijs Each

    € 145,60

    (excl. BTW)

    € 176,18

    (incl. BTW)

    Aantal stuksPer stuk
    1 +€ 145,60
    RS-stocknr.:
    280-6585
    Fabrikantnummer:
    Z 787.H
    Fabrikant:
    Pepperl + Fuchs

    Datasheets


    Wetgeving en compliance

    N.v.t.


    Productomschrijving

    Z787.H Dual Channel


    The solution for applications with 3-wire transmitters is implementing a combination of one 28V, 300Ω and one 28V barrier with diode return. Special consideration should be given to the internal voltage drop due to the diode return.,Typical application - 4-20mA transmit

    Certificate No.

    BAS 01 ATEX 7005

    Group and Category

    IIC Class 1, Div1, Groups A-G


    Isolation Barriers


    Pepperl+Fuchs shunt zener diode barriers are for use as safety interfaces between intrinsically safe and non-intrinsically safe circuits. They are manufactured from Makrolon® and designed to conduct electrical signals - in either direction - between safe and hazardous areas and to limit the amount of energy which can be transferred from a safe to a hazardous area in the event of fault conditions occurring in the safe area. All systems shown are licensed for [EEx ia] IIC Class 1, Div1, Groups A-G

    Specificaties

    Kenmerk
    Waarde
    Number of Channels2
    Module TypeZener Barrier
    Barrier TypeZener Barrier
    Maximum Voltage250V
    Hazardous Area CertificationATEX
    Safety Current Resistance250Ω
    Maximum Operating Temperature+60°C
    Minimum Operating Temperature-20°C
    Maximum Current120mA
    Supply Voltage28V dc
    Safety Current Maximum120mA
    Safety Voltage Maximum250 V
    Operating Temperature Range-20 → +60°C
