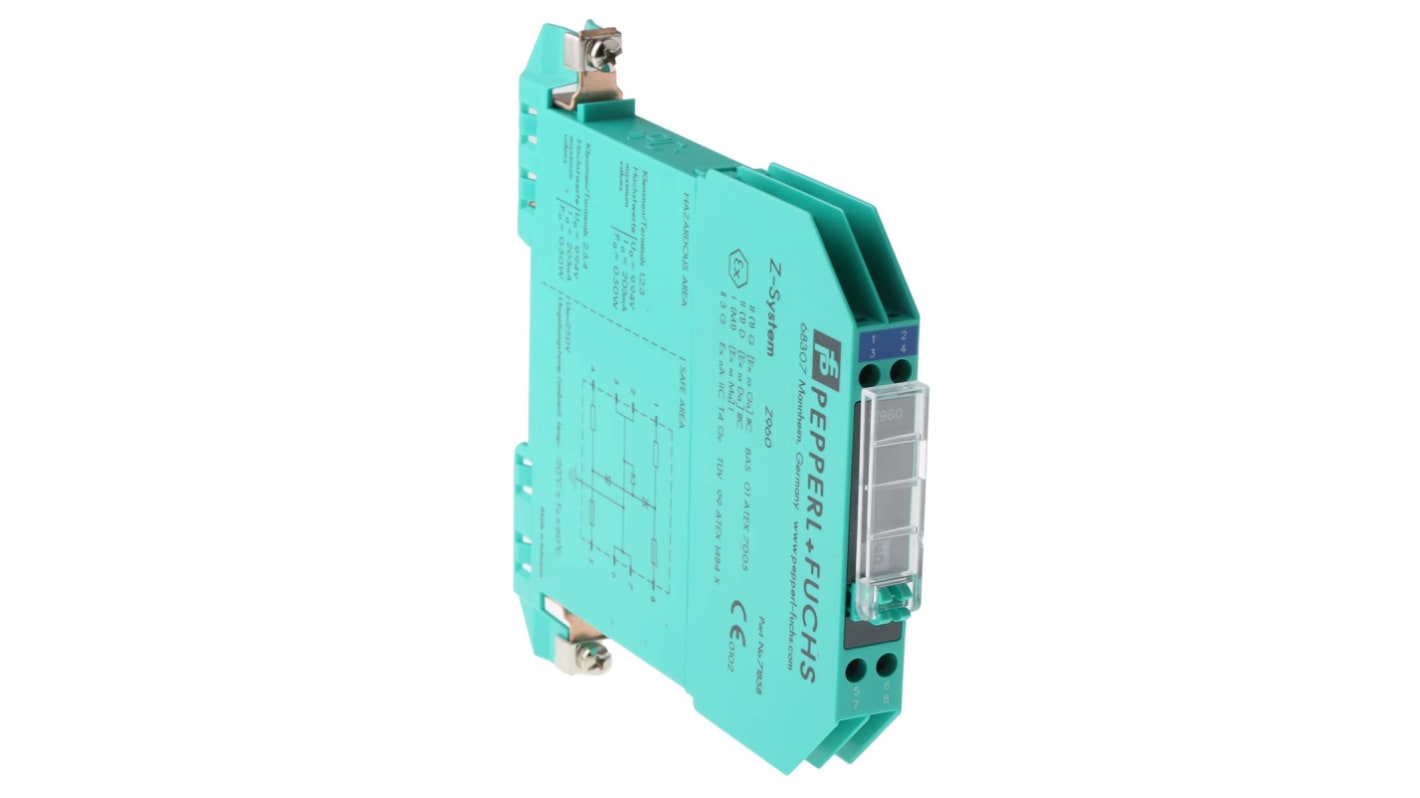

Pepperl + Fuchs 2 Channel Zener Barrier, ATEX
- RS-stocknr.:
- 280-6608
- Fabrikantnummer:
- Z 960
- Fabrikant:
- Pepperl + Fuchs
Bekijk deze categorie
5 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
7 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Prijs Each
€ 133,50
(excl. BTW)
€ 161,54
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 133,50 |
- RS-stocknr.:
- 280-6608
- Fabrikantnummer:
- Z 960
- Fabrikant:
- Pepperl + Fuchs
Datasheets
Wetgeving en compliance
N.v.t.
- Land van herkomst:
- ID
Productomschrijving
Z960 Dual Channel AC Powered
Using a dual channel barrier impedes a direct grounding of the intrinsically safe circuit. The ground is only made in the event of a failure, if the zener diodes conduct. This circuit also suppresses influences of external circuits.,Typical application - thermocouples
Certificate No.
BAS 01 ATEX 7005
Group and Category
IIC Class 1, Div1, Groups A-G
Isolation Barriers
Pepperl+Fuchs shunt zener diode barriers are for use as safety interfaces between intrinsically safe and non-intrinsically safe circuits. They are manufactured from Makrolon® and designed to conduct electrical signals - in either direction - between safe and hazardous areas and to limit the amount of energy which can be transferred from a safe to a hazardous area in the event of fault conditions occurring in the safe area. All systems shown are licensed for [EEx ia] IIC Class 1, Div1, Groups A-G
Specificaties
| Kenmerk | Waarde |
| Number of Channels | 2 |
| Module Type | Zener Barrier |
| Barrier Type | Zener Barrier |
| Maximum Voltage | 250V |
| Hazardous Area Certification | ATEX |
| Safety Current Resistance | 64Ω |
| Supply Voltage | 10V ac |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 203mA |
| Safety Current Maximum | 203mA |
| Safety Voltage Maximum | 250 V |
| Operating Temperature Range | -20 → +60°C |
