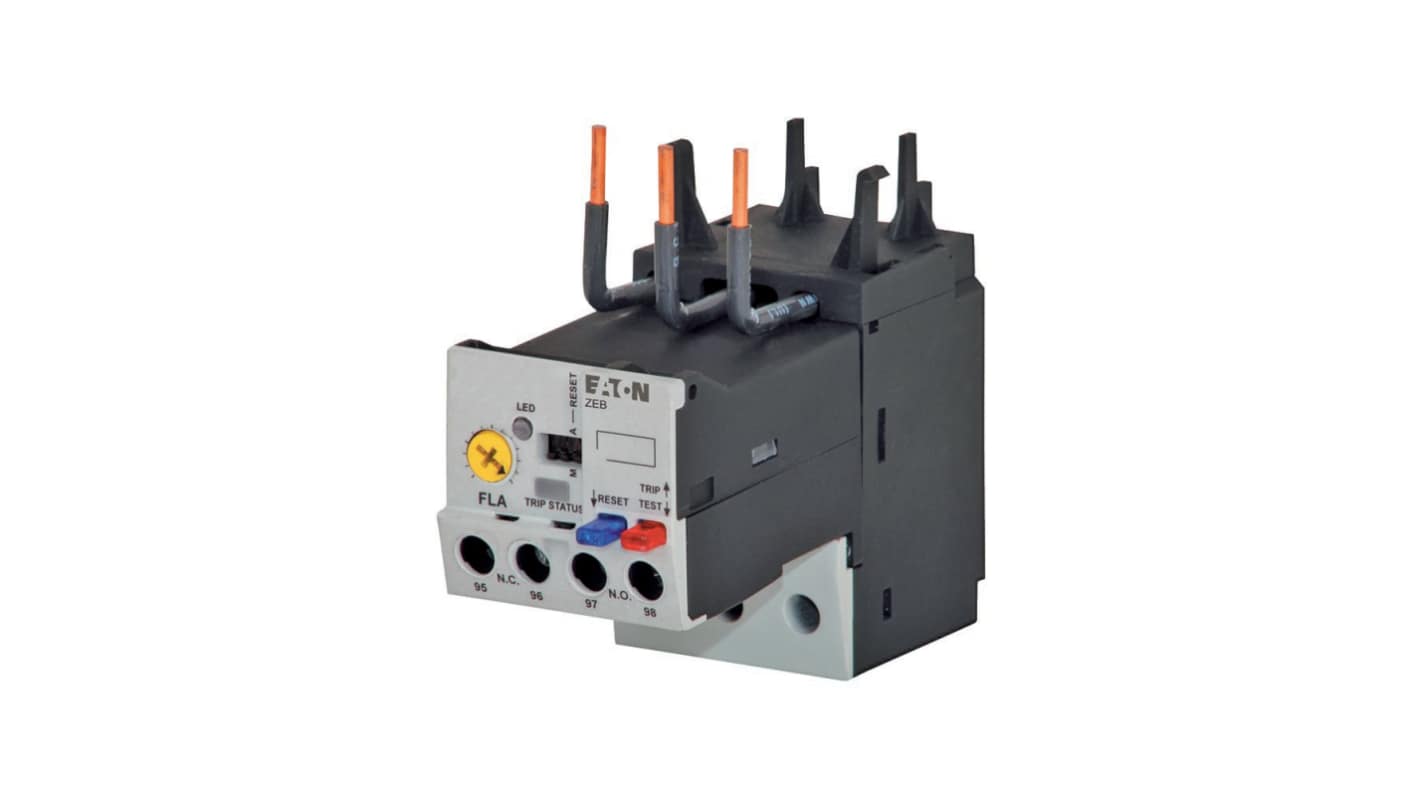

Eaton, ZEB Overload Relay 1 NO/1 NC, 45A, 9 A F.L.C, 45A Contact Rating, 690V 1P

RS-stocknr.:: 247-605
Fabrikantnummer:: 136493 ZEB32-45-GF
Fabrikant:: Eaton

Eaton, ZEB Overload Relay 1 NO/1 NC, 45A, 9 A F.L.C, 45A Contact Rating, 690V 1P

Subtotaal (1 eenheid)*

€ 241,00

(excl. BTW)

€ 291,61

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Voorradig bij de fabrikant

Klaar voor verzending vanaf 23 november 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 241,00

*prijsindicatie

RS-stocknr.:: 247-605
Fabrikantnummer:: 136493 ZEB32-45-GF
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	FLC Motor Rating	45, 9A
	Product Type	Overload Relay
	Relay Contact Current	45A
	Series	ZEB
	Mount Type	Direct
	Pole and Throw Configuration	1P
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	Reset Method	Push Button
	IP Rating	IP20
	Width	45mm
	Number of Auxiliary Contacts	2
	Adjustable Current Range	9 → 45 A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	65°C
	Length	108mm
	Depth	110mm
	Standards/Approvals	CE UL File No.:E1230 CSA Class No.:3211-03 VDE 0660 IEC/EN 60947 IEC/EN 60947-4-1 CSA CSA File No.:2290956 CSA-C22.2 No. 14 UL 508 UL Category Control No.:NKCR UL
	Control Voltage	690V

	Alles selecteren
	Merk Eaton
	FLC Motor Rating 45, 9A
	Product Type Overload Relay
	Relay Contact Current 45A
	Series ZEB
	Mount Type Direct
	Pole and Throw Configuration 1P
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	Reset Method Push Button
	IP Rating IP20
	Width 45mm
	Number of Auxiliary Contacts 2
	Adjustable Current Range 9 → 45 A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 65°C
	Length 108mm
	Depth 110mm
	Standards/Approvals CE UL File No.:E1230 CSA Class No.:3211-03 VDE 0660 IEC/EN 60947 IEC/EN 60947-4-1 CSA CSA File No.:2290956 CSA-C22.2 No. 14 UL 508 UL Category Control No.:NKCR UL
	Control Voltage 690V

Datasheet - 136493 ZEB32-45-GF

Vrijgesteld

Land van herkomst:: DO

The Eaton Moeller series ZEB Electronic overload relay is expertly designed for superior performance in electrical protection. With a current range of 9 to 45 A, this innovative device ensures effective overload and earth-fault protection. Its direct mounting feature simplifies installation, making it an ideal choice for compact panel designs. The relay adheres to rigorous safety standards, including IEC/EN 60947 and UL certifications, thereby ensuring reliable operation across various applications. This device also boasts a built-in phase-failure sensitivity, enhancing operational reliability, while the automatic resetting function optimises user convenience and efficiency. With a robust and compact design, this overload relay is perfectly suited for demanding industrial environments.

Offers automatic resetting for enhanced user ease

Designed for direct mounting, facilitating straightforward installation

Incorporates earth-fault protection for additional safety

Phase-failure sensitivity boosts operational reliability

Complies with rigorous international safety standards

Built to withstand ambient temperatures from -25 °C to 65 °C

Features a variety of auxiliary contact configurations for versatile applications

Constructed to minimise thermal rise, ensuring consistent performance

Designed for a pollution degree of 3, suitable for industrial use

Equipped with short-circuit protection for added reliability

Eaton, ZEB Overload Relay 1 NO/1 NC, 45A, 9 A F.L.C, 45A Contact Rating, 690V 1P
